Install the rear wall
Follow instructions in this section to install the rear wall. This procedure must be executed by a trained technician.
About this task
Attention
- Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
- Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
Procedure
Lower the rear wall and align it with the six alignment pins on the chassis; then, slide the rear wall forward toward the front of the server until it is seated in place.

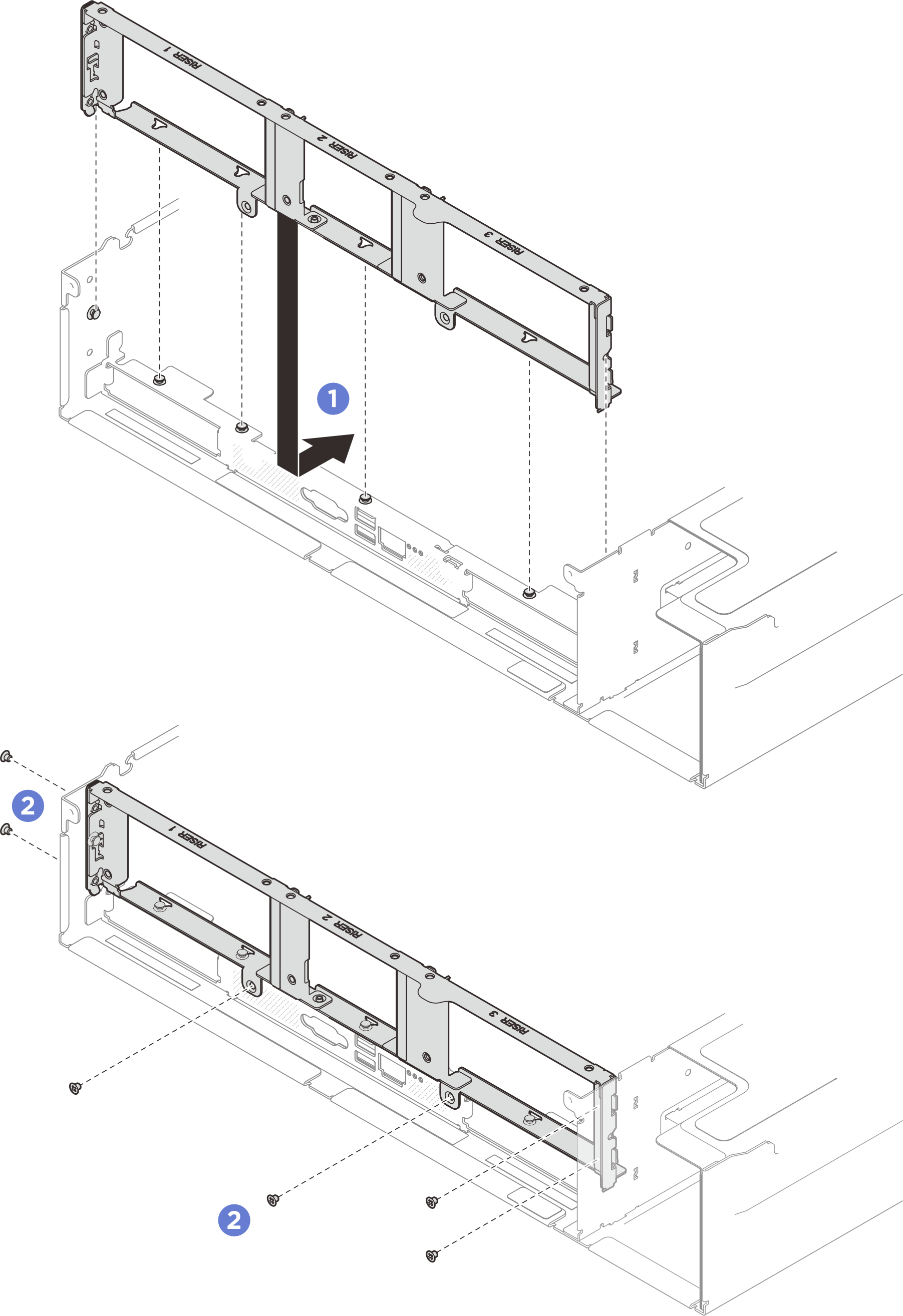

Fasten the six screws to secure the rear wall to the chassis.Figure 1. Rear wall installationNoteThe rear wall might look slightly different from the illustration.
After you finish
- Reinstall the PCIe risers. See Install a PCIe riser.
- Reinstall the rear top cover. See Install the rear top cover.
- Reinstall the front top cover. See Install the front top cover.
- Complete the parts replacement. See Complete the parts replacement.
