Remove an OCP module

Follow instructions in this section to remove an OCP module.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Procedure

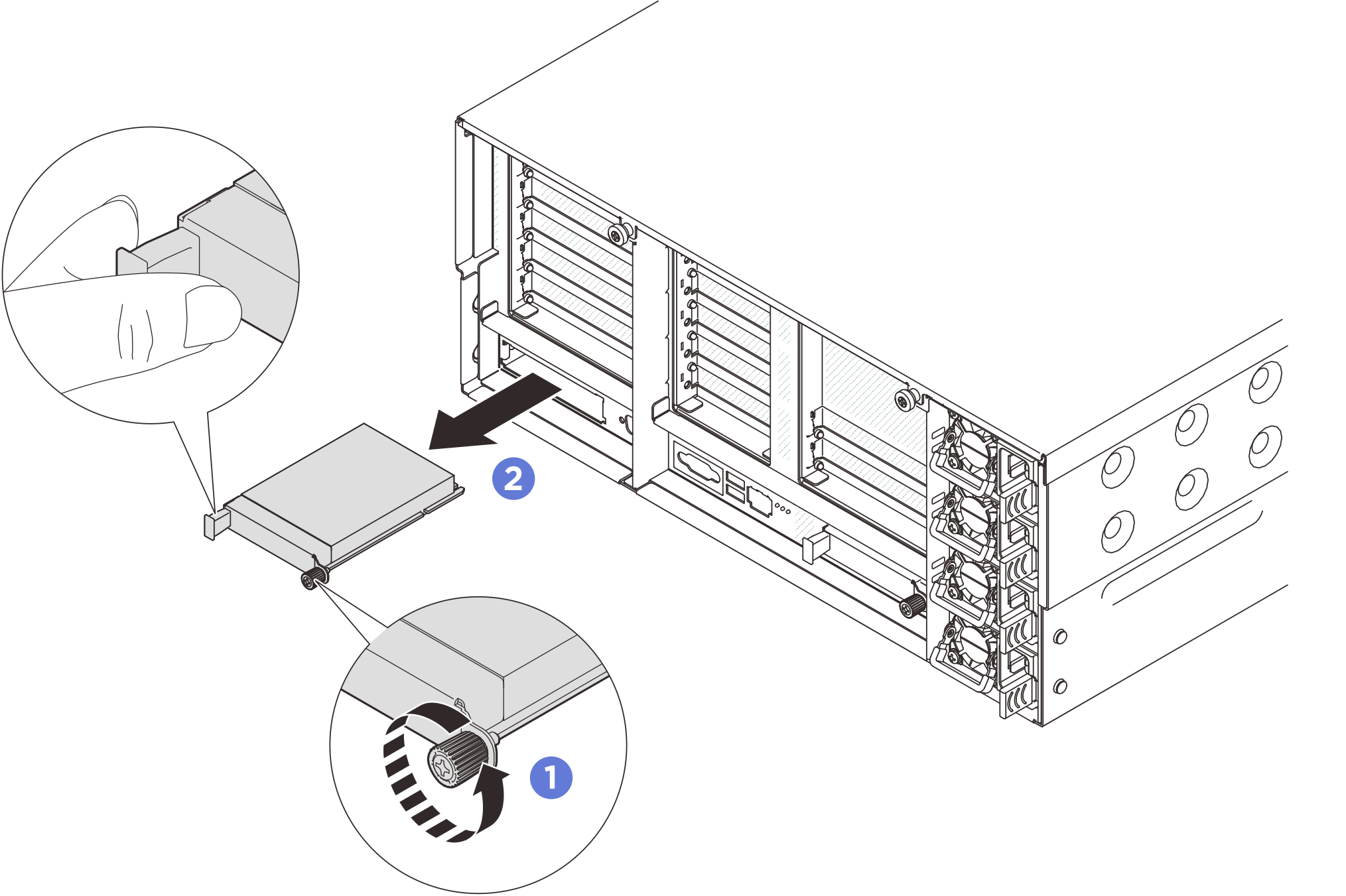

Figure 1. OCP module removal
OCP module removal

  1. Loosen the thumbscrew. Use a screwdriver if necessary.
  2. Grasp the handle and slide the OCP module out.

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
