Install an OCP module

Follow instructions in this section to install an OCP module.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Firmware and driver download: You might need to update the firmware or driver after replacing a component.

Procedure

  1. If the OCP is covered with a OCP filler, remove the filler from the chassis first.
  2. Install the OCP module.

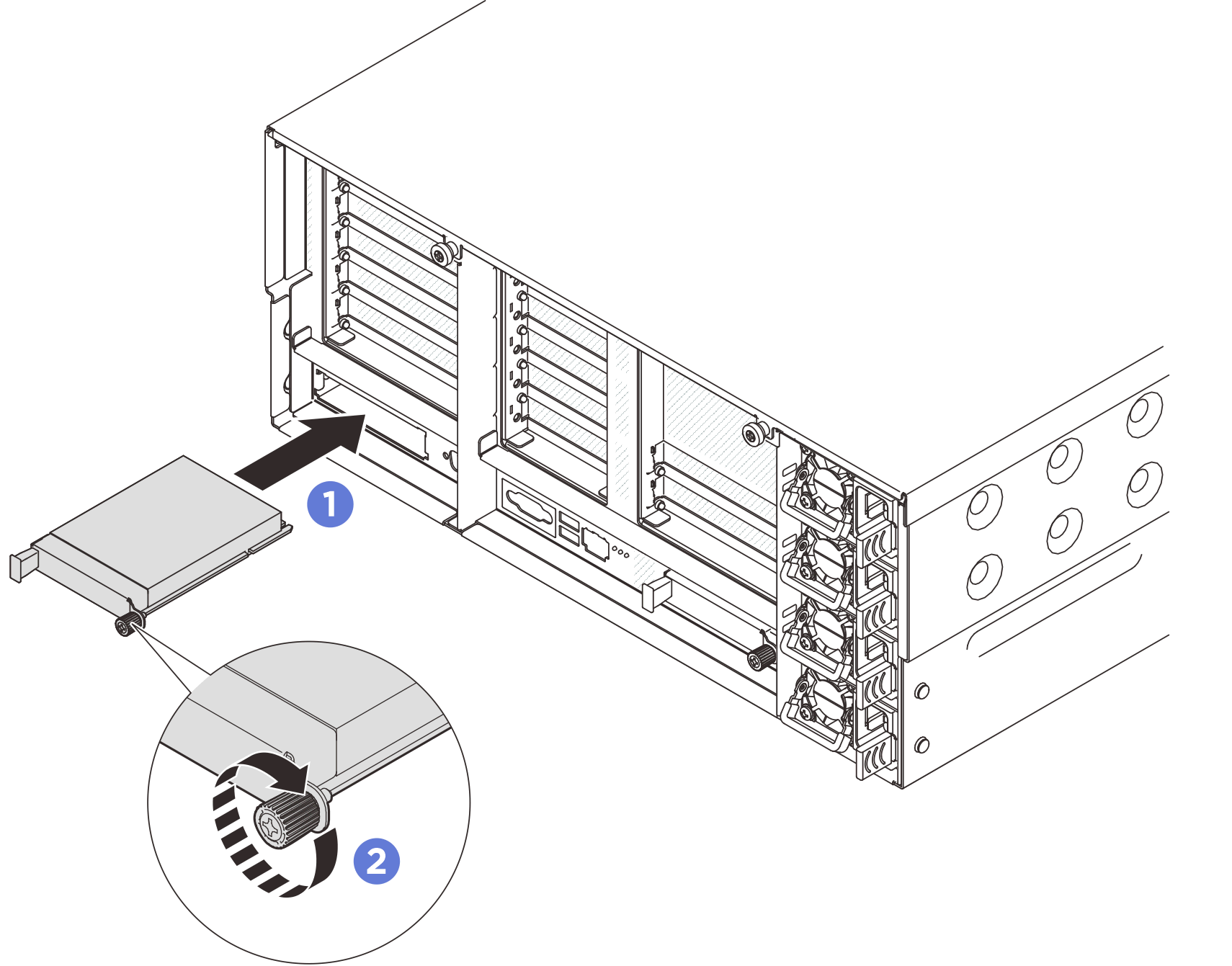

    Figure 1. OCP module installation
    OCP module installation
    1. Slide the OCP module into the slot until it is fully seated.
    2. Tighten the thumbscrew to secure the OCP module. Use a screwdriver if necessary.

After you finish

Complete the parts replacement. See Complete the parts replacement.
