Floor plan recommendation

This section provides floor plan recommendation for rack installed with N1380 enclosures.

When the rack is installed with N1380 enclosures, it is recommended that the rack sits within the space of two 600x600 mm floor tiles. Rack front and rear extension installed with rack doors will extend 180 mm in length outside of the occupied floor tile space.

1 Rack front extension installed with rack door
2 Rack rear extension installed with rack door
3 Raised floor

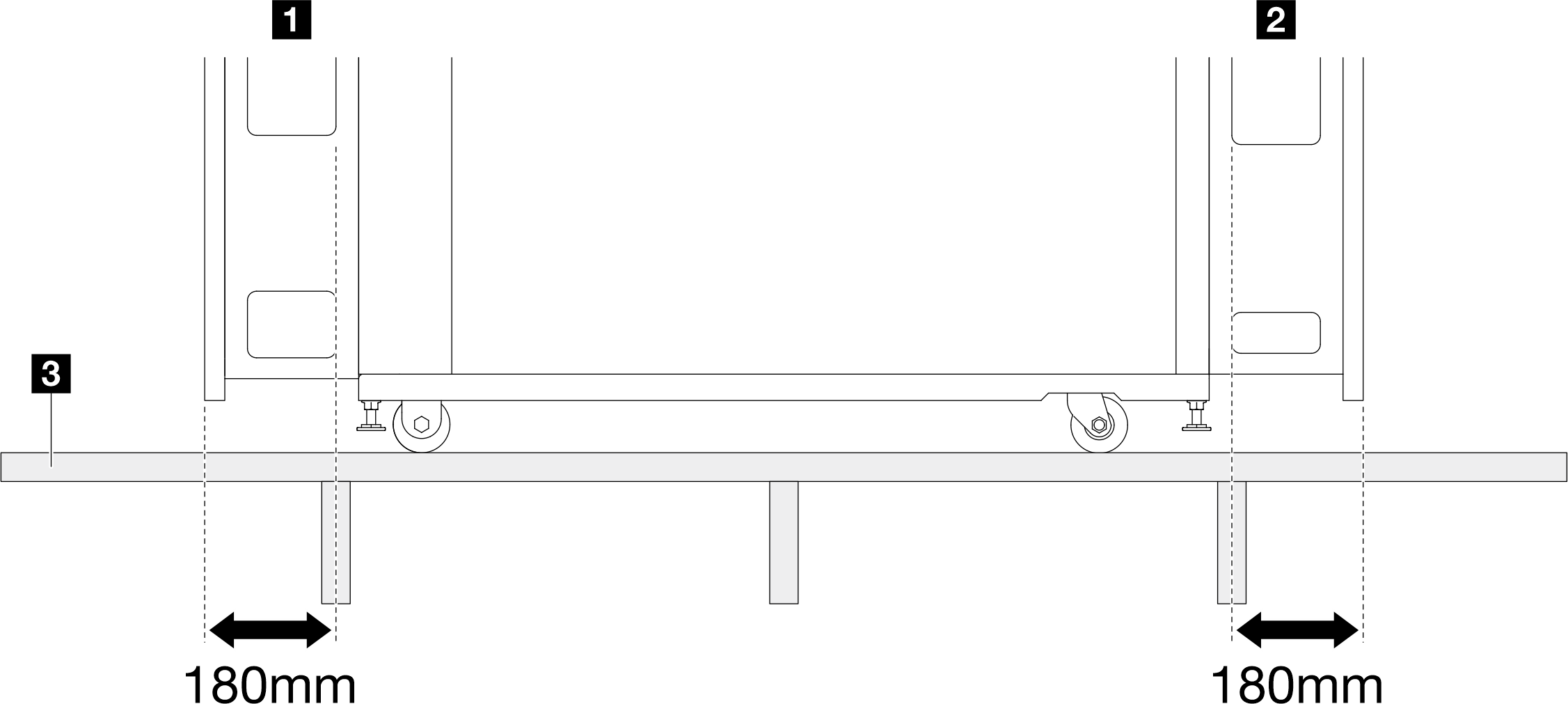

Figure 1. Floor plan recommendation
