Remove the rear I/O module

Procedure

1. Make preparations for this task.
   1. Power off the node (see Power off the node); then, disconnect all external cables from the node.
   2. Remove the node from the chassis (see Remove a node from the chassis); then, carefully lay the node on a flat, static-protective surface, orienting the node with the front toward you.
      Note

      • When removing the node, note the node tray number and make sure to install the node in the same tray from which it was removed. Reinstalling the node into a different tray requires the node to be reconfigured.
      • For safety, make sure to hold the node with both hands when lifting the node.
   3. Remove the top cover (see Remove the top cover).
   4. If the GPU air duct is installed in the node, remove it (see Remove the GPU air duct).
   5. If the PCIe riser assembly is installed, remove it from the node and disconnect the PCIe cables from the system board (see Remove the PCIe riser assembly and Internal cable routing).
2. Disconnect the cables from the rear I/O module.
   1. Loosen the screw that secures the grounding cable; then, remove the grounding cable from the rear I/O module.
   2. Disconnect the rear I/O cable from the rear I/O module.

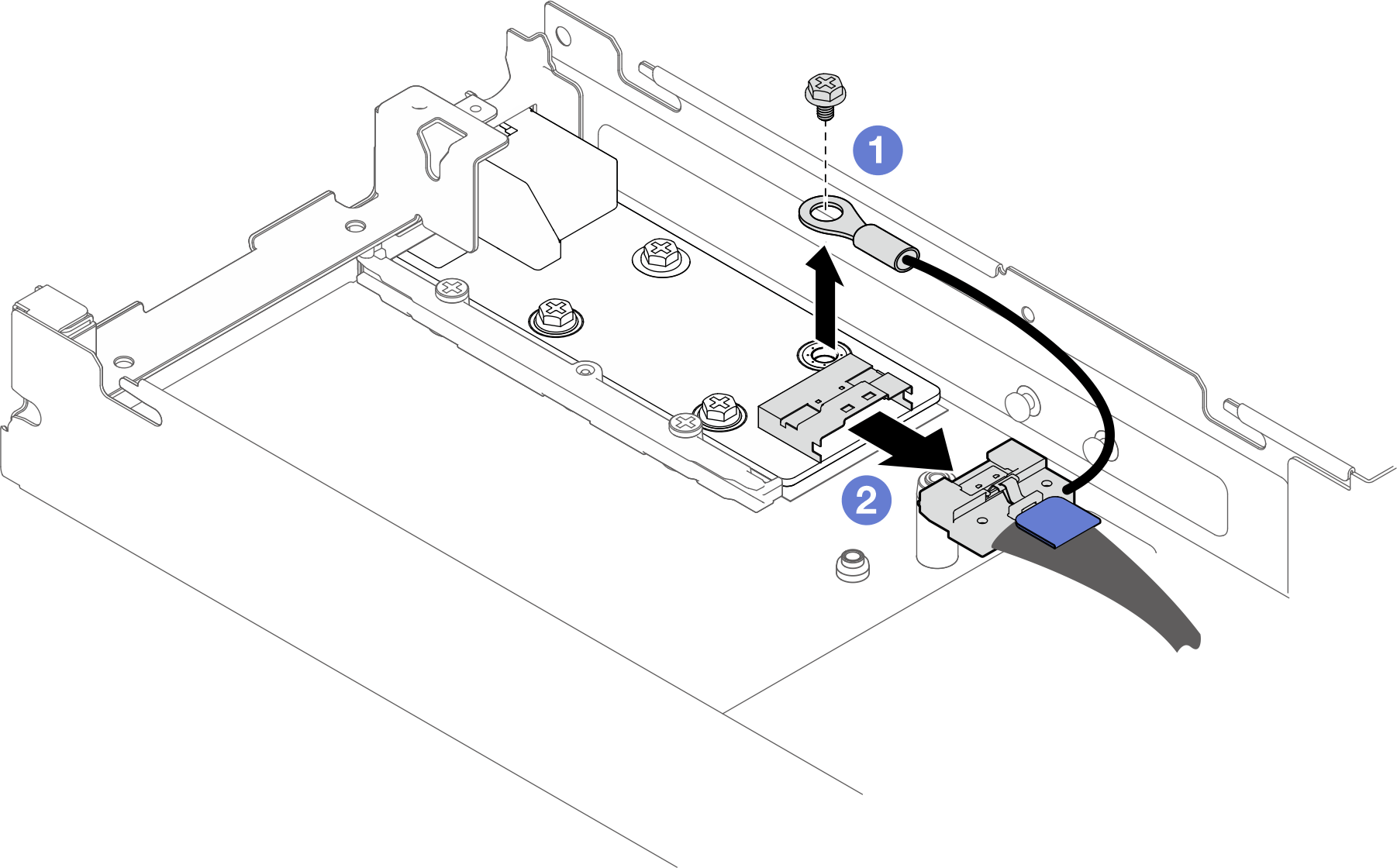

      Figure 1. Removal of the rear I/O cable and grounding cable


3. Remove the rear I/O module.
   1. Remove the three screws from the rear I/O module as illustrated.
   2. Slightly pull the rear I/O module toward the front of the node; then, lift it out of the node.

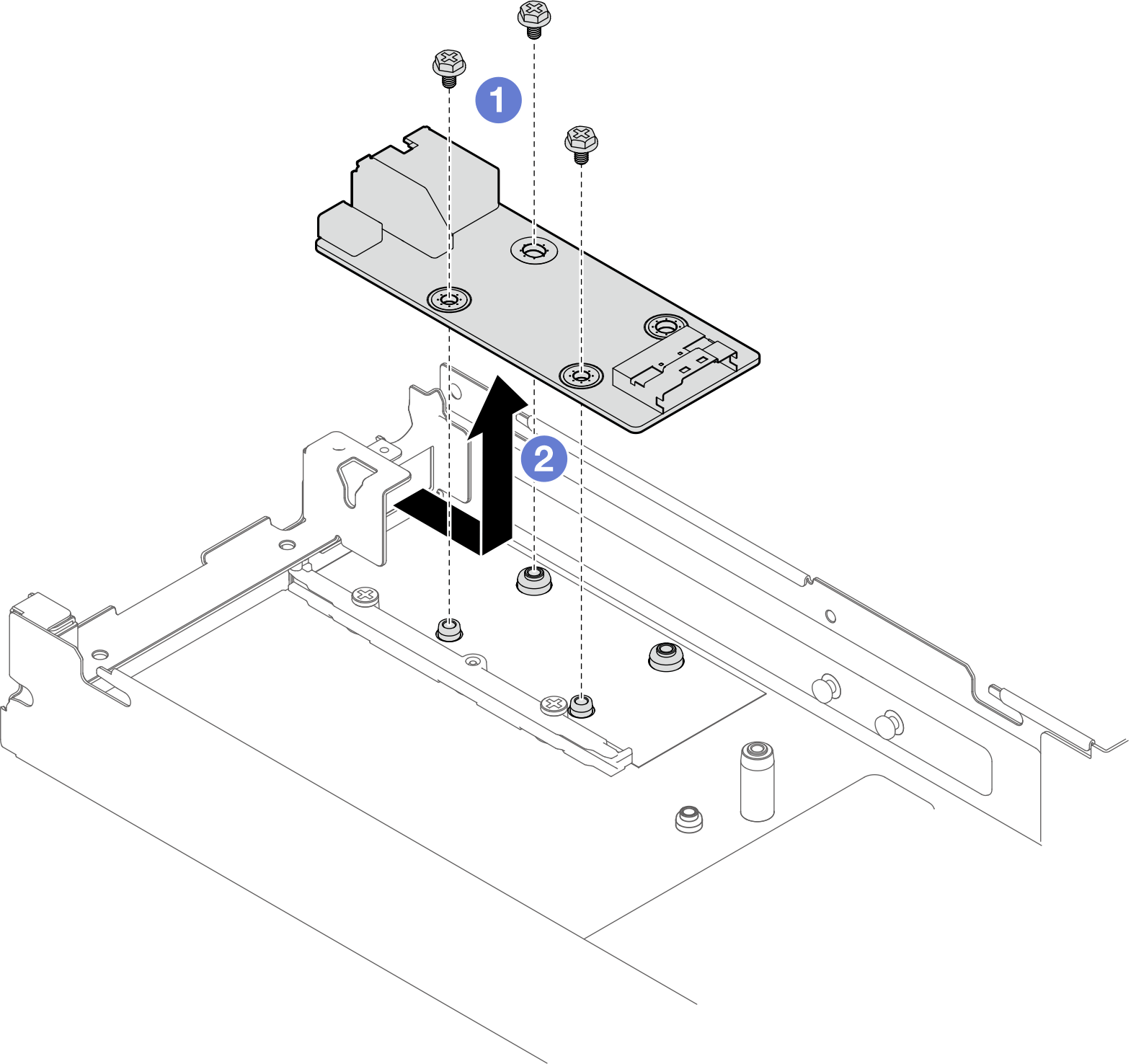

   Figure 2. Removal of the rear I/O module
