Enclosure front view

This section contains information about the controls, LEDs, and connectors on the front of the enclosure.

Note

  • The 1U2N enclosure can contain up to two ThinkEdge SE100 nodes with PCIe expansion kit while 1U3N can contain up to three ThinkEdge SE100 nodes, as show in the illustration below.

  • The node bay numbers are indicated on the side of the enclosure.

  • For more information and the connecting rules about the connectors on the server, see Server components.

  • Depending on the model, your server might look slightly different from the illustration.

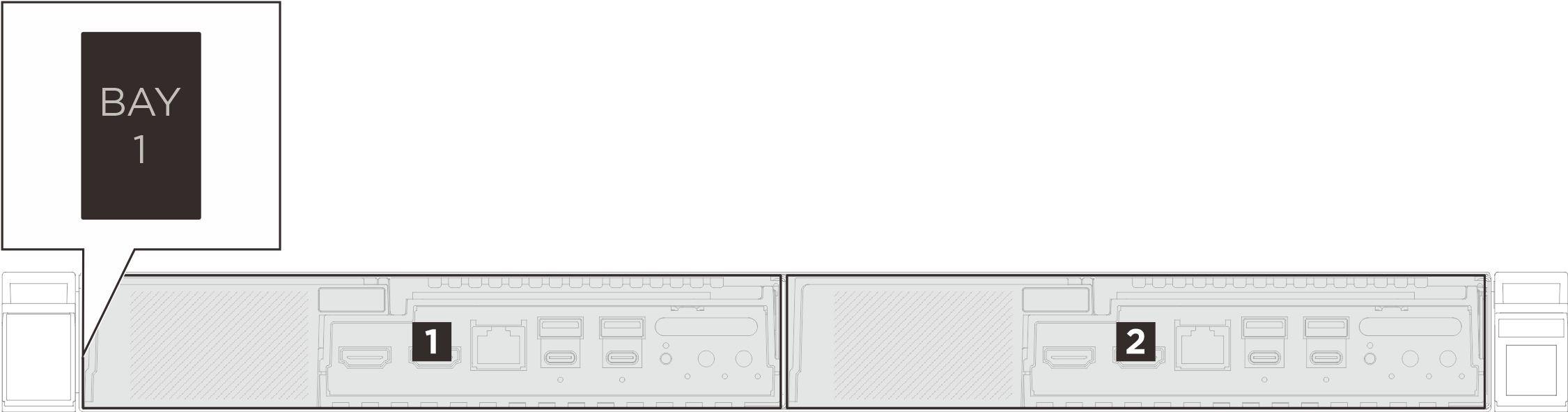

Figure 1. 1U2N enclosure front view

Table 1. 1U2N enclosure bay numbering
1 Bay 12 Bay 2

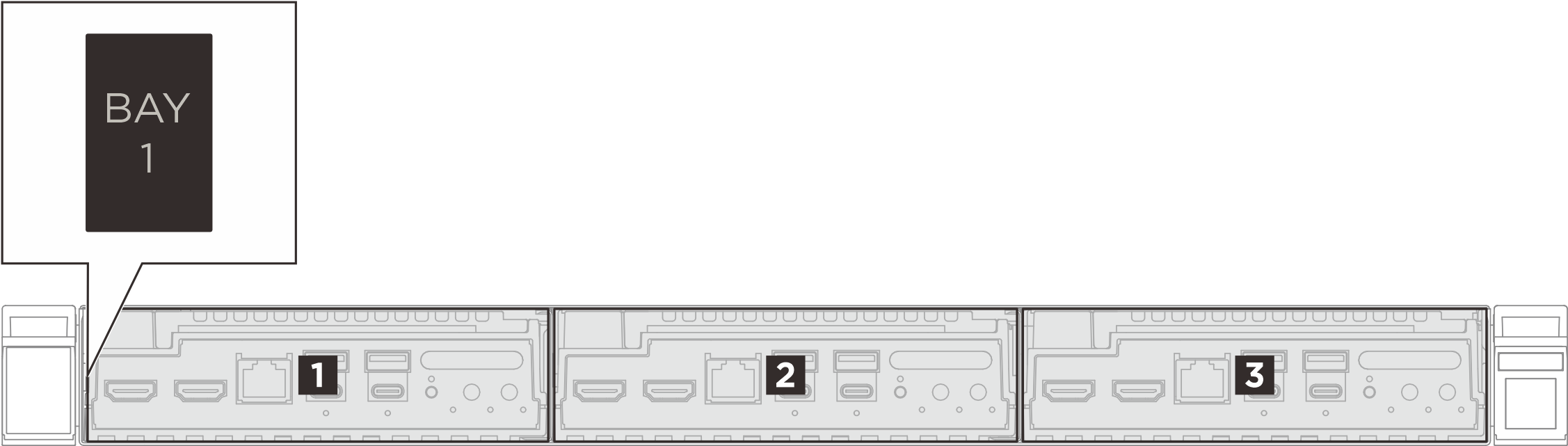

Figure 2. 1U3N enclosure front view

Table 2. 1U3N enclosure bay numbering
1 Bay 12 Bay 2
3 Bay 3
