Enclosure top view

The illustrations in this section provide information about the top view of the enclosure.

ThinkEdge SE100 1U3N Enclosure top view

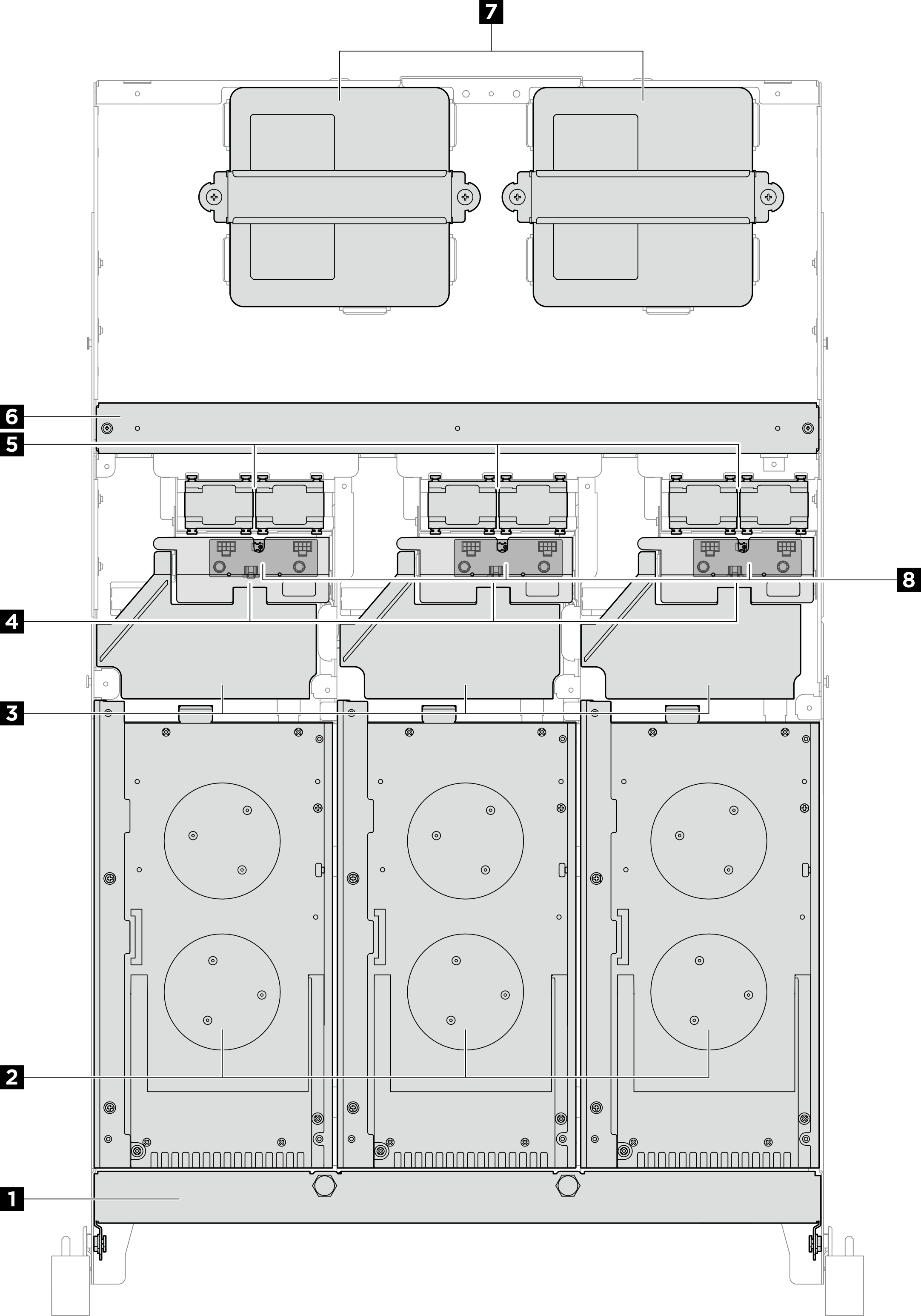

Figure 1. ThinkEdge SE100 1U3N Enclosure top view

Table 1. Components on the 1U3N Enclosure top view
1 Shipping bracket2 Nodes
3 Air baffles4 Safety covers
5 Fan modules6 Crossbar
7 300W power adapters8 Fan control boards

ThinkEdge SE100 1U2N Enclosure top view

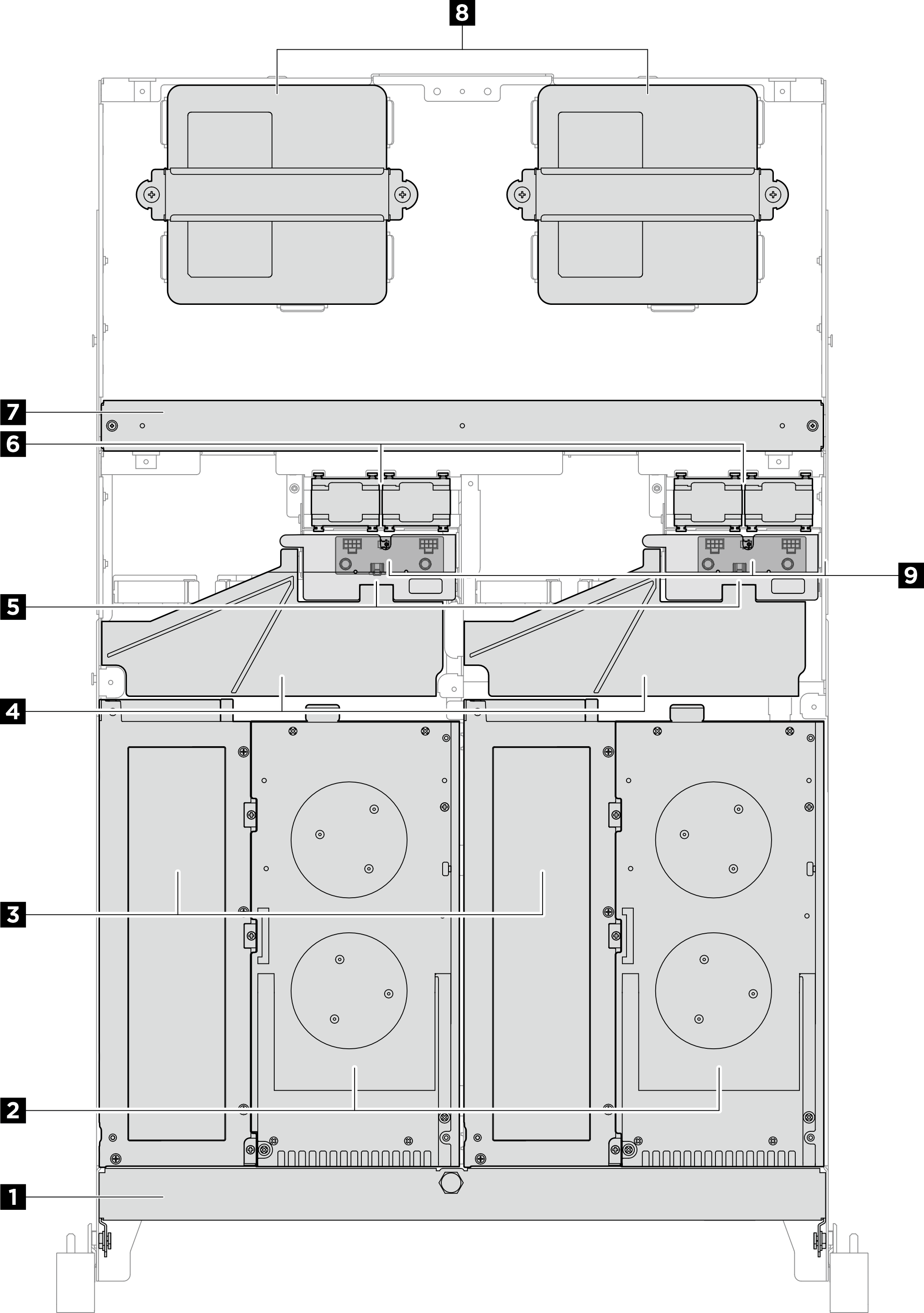

Figure 2. ThinkEdge SE100 1U2N Enclosure top view

Table 2. Components on the 1U2N Enclosure top view
1 Shipping bracket2 Nodes
3 Expansion kits4 Air baffles
5 Safety covers6 Fan modules
7 Crossbar8 300W power adapters
9 Fan control boards
