Remove the MicroSD card

Follow instructions in this section to remove the MicroSD card. The procedure must be executed by a trained technician.

Procedure

1. Make preparation for this task.
   1. Pull the system shuttle to the stop position.
      1. Press the two blue release latches.
      2. Rotate the two release levers until they are perpendicular to the shuttle.
      3. Pull the shuttle forward until it stops.
         Important

         To avoid damage, push the two release levers back and ensure they lock into place after extending the system shuttle to its stop position.
         Figure 1. Pulling the system shuttle to the stop position


   2. If applicable, remove the PCIe riser assembly 2. See Remove a PCIe riser assembly.
2. Remove the MicroSD card.
   1. Slide the socket lid to the open position.
   2. Lift open the socket lid.
   3. Remove the MicroSD card from the socket.

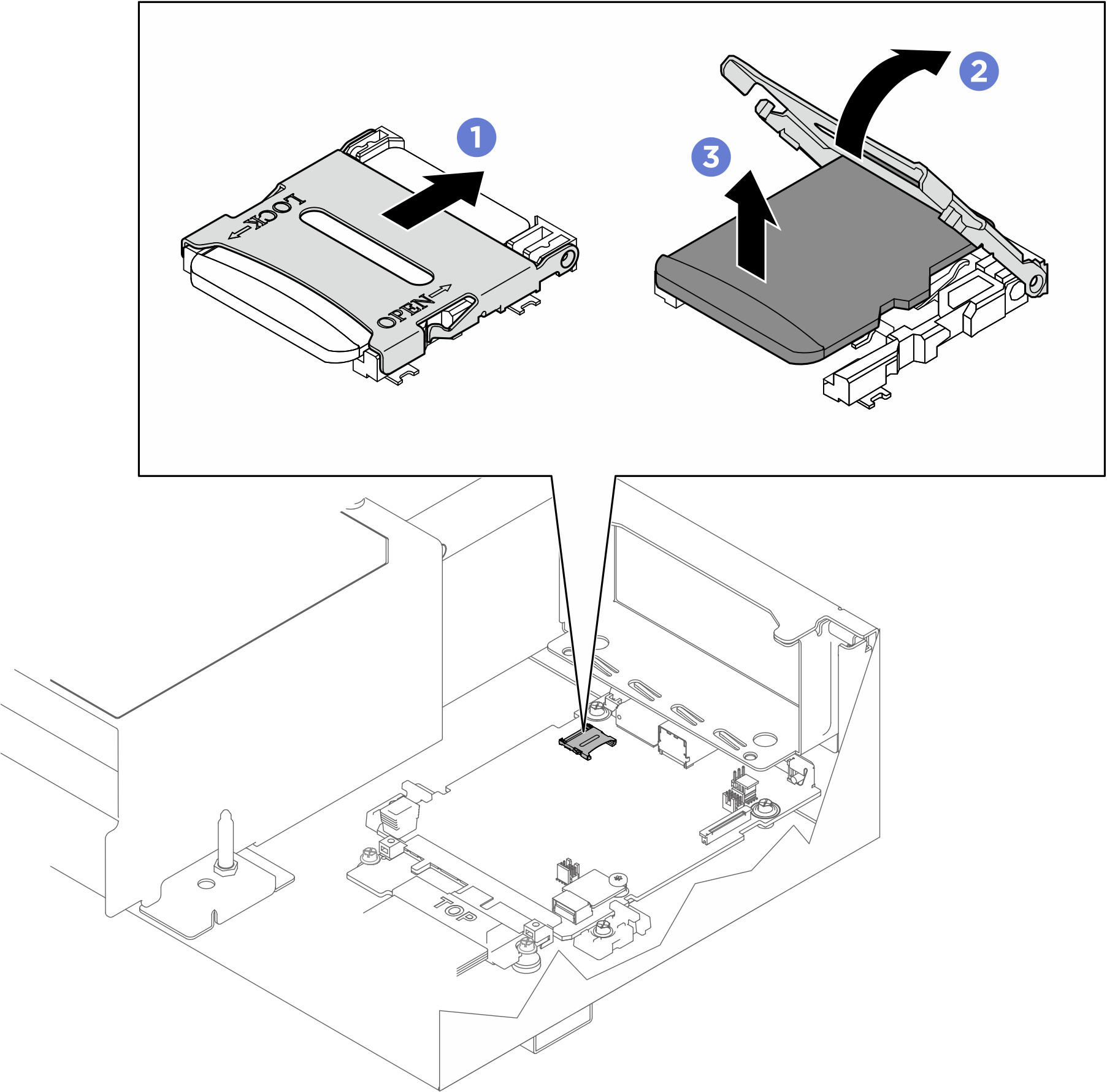

      Figure 2. MicroSD card removal
