Install the MicroSD card

Follow instructions in this section to install the MicroSD card. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

  1. Place the MicroSD card into the socket.
  2. Close the socket lid.
  3. Slide the socket lid to the lock position.

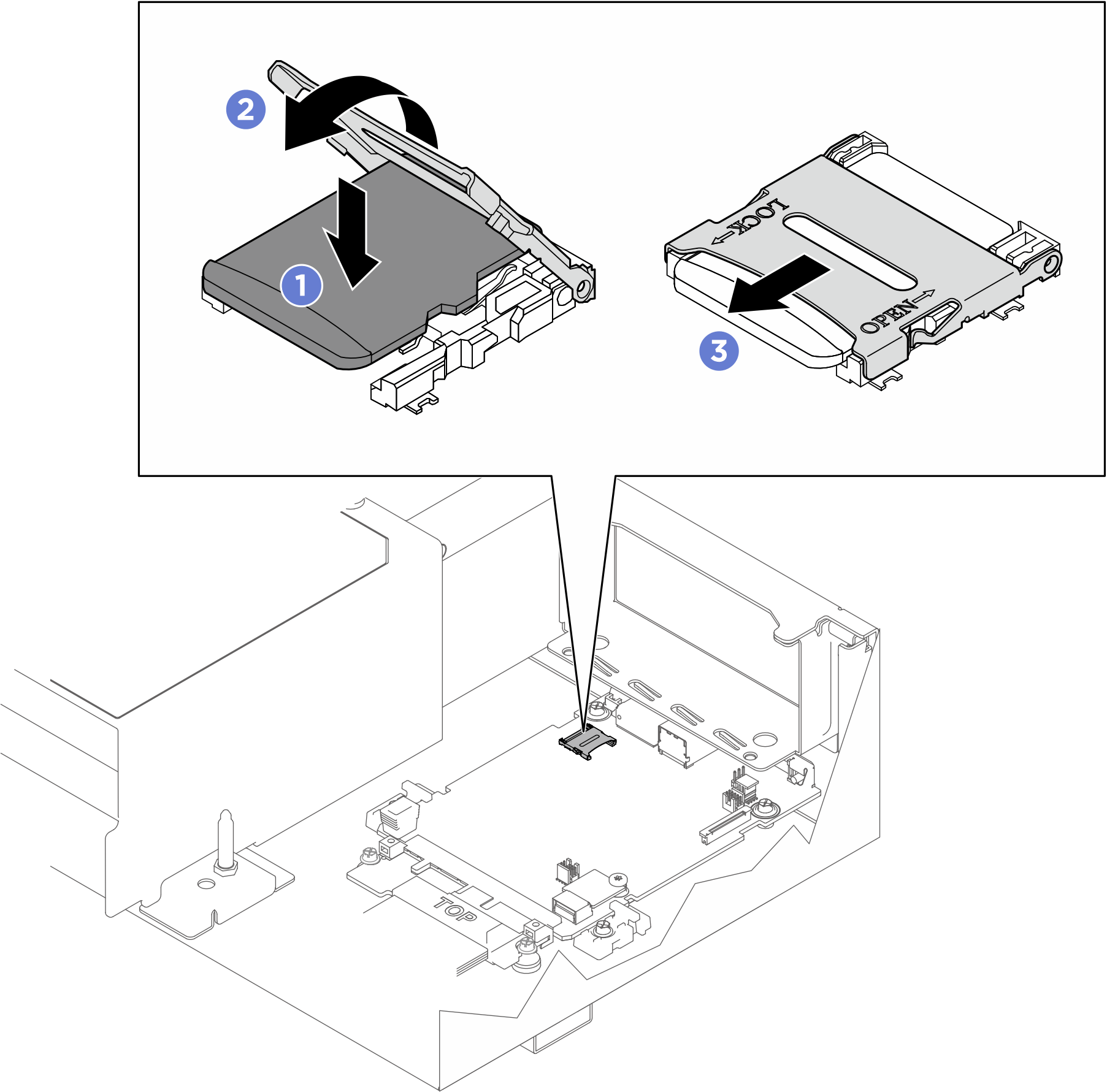

    Figure 1. MicroSD card installation
    MicroSD card installation

After you finish

  1. If applicable, reinstall the PCIe riser assembly 2. See Install a PCIe riser assembly.
  2. Push the system shuttle fully into the chassis.
    1. Lift the two lock latches on both sides of the shuttle.
    2. Slide the shuttle into the chassis.
    3. Push the shuttle fully into the chassis.
    4. Rotate the two release levers until they lock into place.
    Figure 2. System shuttle installation
    System shuttle installation

    System shuttle installation
  3. Complete the parts replacement. See Complete the parts replacement.
