Kabelführung der Rückwandplatine für 2,5‑Zoll-Laufwerke

Verwenden Sie diesen Abschnitt, um die Kabelführung für die Rückwandplatine für 2,5‑Zoll‑Laufwerke zu verstehen.

Wählen Sie je nach Position der Rückwandplatine für Laufwerke den entsprechenden Kabelführungsplan aus:

Rückwandplatine 1

Anmerkung
Achten Sie darauf, das Netzkabel wie angegeben durch die Kabelklemme zu führen.

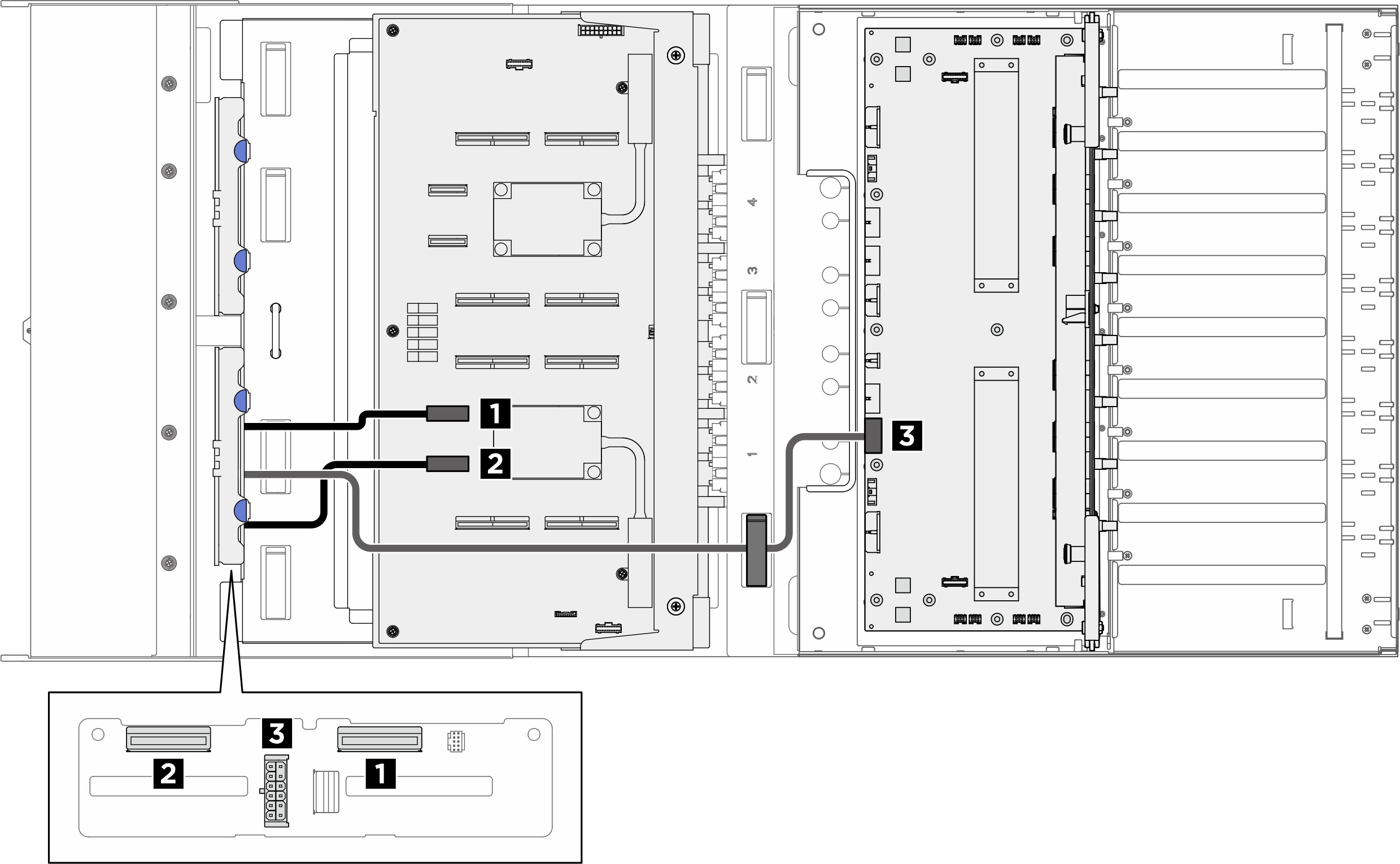

Abbildung 1. Kabelführung für Rückwandplatine 1
Backplane 1 cable routing
KabelVomBisEtikett
1Rückwandplatine 1: NVMe-Anschluss 0-1PCIe-Switch-Platine: NVMe-Anschluss 1 (NVME1)
  • NVME 0-1
  • NVME 1
2Rückwandplatine 1: NVMe-Anschluss 2-3PCIe-Switch-Platine: NVMe-Anschluss 2 (NVME2)
  • NVME 2-3
  • NVME 2
3Rückwandplatine 1: NetzteilanschlussStromversorgungsplatine: Stromanschluss der Rückwandplatine 1 (BP1 PWR)
  • BP1 PWR
  • BP1 PWR

Rückwandplatine 2

Anmerkung
Achten Sie darauf, das Netzkabel wie angegeben durch die Kabelklemme zu führen.

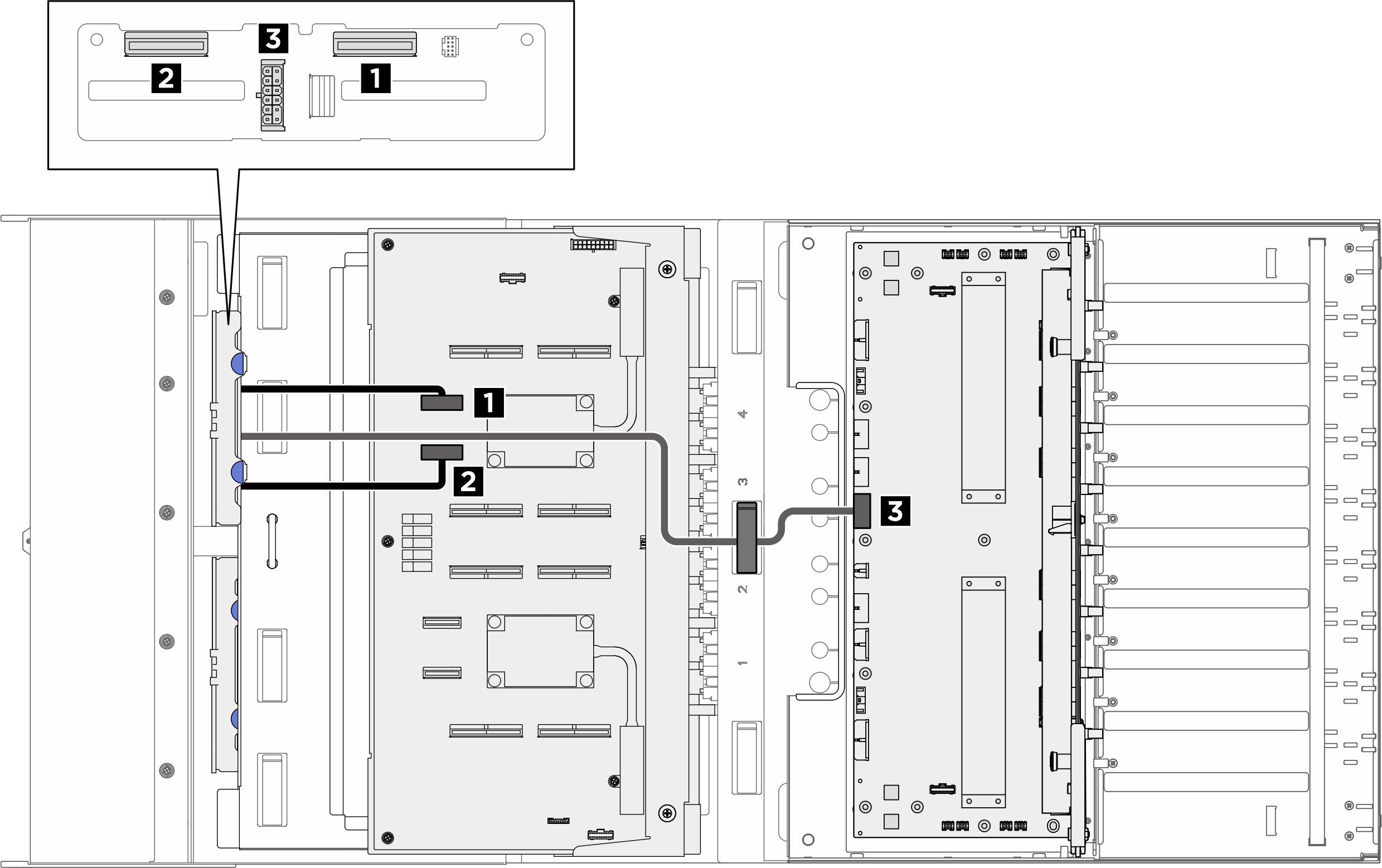

Abbildung 2. Kabelführung für Rückwandplatine 2
Backplane 2 cable routing
KabelVomBisEtikett
1Rückwandplatine 2: NVMe-Anschluss 0-1PCIe-Switch-Platine: NVMe-Anschluss 3 (NVME3)
  • NVME 0-1
  • NVME 3
2Rückwandplatine 2: NVMe-Anschluss 2-3PCIe-Switch-Platine: NVMe-Anschluss 4 (NVME4)
  • NVME 2-3
  • NVME 4
3Rückwandplatine 2: NetzteilanschlussStromversorgungsplatine: Stromanschluss der Rückwandplatine 2 (BP2 PWR)
  • BP2 PWR
  • BP2 PWR
