Install the MicroSD card

Follow instructions in this section to install the MicroSD card. This procedure must be executed by a trained technician.

About this task

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Figure 1. MicroSD card location

Procedure

1. Touch the static-protective package that contains the new part to any unpainted surface on the outside of the server; then, take the new part out of the package and place it on a static-protective surface.
2. Install the MicroSD card into the socket.
   Note

   • If replacing with a new MicroSD card, the firmware historical data and user data stored in the defective MicroSD card would be lost. After a new MicroSD card is installed, subsequent firmware update history will be saved to the new card.

   • To update firmware, refer to Updating Server Firmware section in Lenovo XClarity Controller 3.

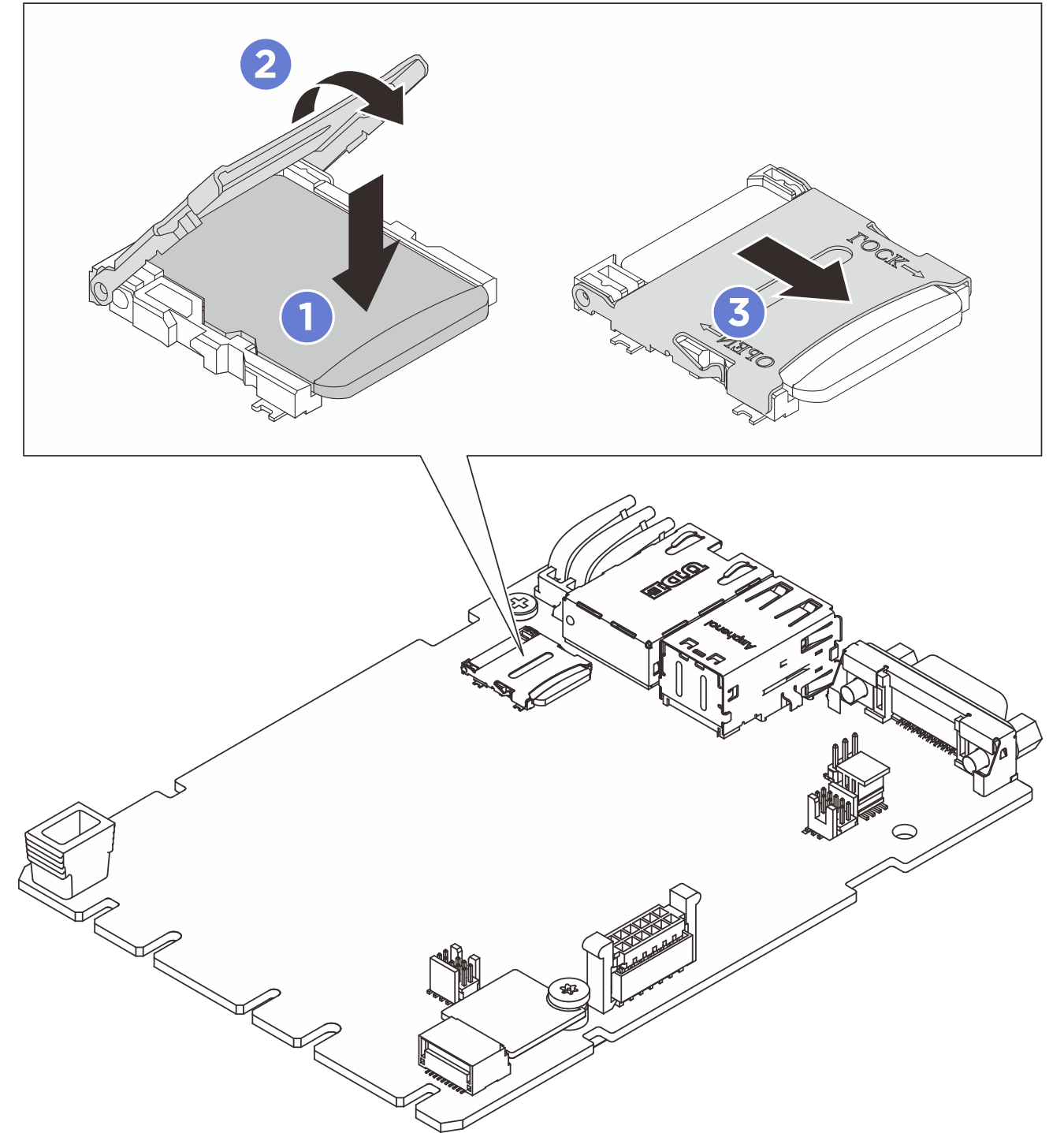

   Figure 2. MicroSD card installation


   1. Place the MicroSD card into the socket.
   2. Close the socket lid.
   3. Slide the socket lid to the lock position.
