Install the front top cover

Follow instructions in this section to install the front top cover.

About this task

S014

CAUTION

Hazardous voltage, current, and energy levels might be present. Only a qualified service technician is authorized to remove the covers where the label is attached.

S033

CAUTION

Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in spattered metal, burns, or both.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
• Make sure that all cables, adapters, and other components are installed and seated correctly and that you have not left loose tools or parts inside the server.
• Make sure that all internal cables are correctly routed. See Internal cable routing.

Procedure

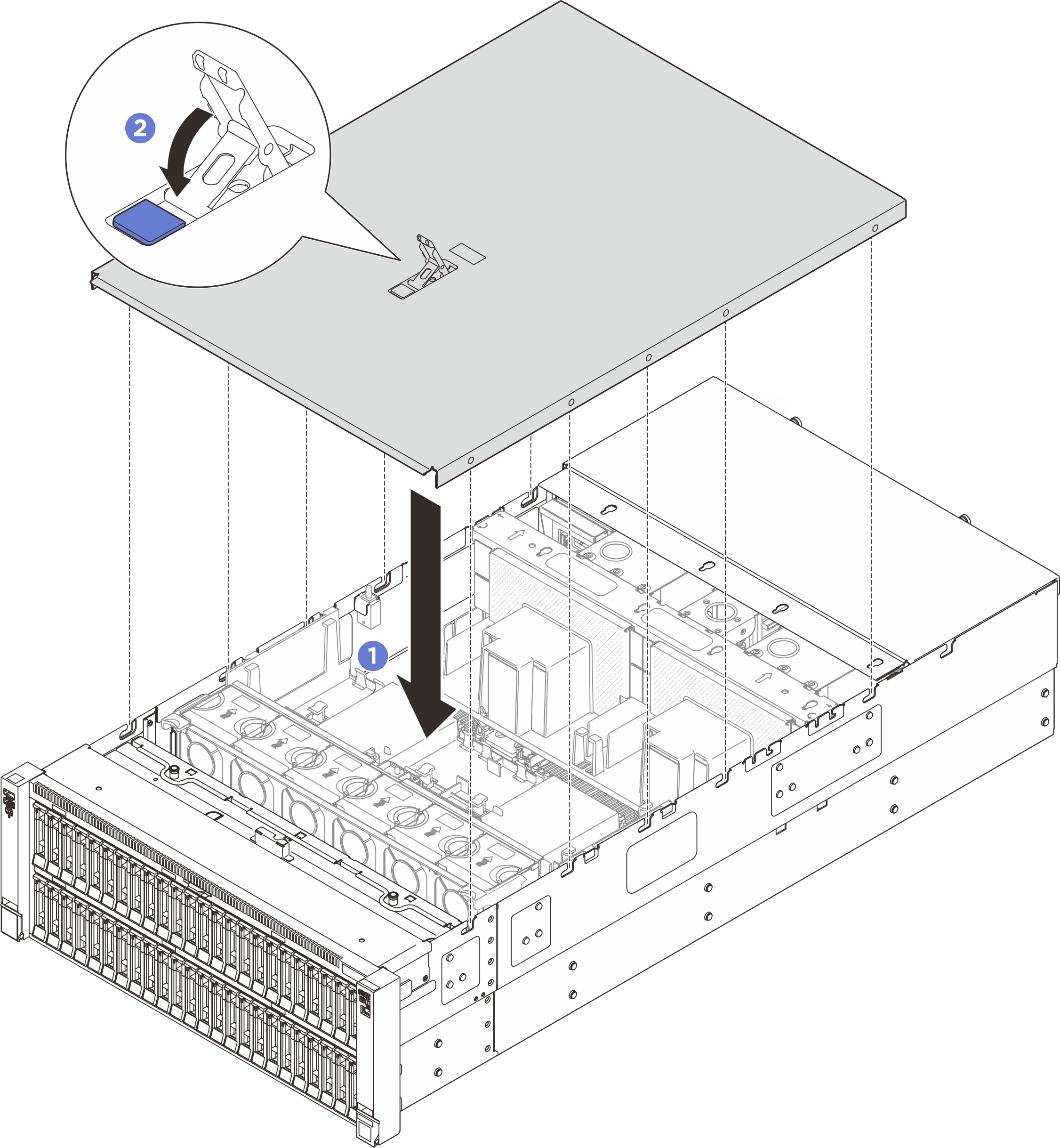

Figure 1. Front top cover installation

1. Align the front top cover guide pins with the guide holes on the chassis; then place the front top cover on top of the server with both sides aligned.
2. Rotate the latch down until it stops.
3. (Optional) Lock the front top cover with a screwdriver.

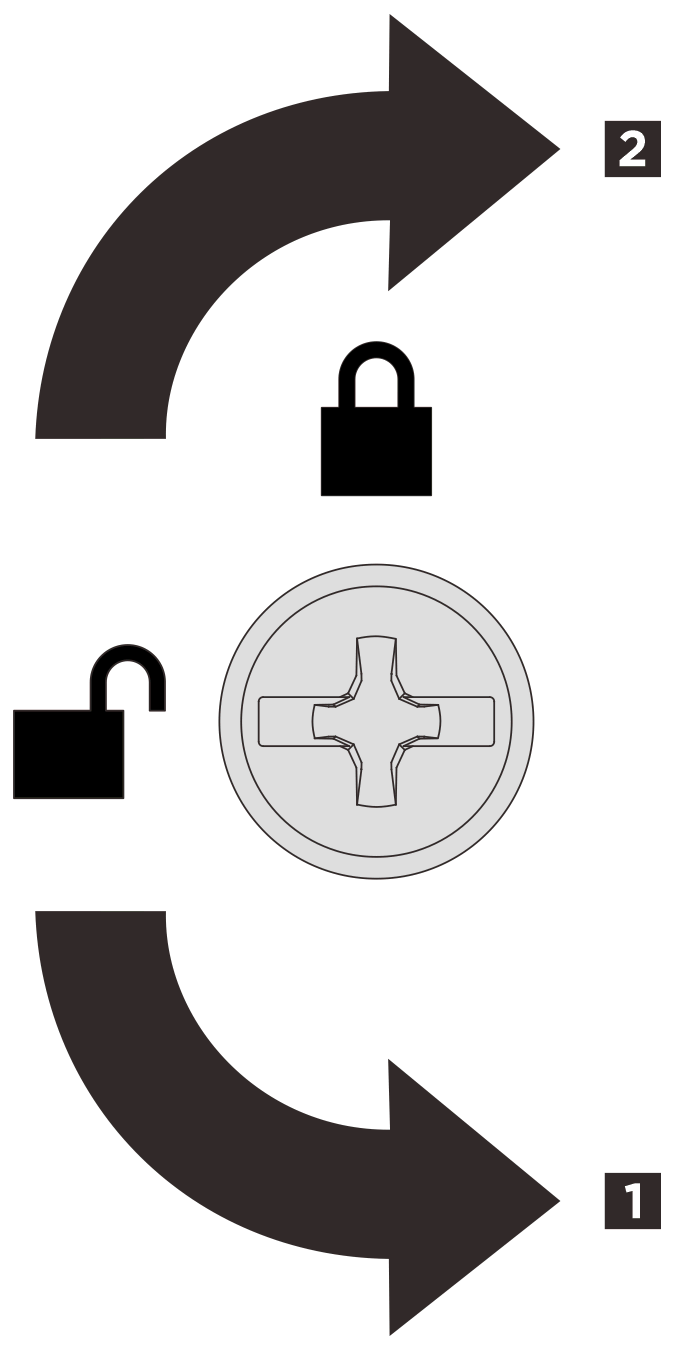

   Figure 2. Front top cover locking/unlocking direction

   1 Unlocking direction 2 Locking direction
