Install the rear top cover

Follow instructions in this section to install the rear top cover.

S014

CAUTION

Hazardous voltage, current, and energy levels might be present. Only a qualified service technician is authorized to remove the covers where the label is attached.

S033

CAUTION

Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in spattered metal, burns, or both.

About this task

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
• Make sure that all cables, adapters, and other components are installed and seated correctly and that you have not left loose tools or parts inside the server.
• Make sure that all internal cables are correctly routed. See Internal cable routing.

Procedure

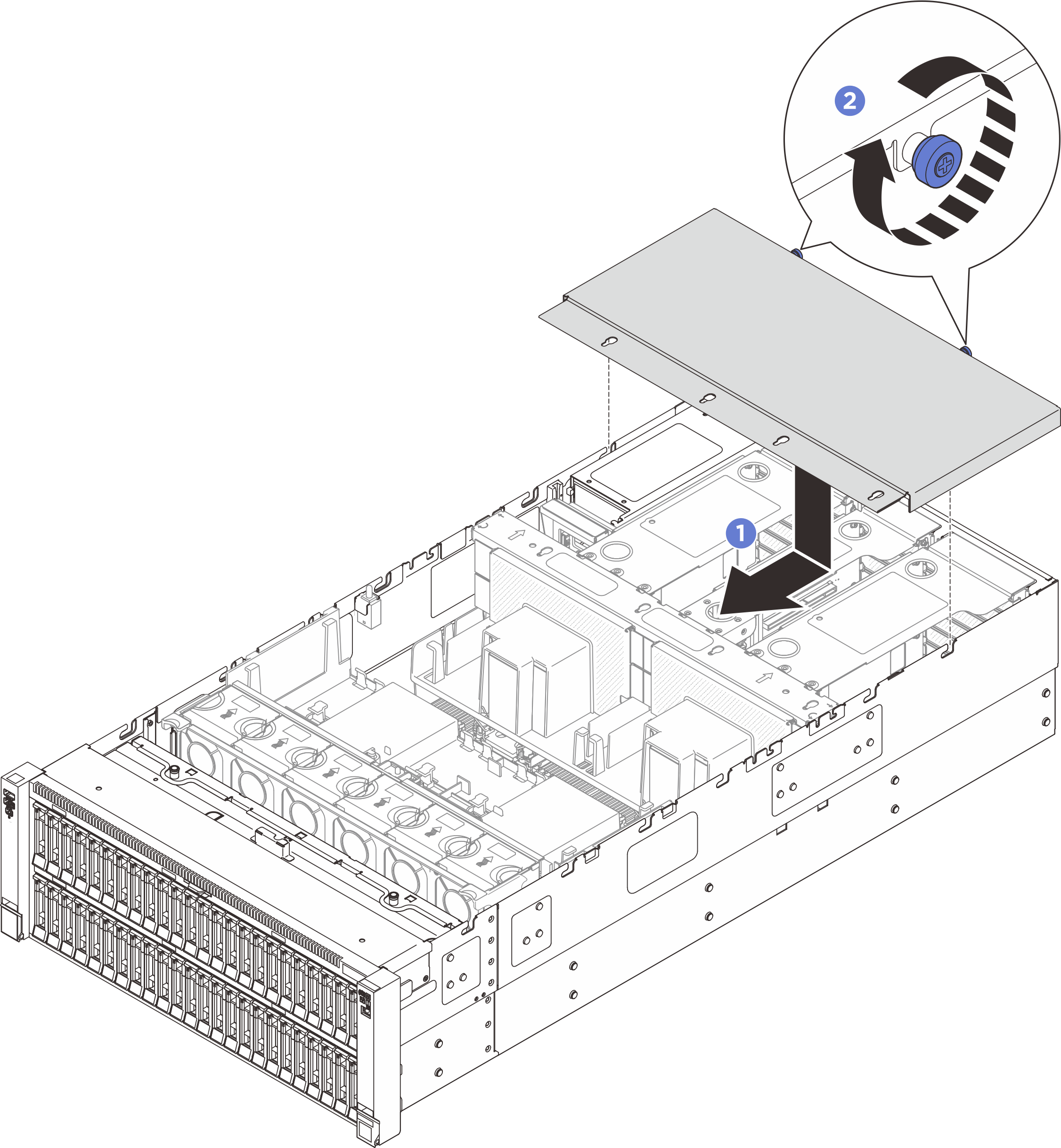

Figure 1. Rear top cover installation

1. Align the rear top cover guide pins with the guide holes on the chassis; then place the rear top cover on top of the server and slide it towards the front of the server until it engages with the chassis.
2. Secure the two thumbscrews on the rear of the server.
