Enclosure rear view and Power Conversion Station (PCS) slot numbering
Use this information to identify the components in the rear of the enclosure and the Power Conversion Station (PCS) slot numbering.

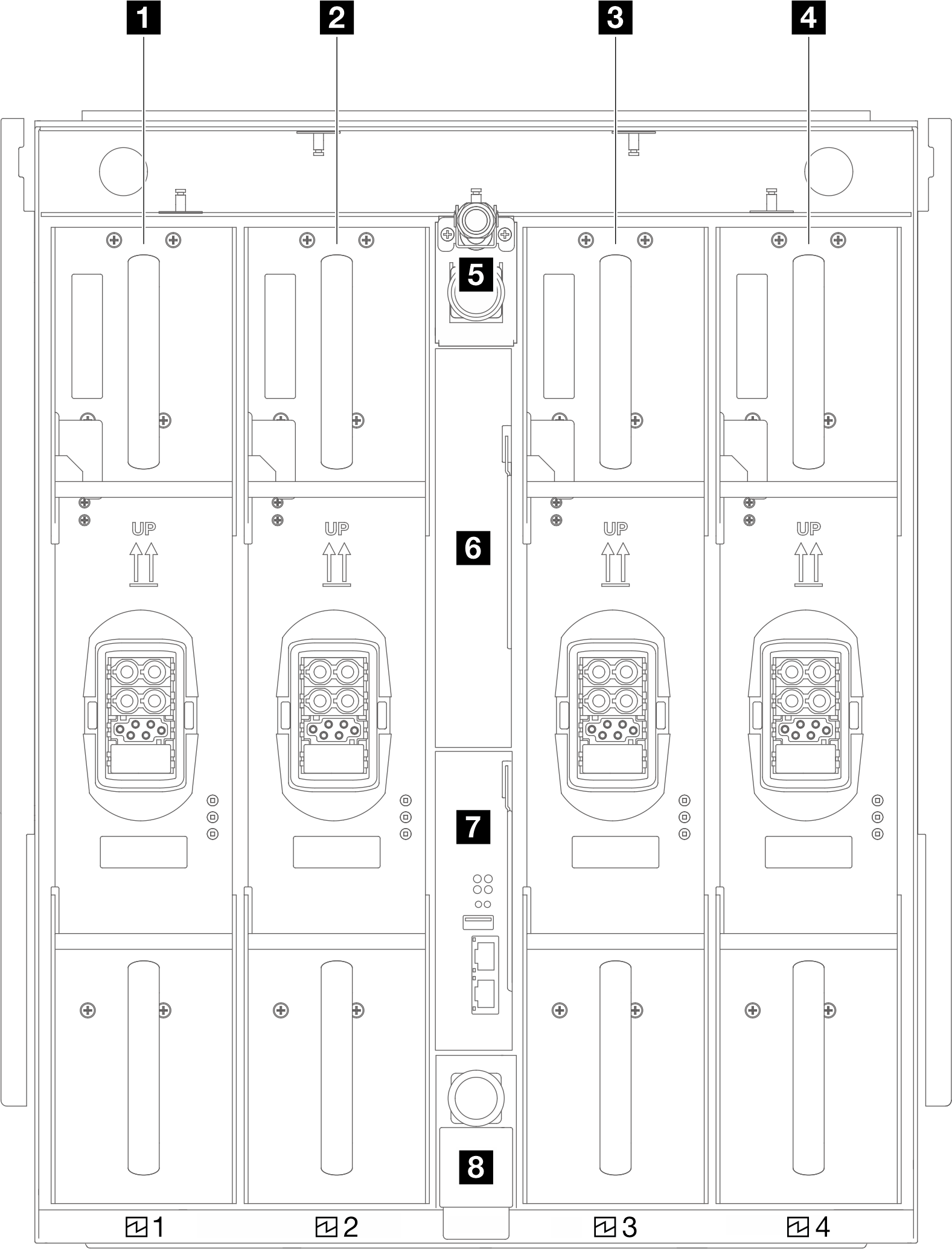

Figure 1. Enclosure rear view and Power Conversion Station (PCS) slot numbering
1 Power Conversion Station (PCS) 1
2 Power Conversion Station (PCS) 2
3 Power Conversion Station (PCS) 3
4 Power Conversion Station (PCS) 4
- For more information on LED, see Power Conversion Station (PCS) LEDs.
5 Upper manifold for return (red-labeled hose)
6 Enclosure blank filler
7 SMM 3
- For more information, see System Management Module 3 (SMM 3) and System Management Module 3 (SMM3) LEDS.
8 Lower manifold for supply (blue-labeled hose)
