Install a Power Conversion Station (PCS) cage

Use this information to install a Power Conversion Station (PCS) cage.

About this task
Required tools
  • Stubby PH1 screwdriver from FRU for screw driver
S001
shock hazard
DANGER
danger
Electrical current from power, telephone, and communication cables is hazardous.

To avoid a shock hazard:

  • Connect all power cords to a properly wired and grounded electrical outlet/source.
  • Connect any equipment that will be attached to this product to properly wired outlets/sources.
  • When possible, use one hand only to connect or disconnect signal cables.
  • Never turn on any equipment when there is evidence of fire, water, or structural damage.
  • The device might have more than one power cord, to remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
S002
disconnect all power
CAUTION
The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
S035
shock hazard
CAUTION

Never remove the cover on a power supply or any part that has this label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician.

CAUTION


High touch current. Connect to earth before connecting to supply.
Attention
Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

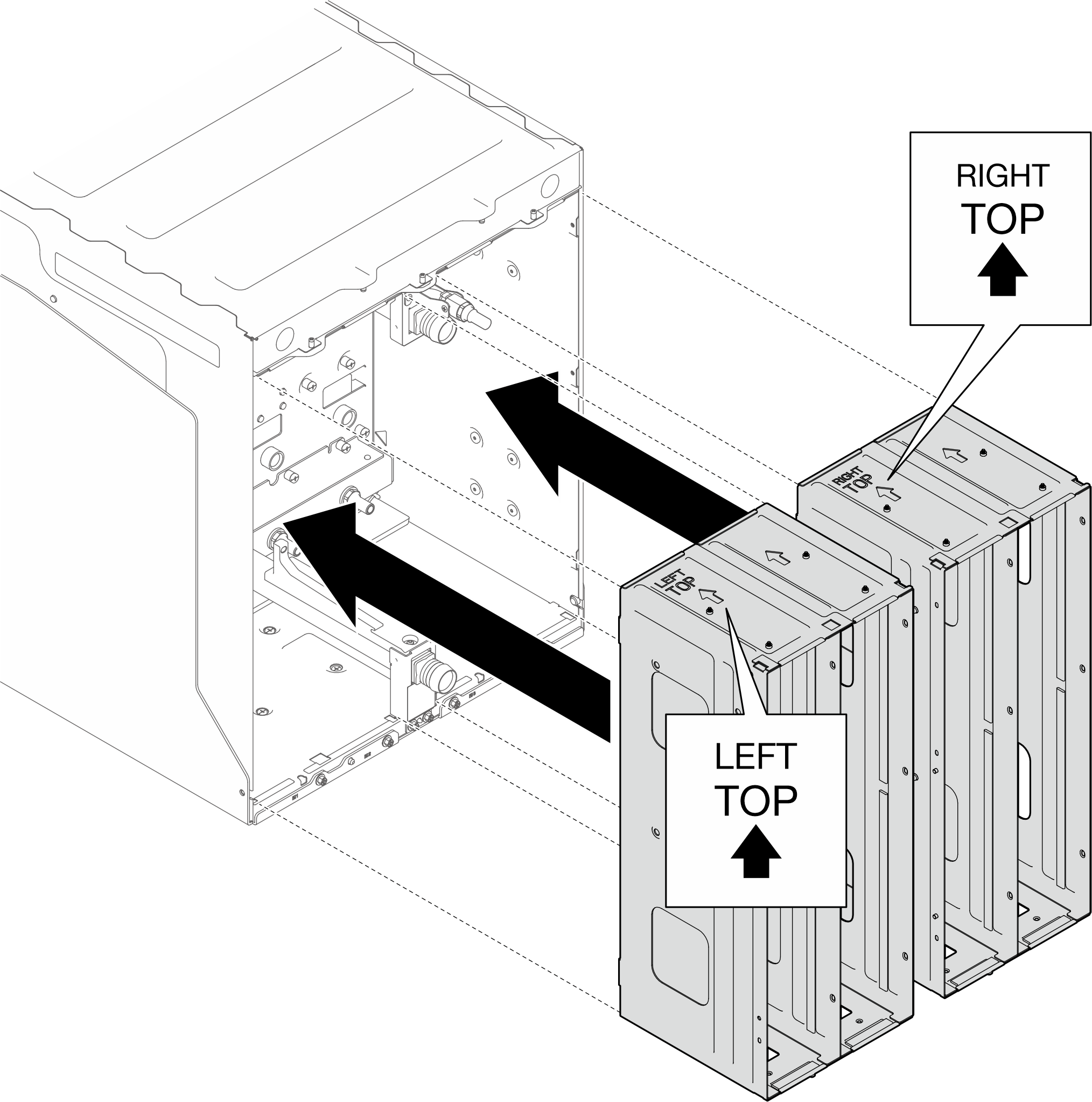

  1. Install the PCS cage to the enclosure.
    Note

    • Make sure the TOP marking is facing upward.

    • Right-side and left-side PCS cages are different. Make sure to check the marking on top of the cage for proper installation.

    Figure 1. Installing PCS cages

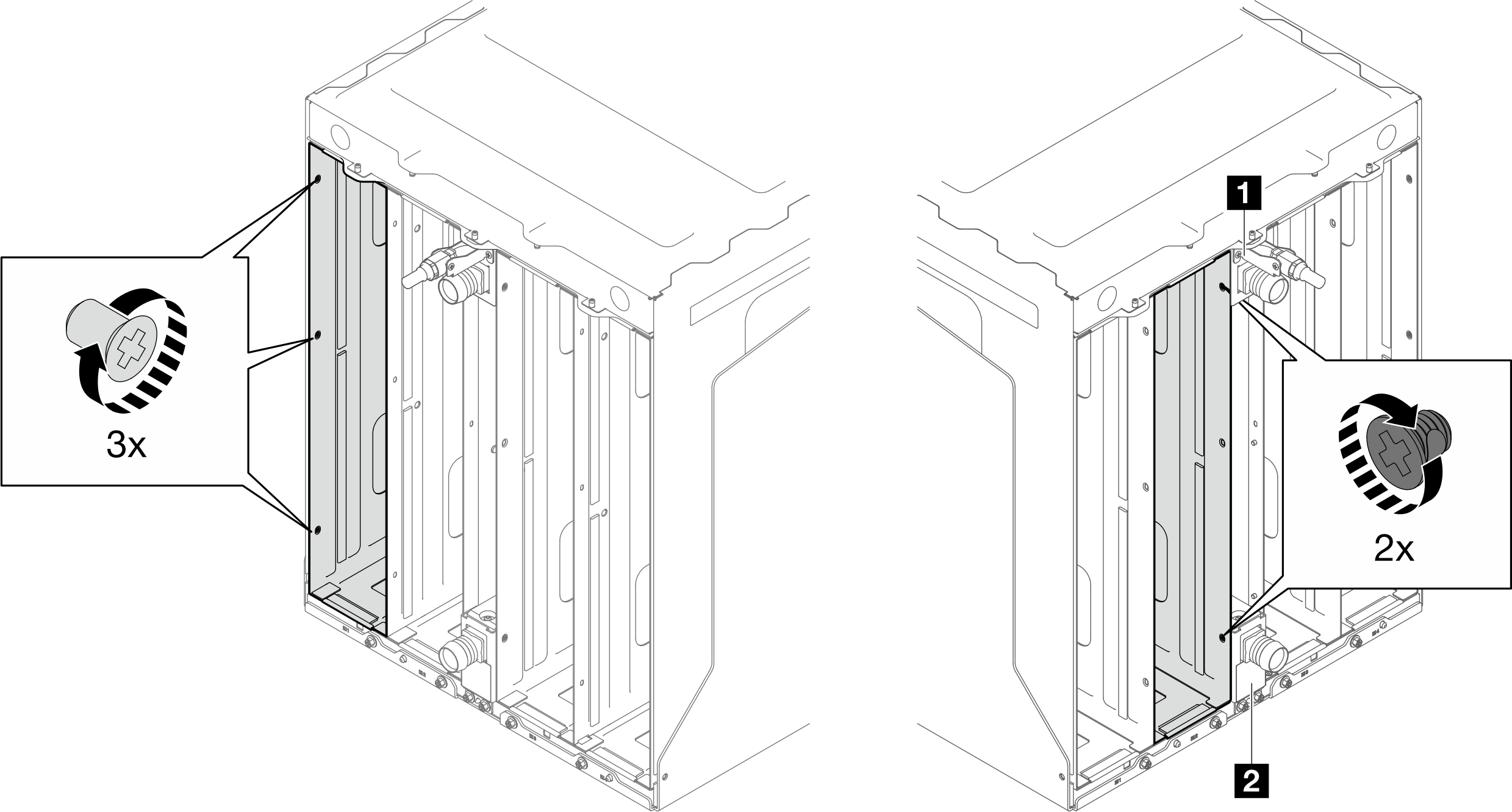

  2. Use a stubby screwdriver to install screws to the left-side PCS cage (when viewed from the rear of the enclosure).
    1. Install three PH1 screws from the inner left side of the PCS cage.
    2. Install two PH1 screws from the inner right side of the PCS cage.
    Note
    1 Upper manifold
    2 Lower manifold
    Figure 2. Installing screws to the left-side PCS cage

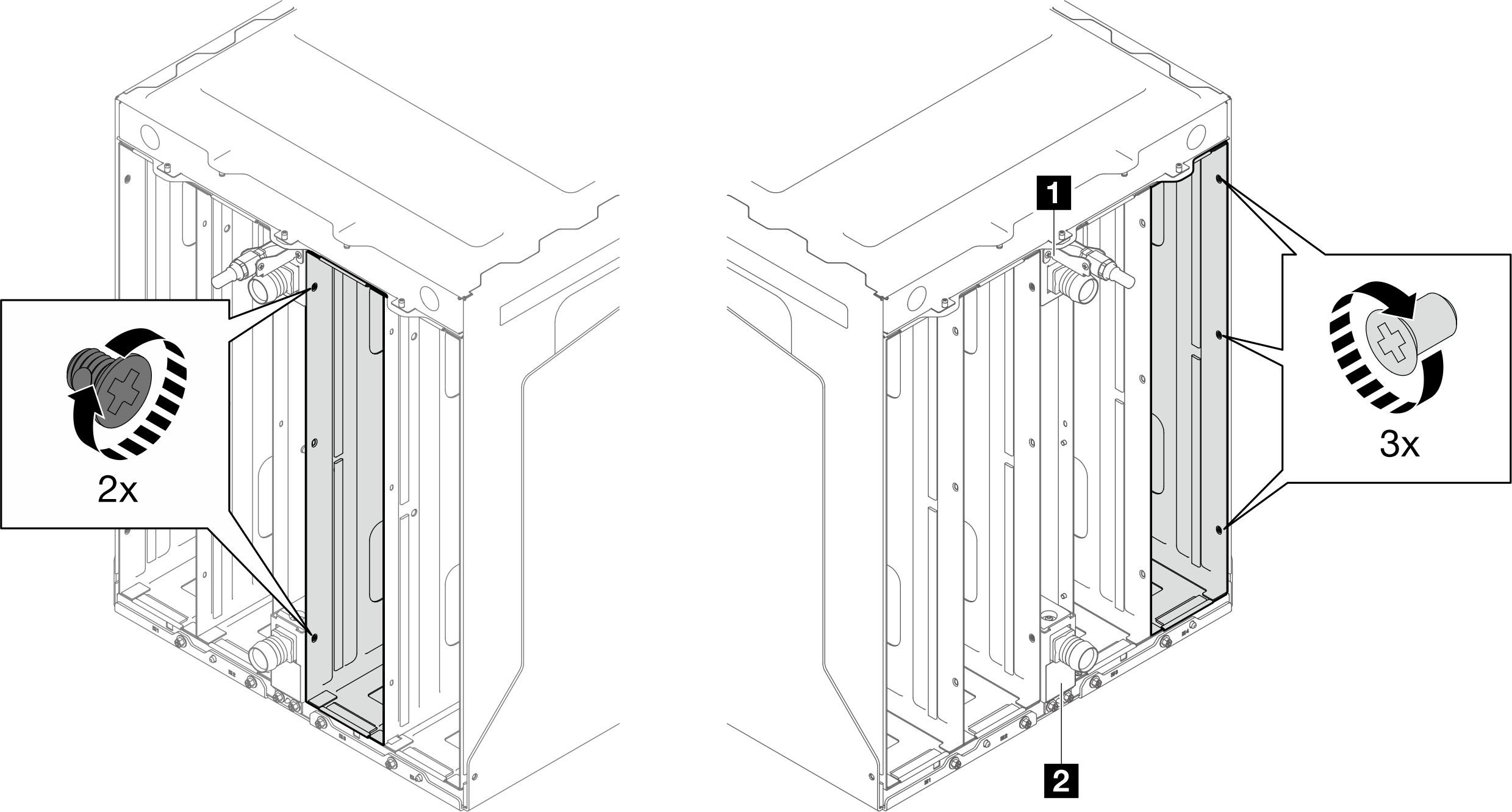

  3. Use a stubby screwdriver to install screws to the right-side PCS cage (when viewed from the rear of the enclosure).
    1. Install two PH1 screws from the inner left side of the PCS cage.
    2. Install three PH1 screws from the inner right side of the PCS cage.
    Note
    1 Upper manifold
    2 Lower manifold
    Figure 3. Installing screws to the PCS cage on the right side

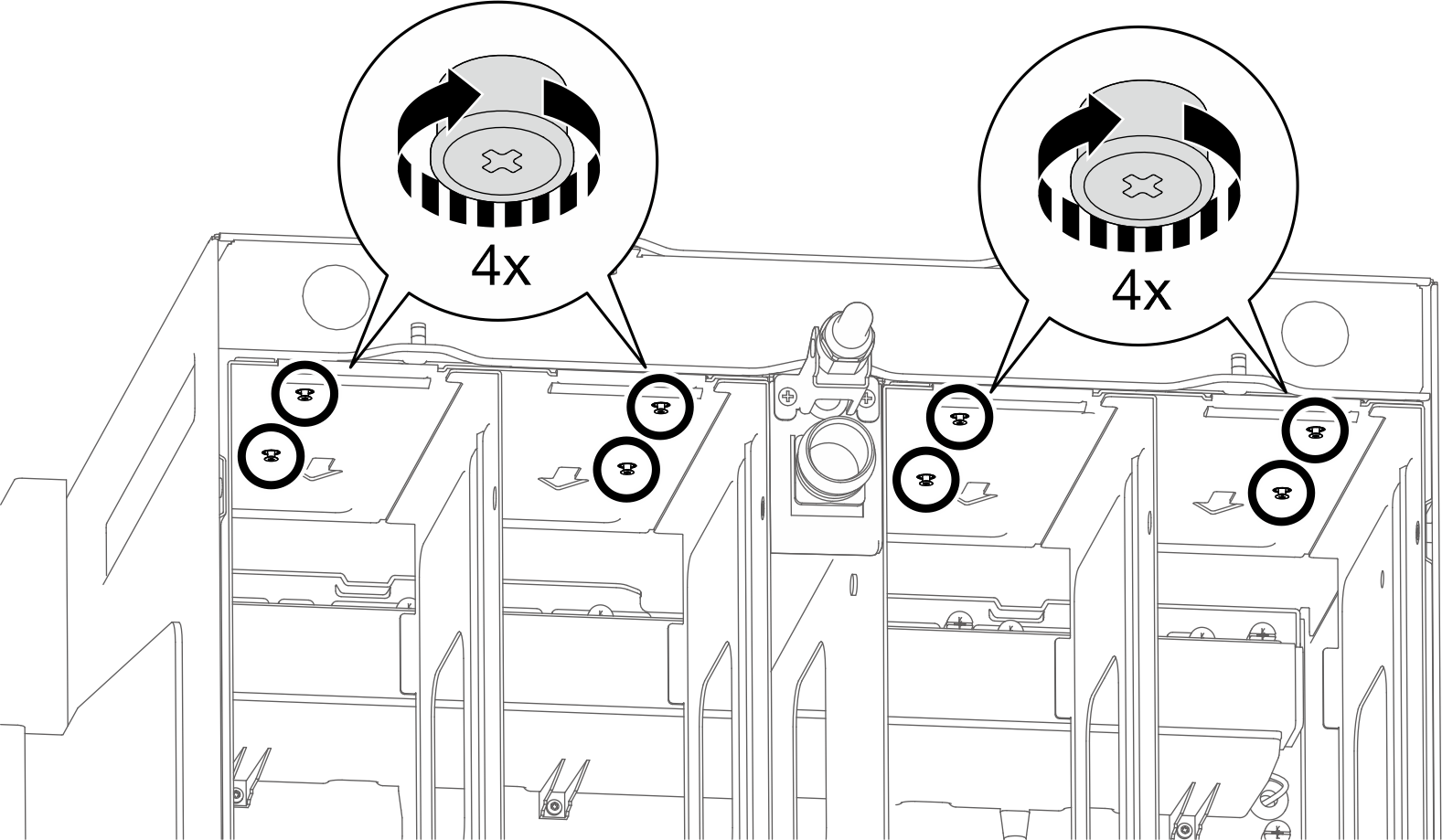

  4. Install eight PH1 screws from the inner top side of the PCS cages.
    Figure 4. Installing PCS cage inner top side screws

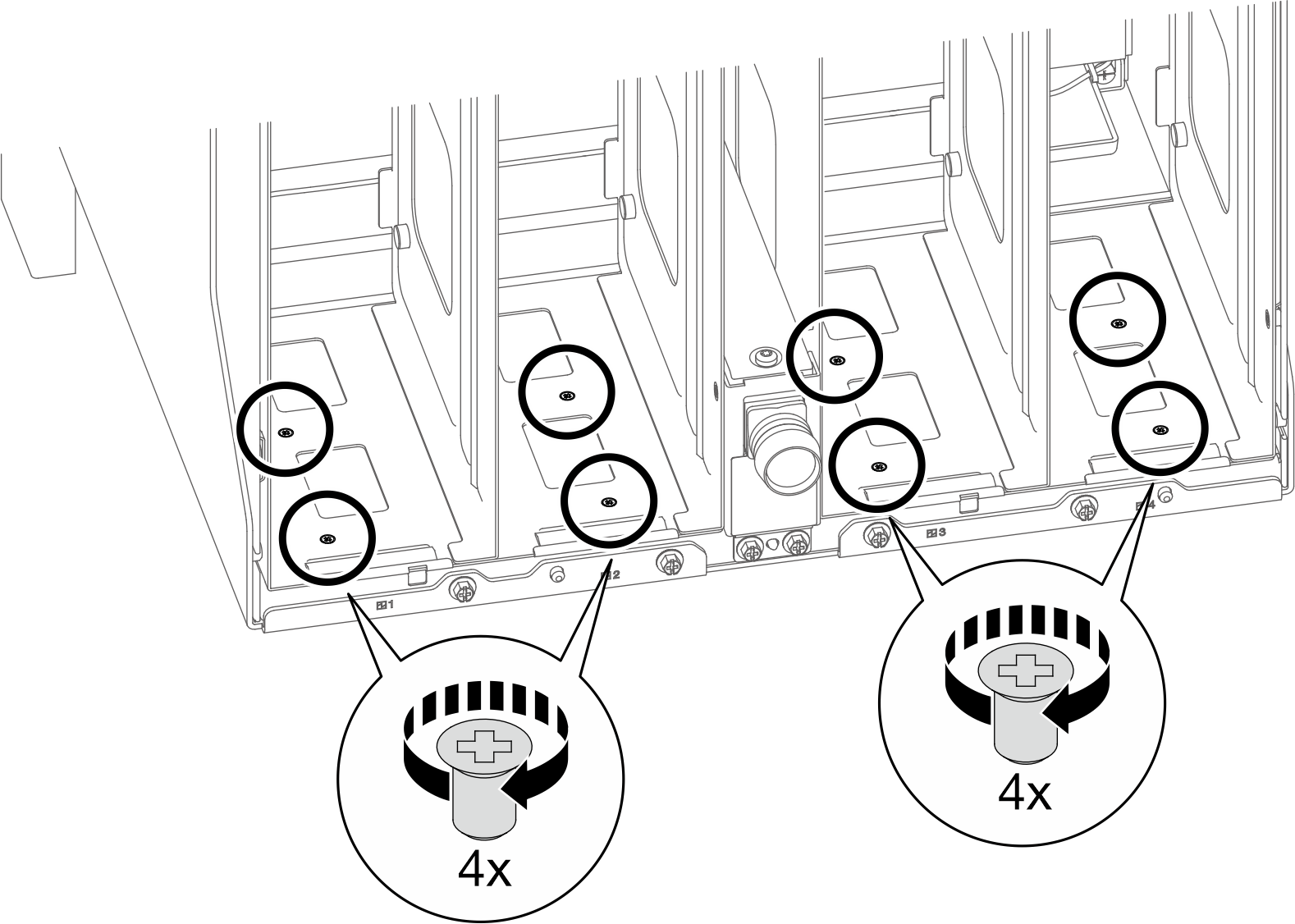

  5. Install eight PH1 screws from the inner bottom side of the PCS cages.
    Figure 5. Installing PCS cage inner bottom side screws

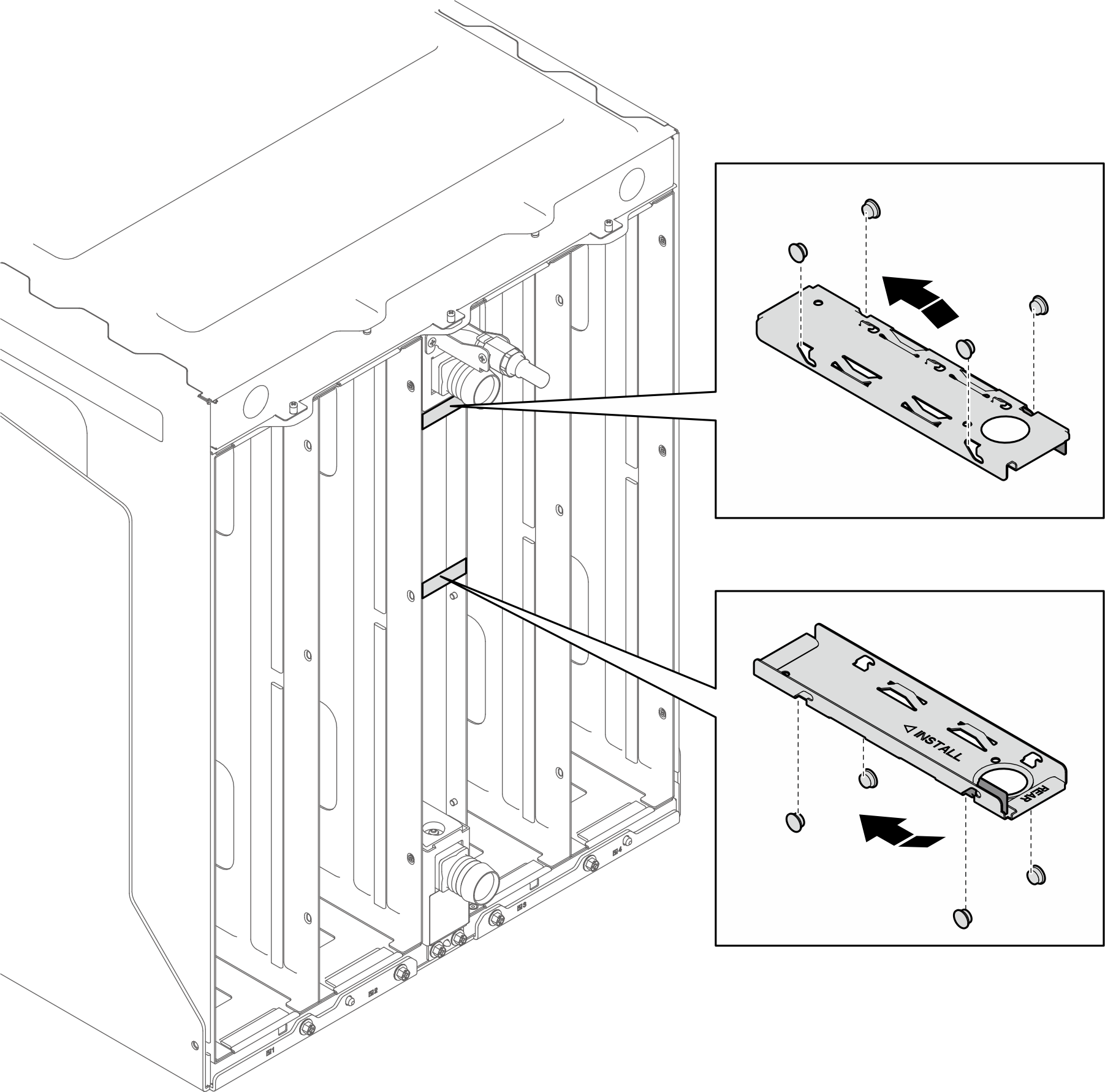

  6. Align the slots on the partition brackets to the studs on the walls inside the enclosure; then, slide the partition bracket into the studs. Push the partition brackets inward to secure them in place.
    Figure 6. Installing partitions to the enclosure

After you finish
