Install the air duct

Follow instructions in this section to install the air duct. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
Note
If you are installing a new air duct, attach the service label to the surface of the new air duct if necessary.

Procedure

  1. Align the air duct with the standoffs on the front fan cage; then, lower the air duct into the FIO/PCI cage.
  2. Fasten the two screws to secure the air duct.

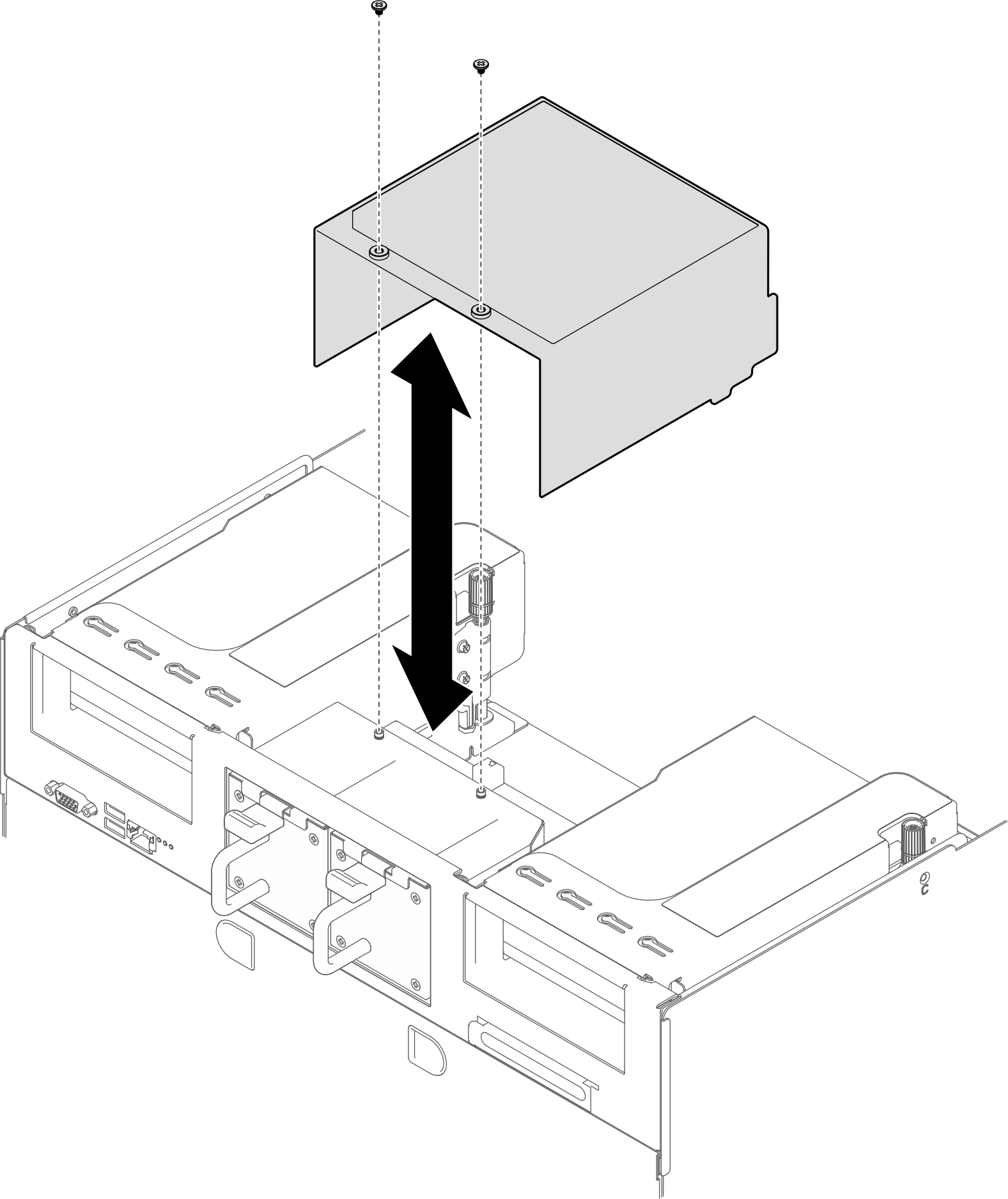

    Figure 1. Air duct installation
    Air duct installation
  3. Push the system shuttle fully into the chassis.

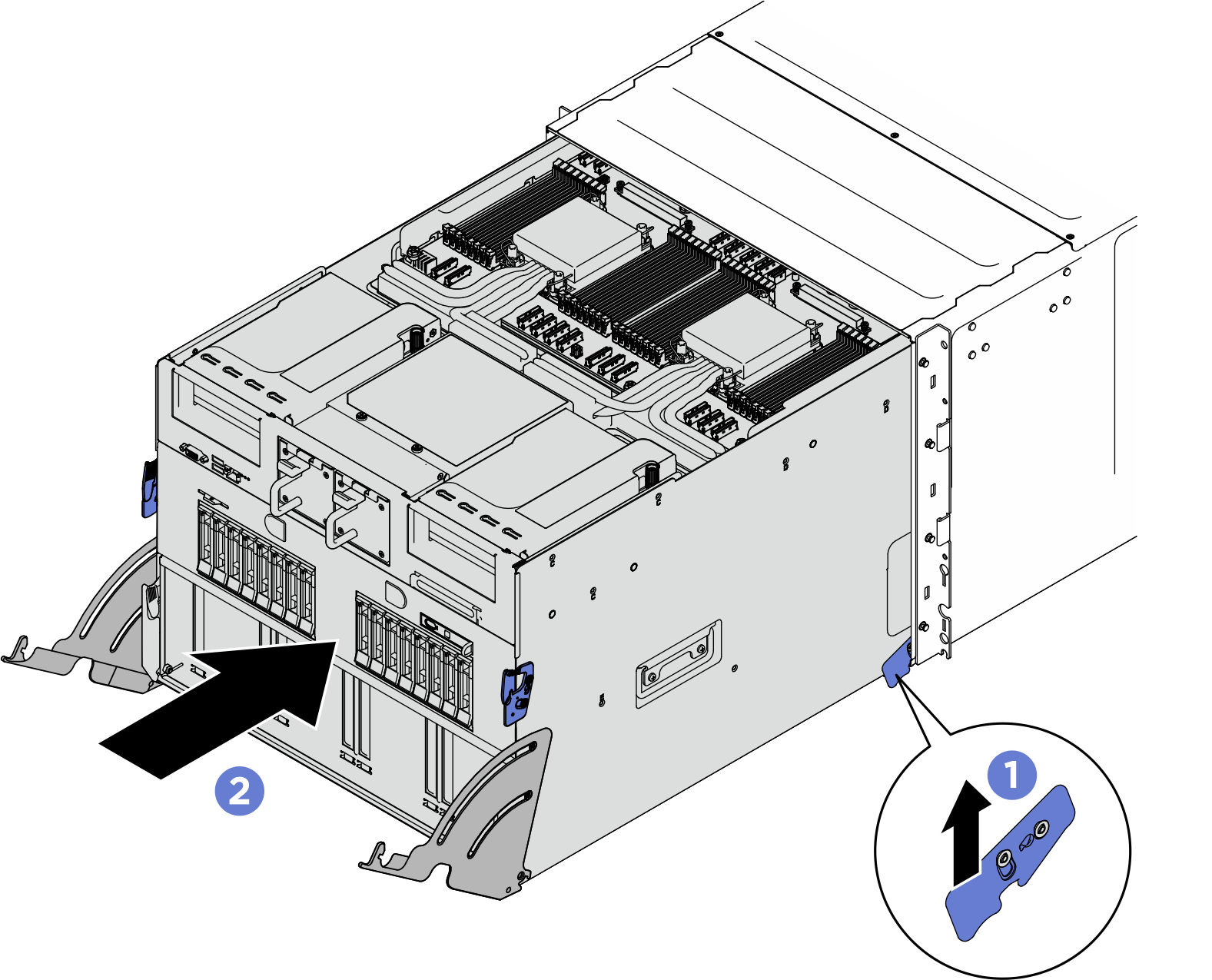

    1. Lift the two lock latches on both sides of the shuttle.
    2. Slide the shuttle into the chassis.

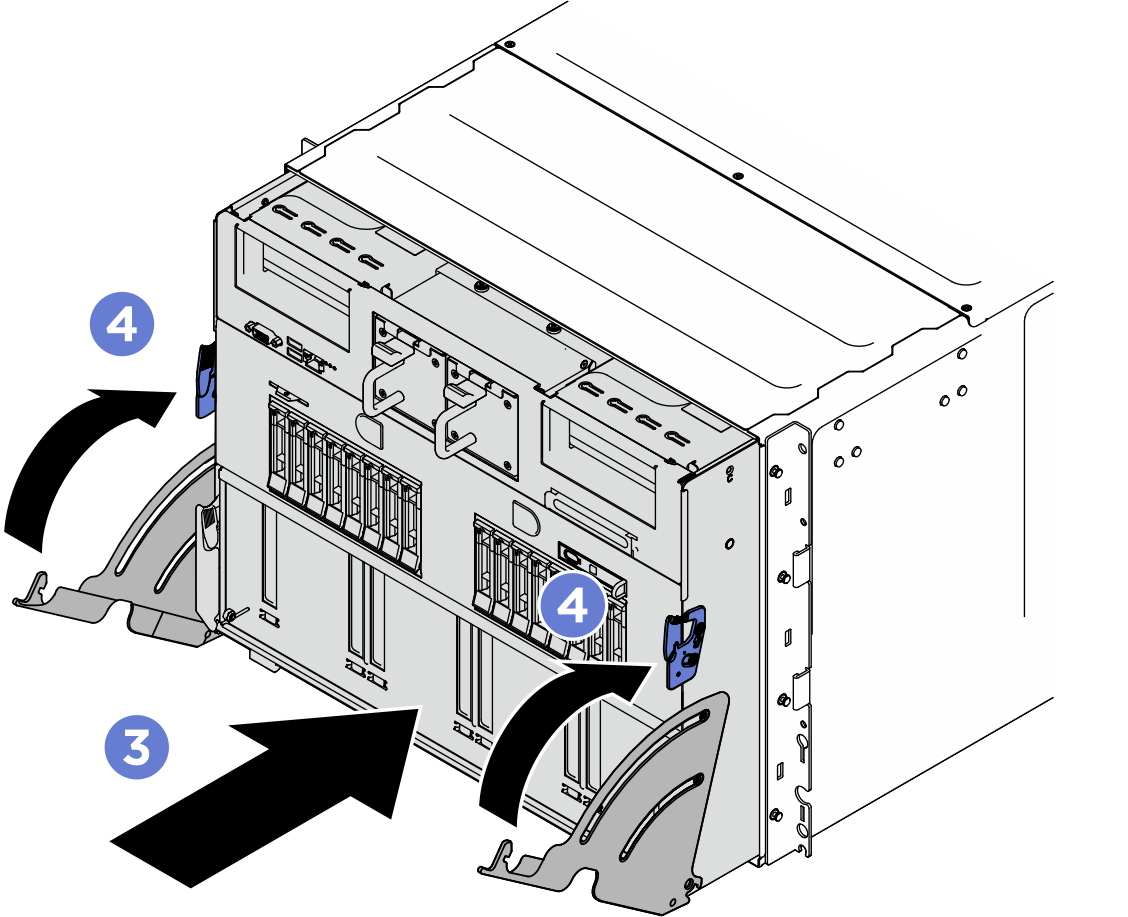

    3. Push the shuttle fully into the chassis.
    4. Rotate the two release levers until they lock into place.
    Figure 2. System shuttle installation
    System shuttle installation

    System shuttle installation

After you finish

Complete the parts replacement. See Complete the parts replacement.
