Remove the integrated diagnostics panel

Follow instructions in this section to remove the integrated diagnostics panel. The procedure must be executed by a trained technician.

Procedure

1. Make preparation for this task.
   1. Pull the system shuttle to the stop position.
      1. Press the two blue release latches.
      2. Rotate the two release levers until they are perpendicular to the shuttle.
      3. Pull the shuttle forward until it stops.
         Important

         To avoid damage, push the two release levers back and ensure they lock into place after extending the system shuttle to its stop position.

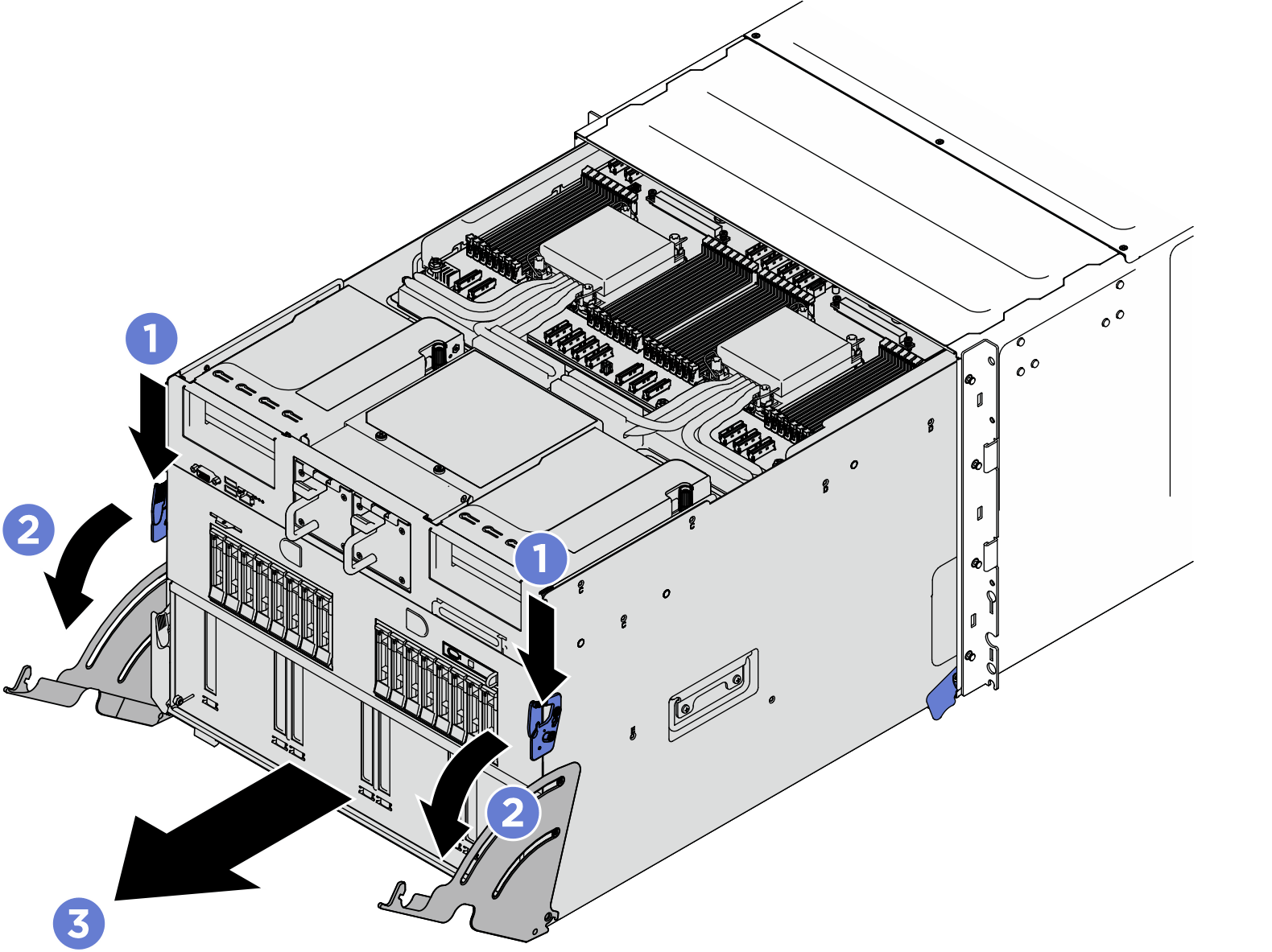

         Figure 1. Pulling the system shuttle to the stop position


   2. Remove the FIO/PCI cage. See Remove the FIO/PCI cage.
2. Remove the integrated diagnostics panel.
   1. Press and hold on the two release tabs.
   2. Slightly disengage the integrated diagnostics panel from the system shuttle.
   3. Disconnect the cable from the integrated diagnostics panel.

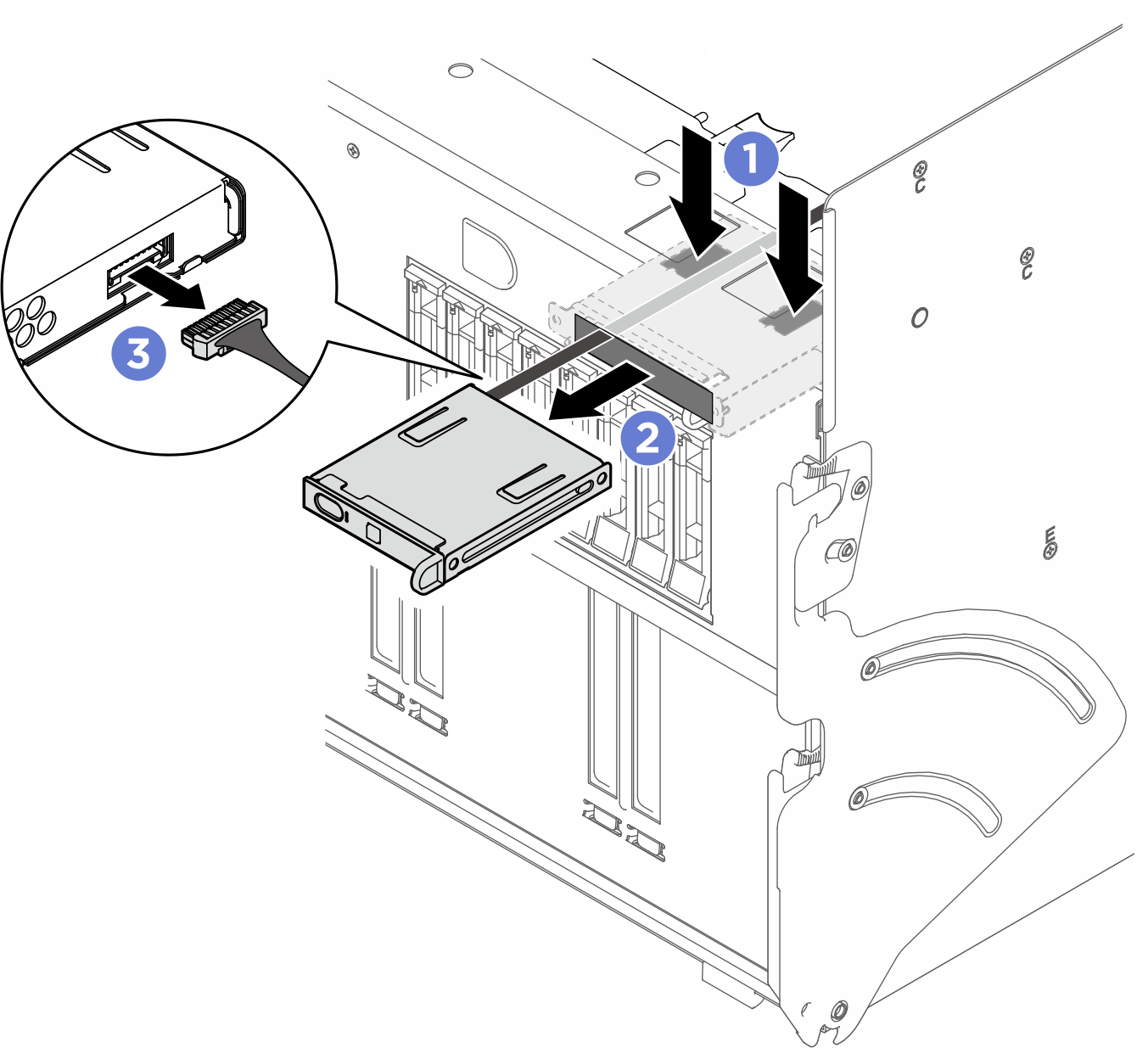

   Figure 2. Integrated diagnostics panel removal


3. Remove the integrated diagnostics panel from the system shuttle.
