Install an M.2 drive

Follow the instructions in this section to install an M.2 drive.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Firmware and driver download: You might need to update the firmware or driver after replacing a component.

Procedure

  1. Touch the static-protective package that contains the new part to any unpainted surface on the outside of the server; then, take the new part out of the package and place it on a static-protective surface.
  2. Locate the connector on the M.2 backplane.
    Note

    • The M.2 backplane or M.2 drive shown in the illustrations are for reference only. Your specific M.2 backplane or M.2 drive may differ in appearance.

    • Install the M.2 drive in slot 0 first.

    Figure 1. M.2 drive slots
    M.2 drive slots
    1 Slot 02 Slot 1
  3. (Optional) Adjust the retainer on the M.2 backplane to accommodate the particular size of the M.2 drive you wish to install.

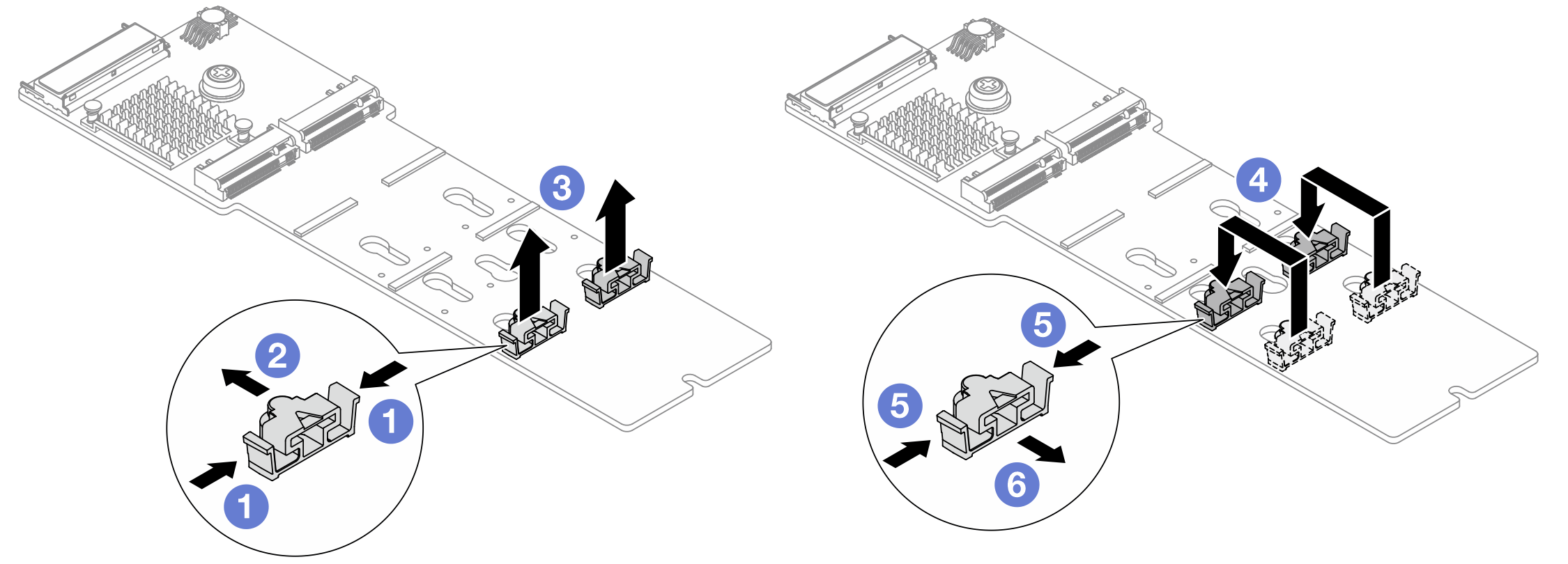

    Figure 2. M.2 retainer adjustment
    Adjust the M.2 retainer.
    1. Press both sides of the retainer.
    2. Move the retainer forward until it is in the large opening of the keyhole.
    3. Take the retainer out of the keyhole; then, insert the retainer into the correct keyhole.
    4. Insert the retainer into the suitable keyhole.
    5. Press both sides of the retainer.
    6. Slide the retainer backwards (toward the small opening of the keyhole) until it is seated in place.
  4. Install M.2 drive into M.2 backplane.

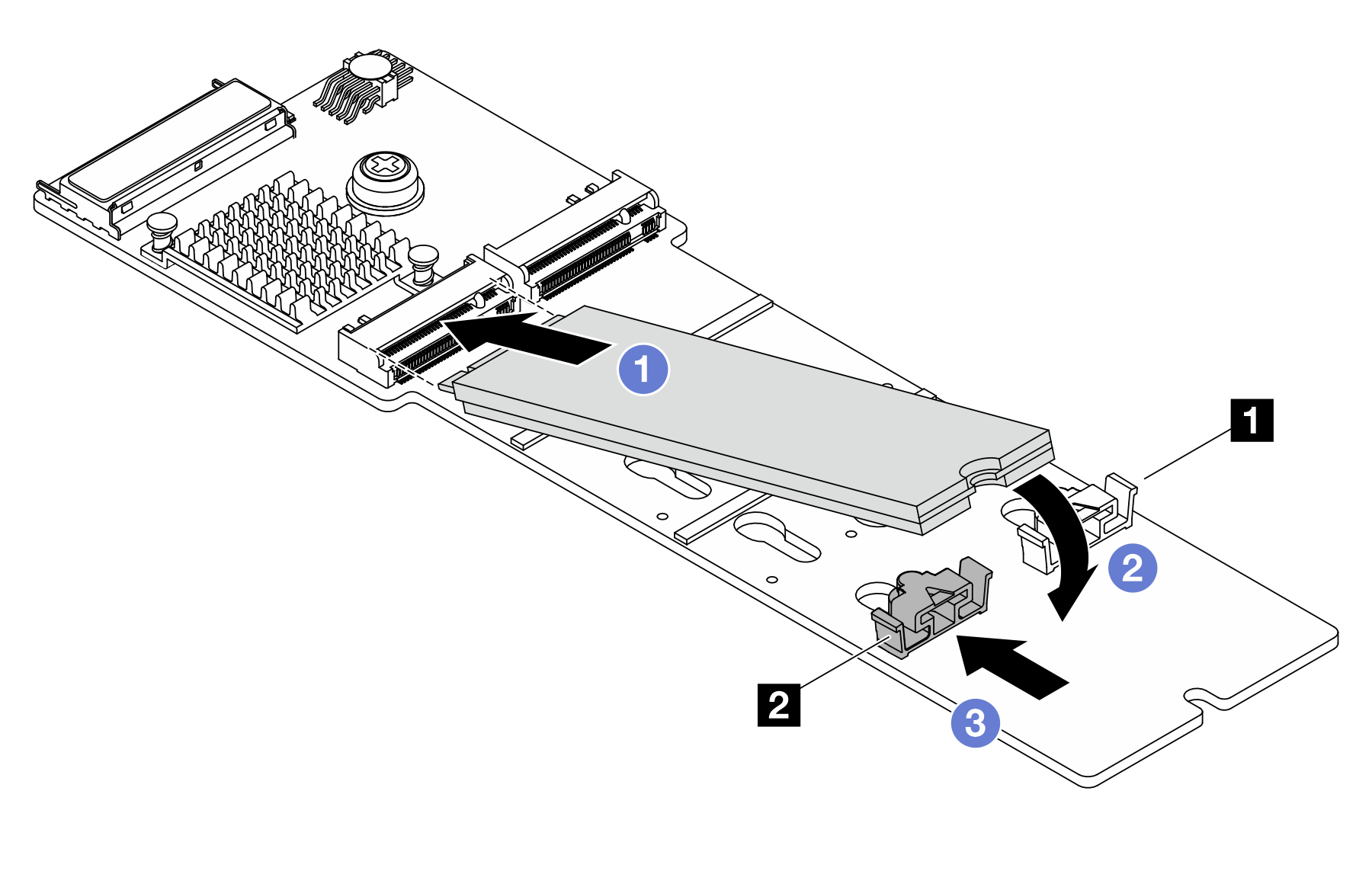

    Figure 3. Installing M.2 drive
    Installing M.2 drive
    1. Insert the M.2 drive into the slot at an angle of approximately 30 degrees.
    2. Pivot the M.2 drive down until the notch at the end of the M.2 drive catches on the lip of the retainer.
    3. Slide the retaining clip forward to secure the M.2 drive to the M.2 backplane.

After you finish

  1. Remove the front top cover. See Remove the front top cover.

  2. Complete the parts replacement. See Complete the parts replacement.

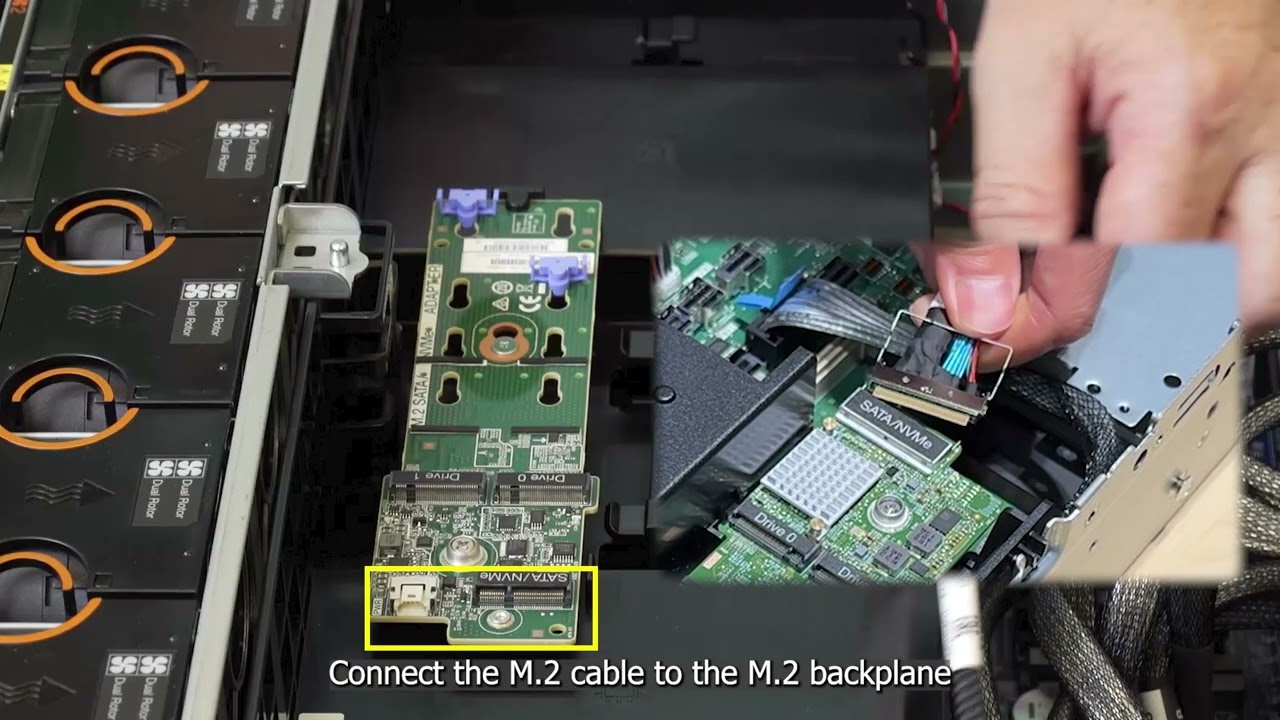

Demo video

Watch the procedure on YouTube
