Remove an M.2 drive

Follow the instructions in this section to remove an M.2 drive.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

  • Before you remove or make changes to drives, drive controllers (including controllers that are integrated on the system board assembly), drive backplanes or drive cables, back up all important data that is stored on drives.

Procedure

  1. If the server is installed in a rack, slide the server out on its rack slide rails to gain access to the top covers, or remove the server from the rack. See Server replacement.
  2. Remove the front top cover. See Remove the front top cover.
  3. Remove the M.2 drive.

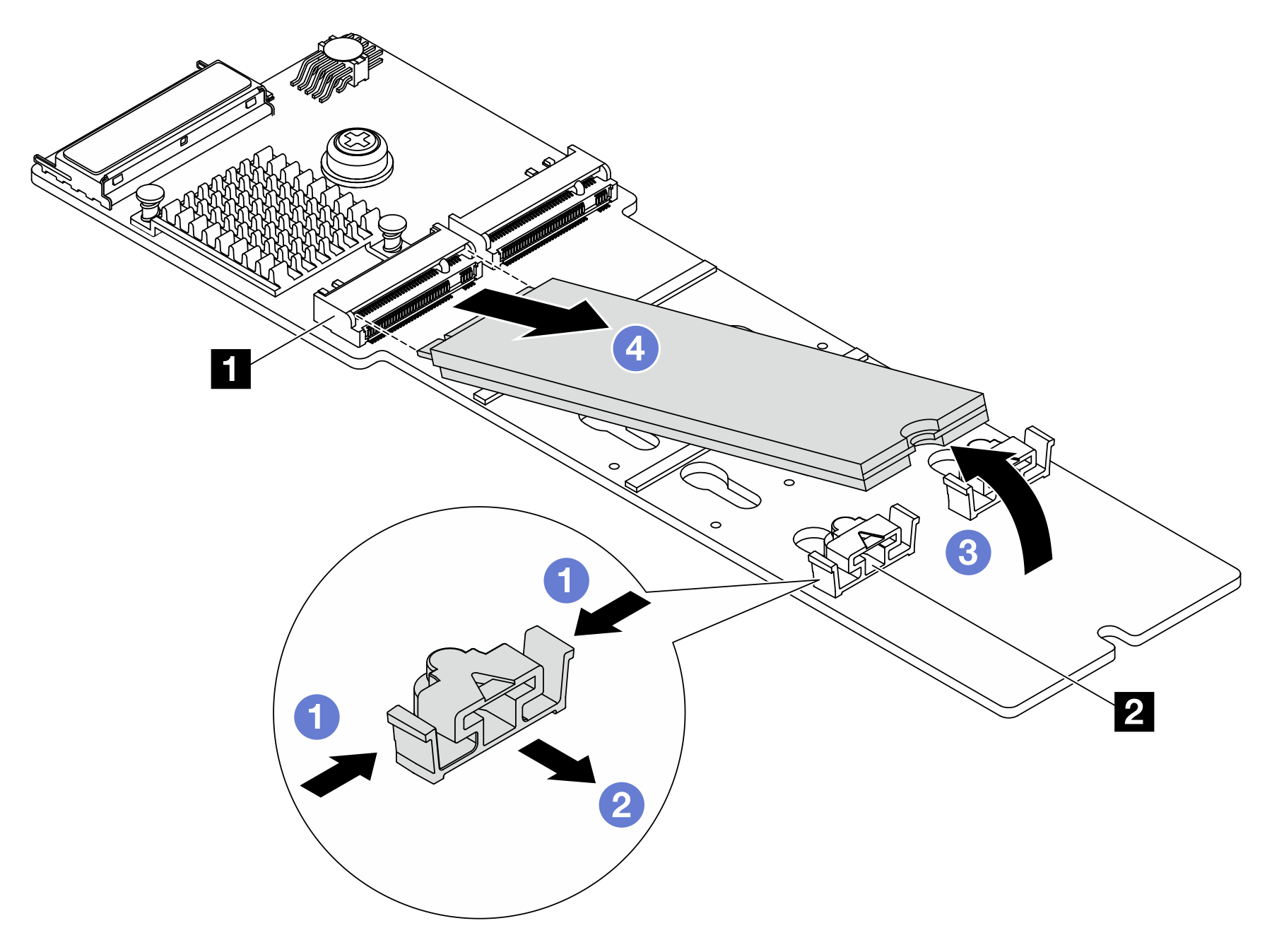

    Figure 1. Removing M.2 drive
    Removing M.2 drive
    1. Pinch and hold on the retainer 2.
    2. Slide the retainer backward to loosen the M.2 drive from the M.2 backplane.
    3. Rotate the rear end of the M.2 drive to an angle of approximately 30 degrees.
    4. Pull the M.2 drive away from the connector 1.

After you finish

  1. Install a new M.2 drive. See Install an M.2 drive.

  2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
