Remove the SMM3

Use this information to remove the SMM3.

About this task

S038
Use eye protection
CAUTION
Eye protection should be worn for this procedure.
Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • If you want to migrate current enclosure settings and the interposer VPD onto the new SMM3, make sure you have done the following:

    1. You had performed SMM3 settings backup and the enclosure VPD backup procedures.

    2. Keep the old USB key which is removed from the SMM3 and install it onto the new SMM3.

Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Make preparations for this task.
  2. If you want to migrate current enclosure settings and the enclosure interposer VPD onto the new SMM3, make sure you have done the following:

    1. You had performed SMM3 settings backup, the enclosure VPD backup, and the interposer VPD backup procedures.

    2. Keep the old USB key which is removed from the SMM3 and install it onto the new SMM3.

  3. Remove the SMM3.
    1. Rotate the latch outwards.
    2. Slide the SMM3 out of the enclosure.

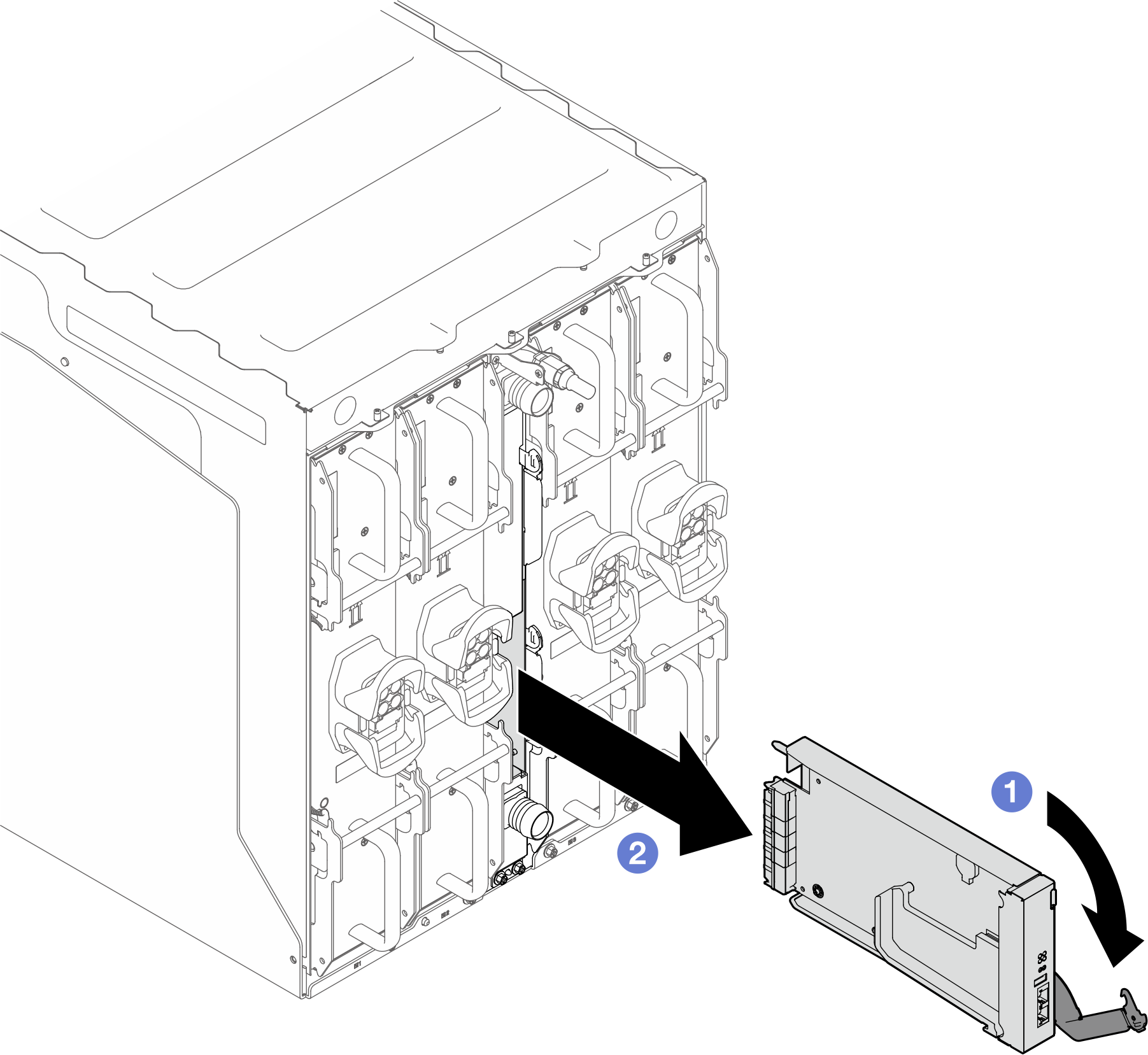

    Figure 1. SMM3 removal

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
