Remove the support baffle

Follow instructions in this section to remove the support baffle.

About this task

Note

The support baffle is only supported in a GPU adapter expansion kit.

Attention

Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
If the node is installed in an enclosure or mounted, remove the node from the enclosure or mount. See Configuration guide.

Procedure

Make preparation for this task.
1. Remove the expansion kit from the node. See Remove the expansion kit.
2. Remove the expansion kit top cover. See Remove the expansion kit top cover.
Remove the four screws that secure the support baffle; then gently lift the support baffle up from the expansion kit. If necessary, for easier operation, tilt the support baffle a little bit when removing it.

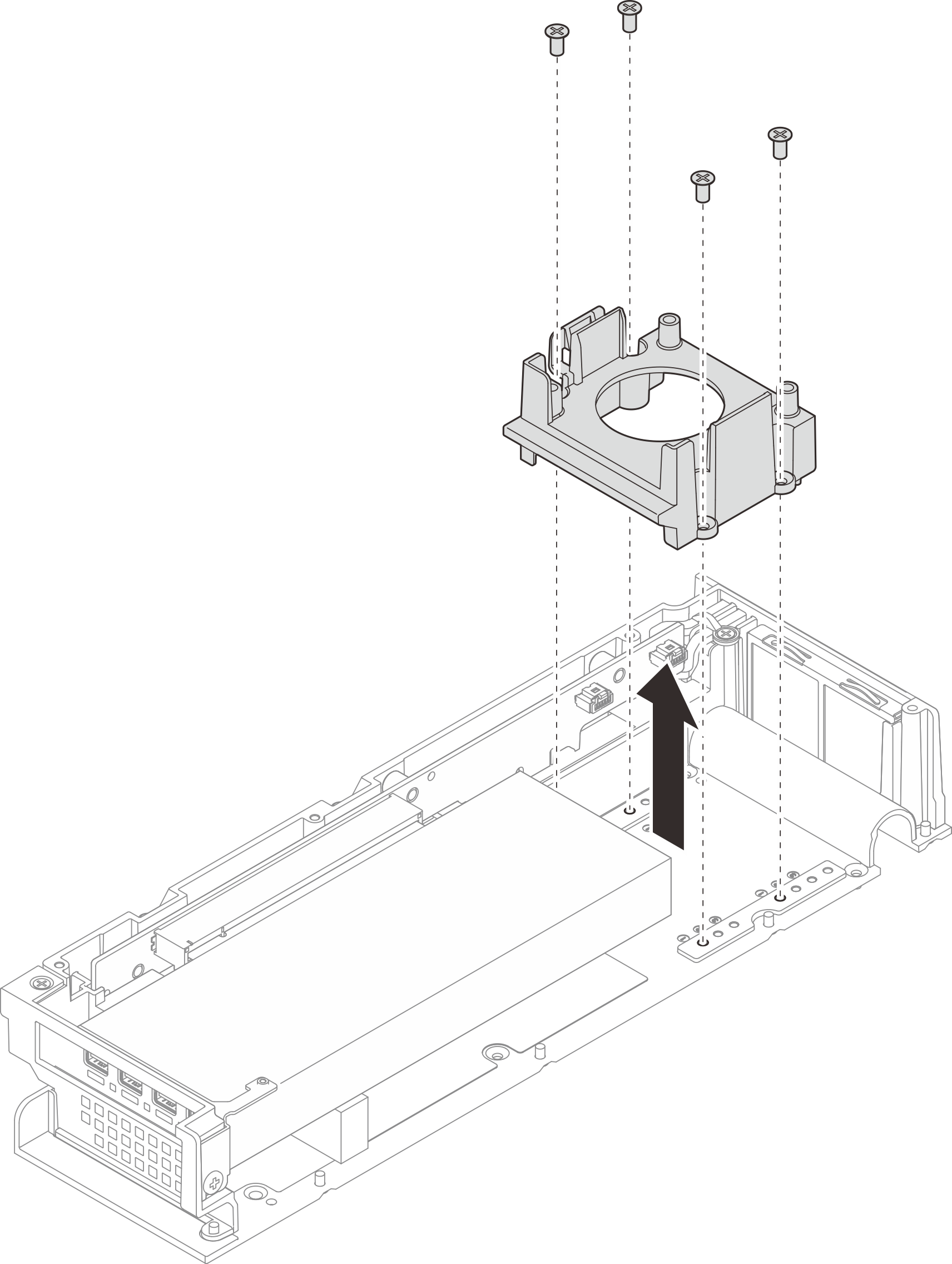

Figure 1. Removing the support baffle

After you finish

Install a replacement unit. See Install the support baffle.
If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
