Install the PSU cage

Follow instructions in this section to install the PSU cage. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
  • Two people and one lifting device on site that can support up to 400 lb (181 kg) are required to perform this procedure. If you do not already have a lifting device available, Lenovo offers the Genie Lift GL-8 material lift that can be purchased at Data Center Solution Configurator. Make sure to include the Foot-release brake and the Load Platform when ordering the Genie Lift GL-8 material lift.

Procedure

  1. Align the PSU cage with the opening in the rear of the chassis, and slide it into the chassis until it snaps into place.
  2. Fasten the sixteen screws to secure the PSU cage.

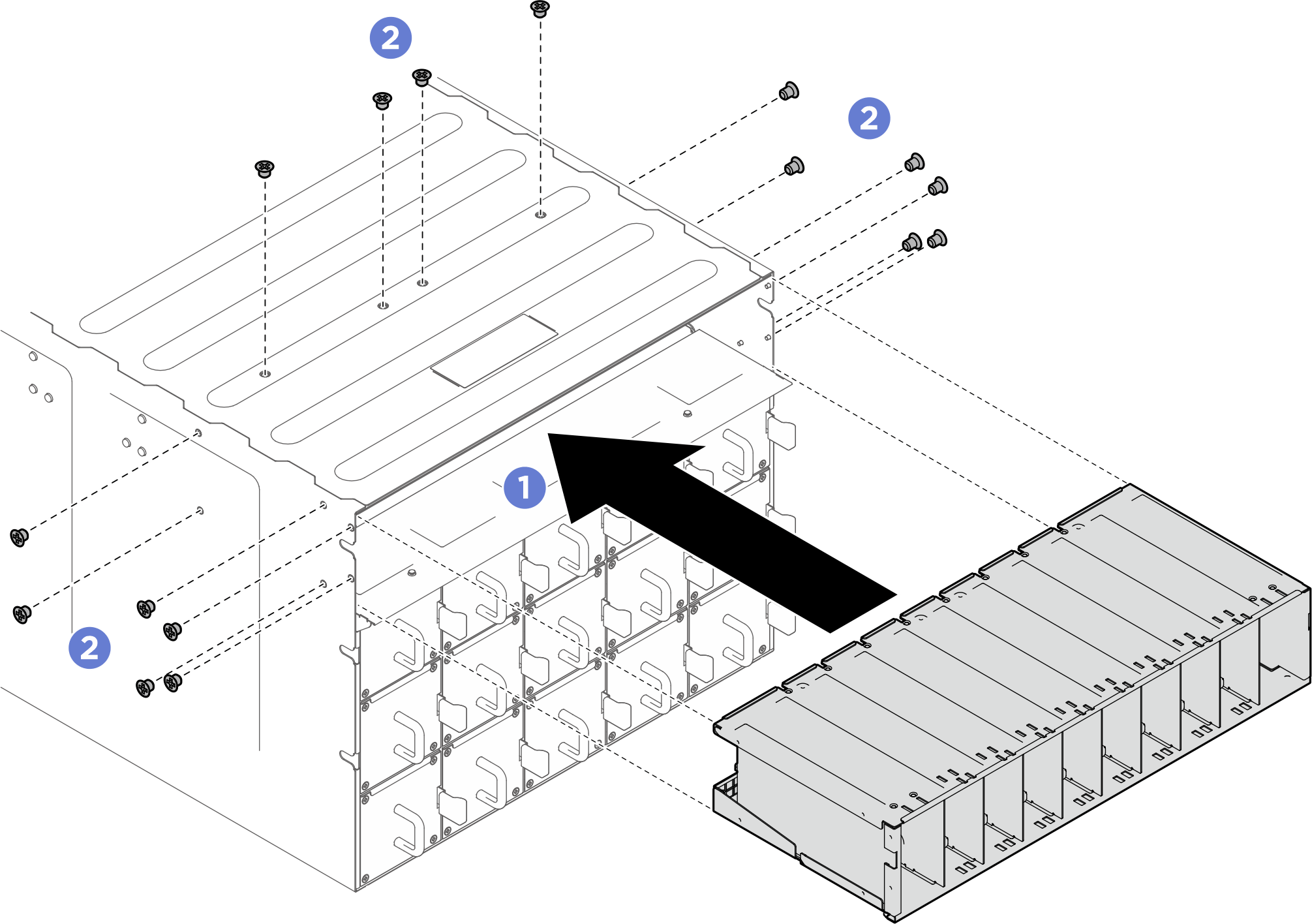

    Figure 1. PSU cage installation
    PSU cage installation

After you finish

  1. Reinstall the rear auxiliary fans. See Install a hot-swap fan.
  2. Reinstall all the power supply units. See Install a hot-swap power supply unit.
  3. Complete the parts replacement. See Complete the parts replacement.
