Install an E3.S CMM cage and backplane
Follow the instructions in this section to install an E3.S CMM cage and backplane.
About this task
Attention
- Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
- Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
- Ensure that you observe the installation rules and sequence order in Backplane installation rules and order.
Firmware and driver download: You might need to update the firmware or driver after replacing a component.
Go to Drivers and Software download website for ThinkSystem SR850 V4 to see the latest firmware and driver updates for your server.
Go to Update the firmware for more information on firmware updating tools.
Procedure

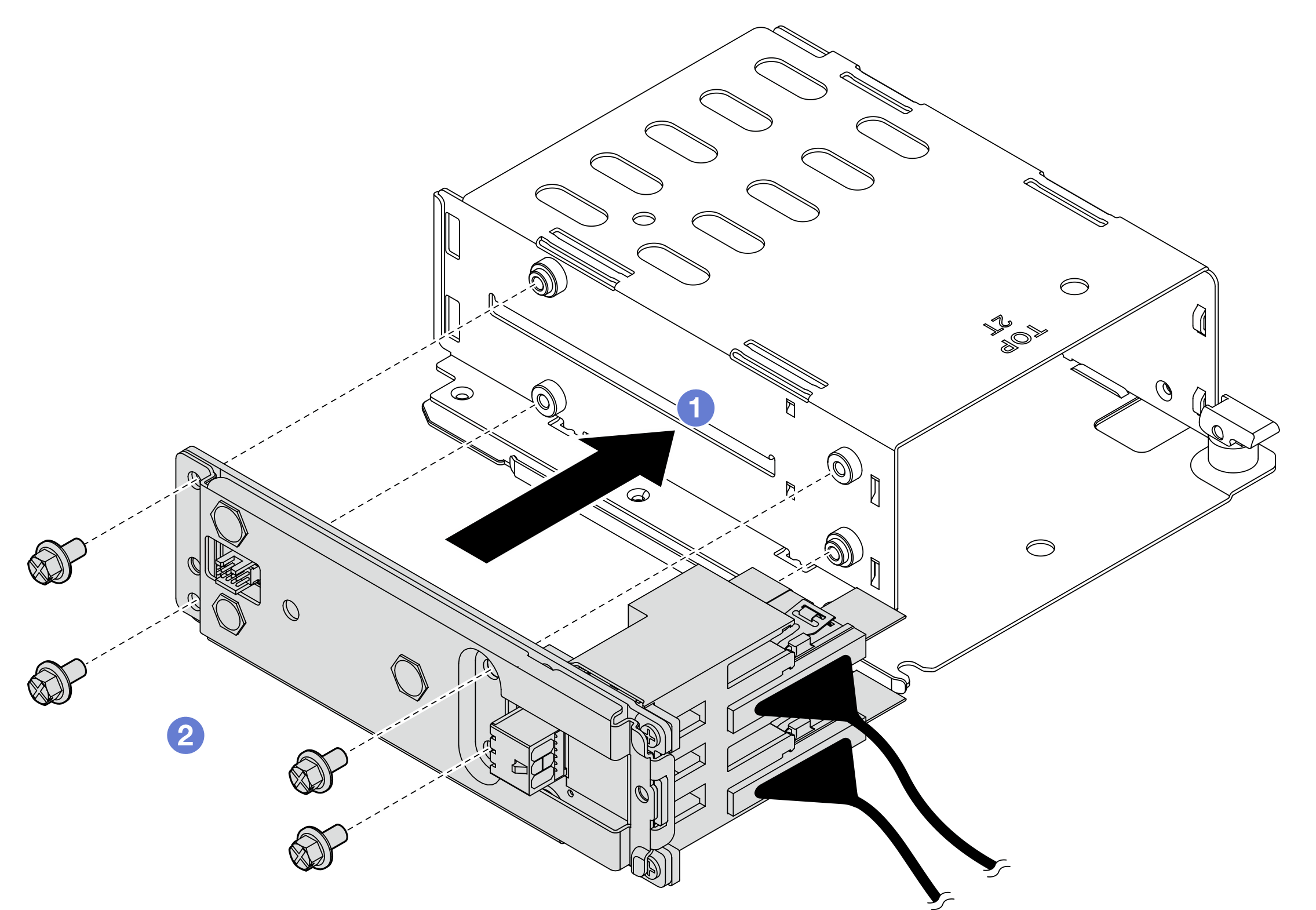

- Install the backplane to the E3.S 2T cage.Figure 1. Installing the backplane
Install the backplane to the cage.
Fasten four screws to secure the backplane.

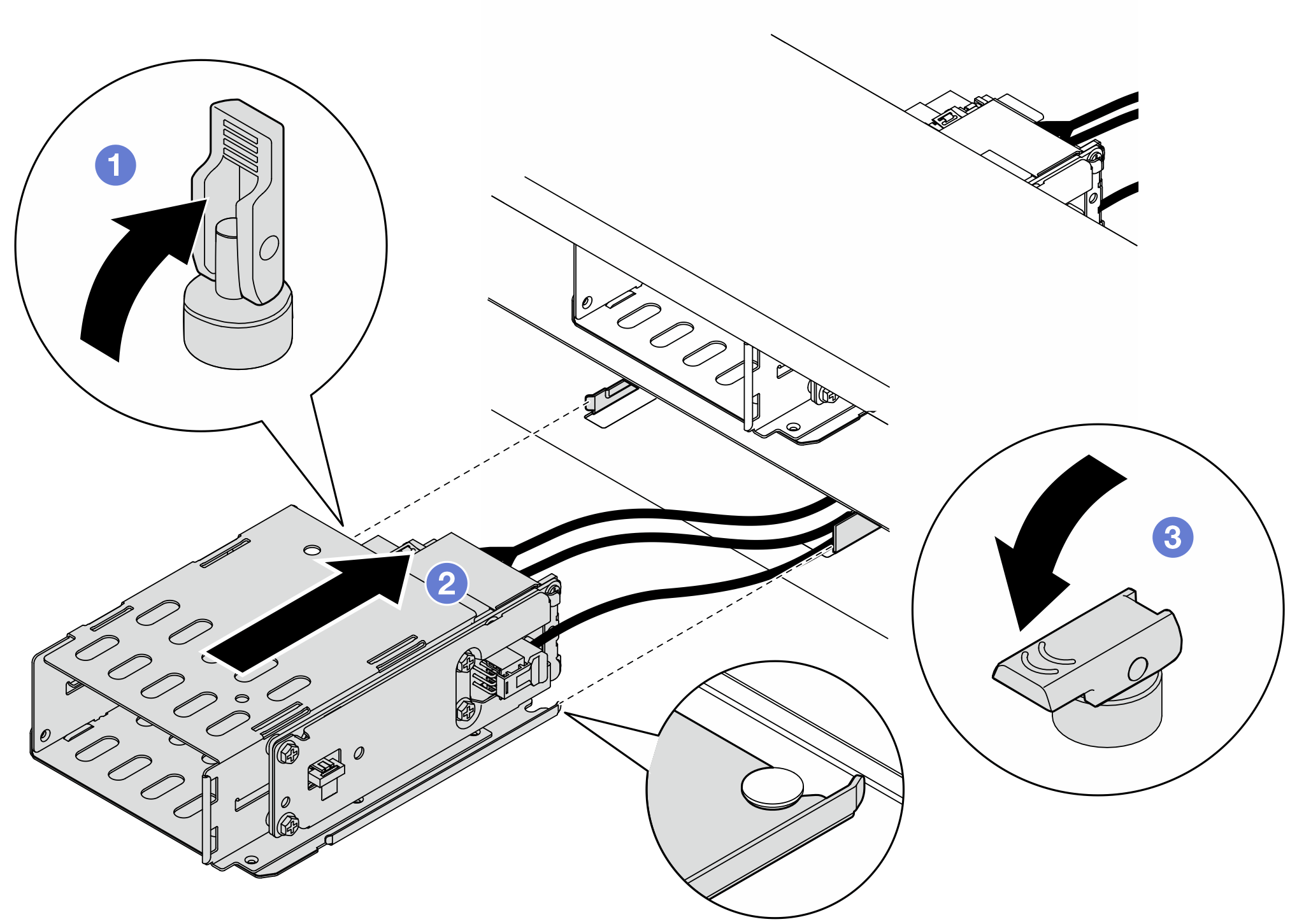

- Install the E3.S 2T cage.Figure 2. Installing the E3.S 2T cage
- Make sure that the latch is in the open position.
- Slide the cage into the chassis until the guide pin on the chassis is seated into place.
Press the latch down to secure the cage.
After you finish
- Reinstall the fan cage. See Install the fan cage.
- Reinstall the fans. See Install a fan.
- Reinstall the front top cover. See Install the front top cover.
- Reinstall the CMM or CMM fillers and E3.S bezel. See Install an E3.S non-hot-swap CMM.
- Complete the parts replacement. See Complete the parts replacement.
