Remove the ferrite core

Use this information to remove the ferrite core. Depending on the configuration, there may be no ferrite core attached to the sideband cable in the system.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Turn off the corresponding DWC tray that you are going to perform the task on.

  • Disconnect the power cords and all external cables from the enclosure.

  • Disconnect the power cords from the enclosure.

Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Make preparations for this task.
    1. Remove the tray from the enclosure. See Remove a tray from the enclosure.
    2. Remove the tray cover. See Remove the tray cover.
    3. Remove the cross braces. See Remove the cross braces.
  2. Locate the ferrite core, which is attached to the sideband cable kit. Remove the ferrite core from the sideband cable.
    1. Open the ferrite core.
    2. Remove the ferrite core from the sideband cable.

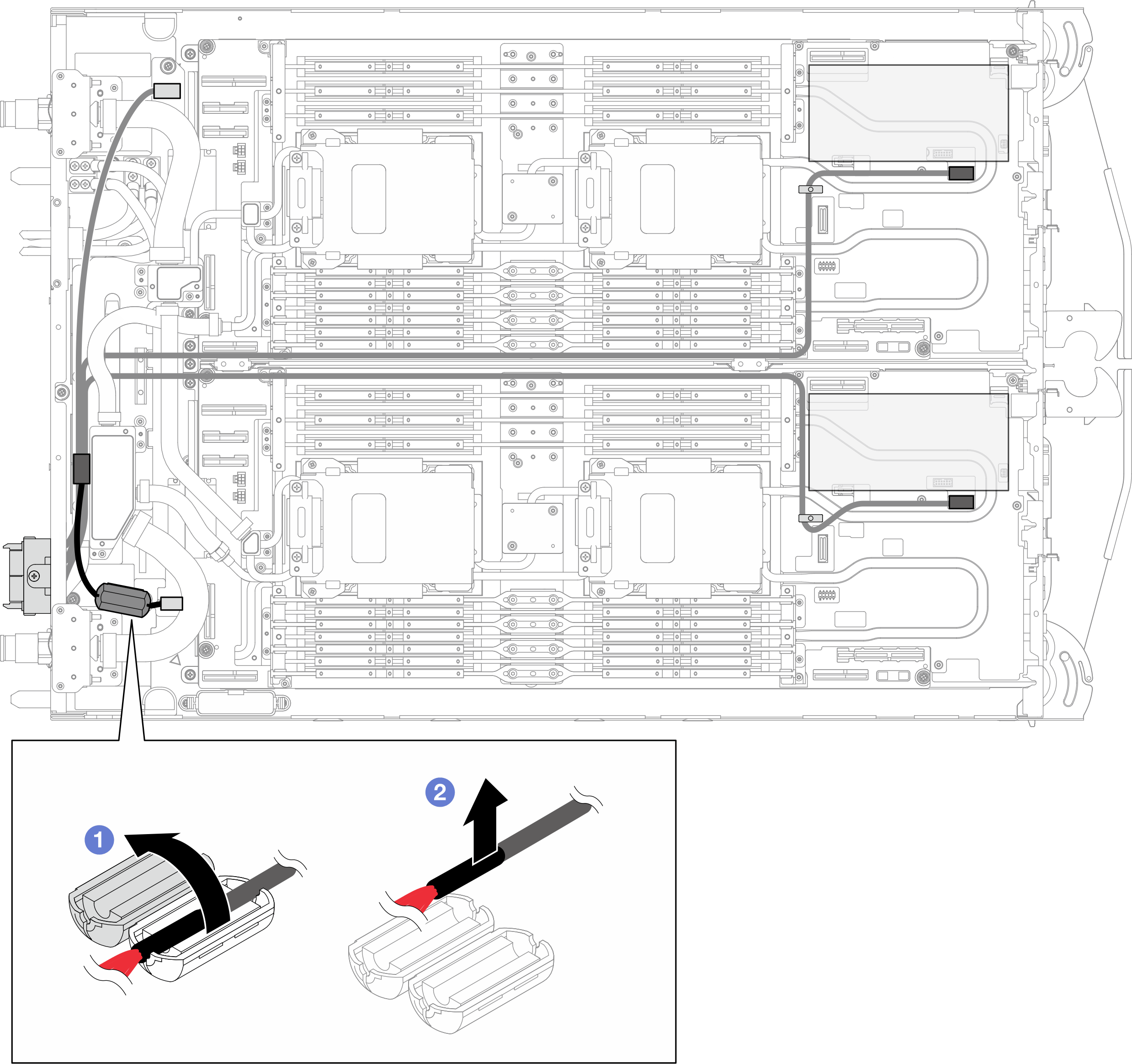

    Figure 1. Removing the ferrite core from the sideband cable

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
