Remove the leakage sensor

Use this information to remove the leakage sensor.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Turn off the corresponding DWC tray that you are going to perform the task on.

  • Disconnect the power cords and all external cables from the enclosure.

  • Disconnect the power cords from the enclosure.

Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Make preparations for this task.
    1. Remove the tray from the enclosure. See Remove a tray from the enclosure.
    2. Remove the tray cover. See Remove the tray cover.
    3. Remove the cross braces. See Remove the cross braces.

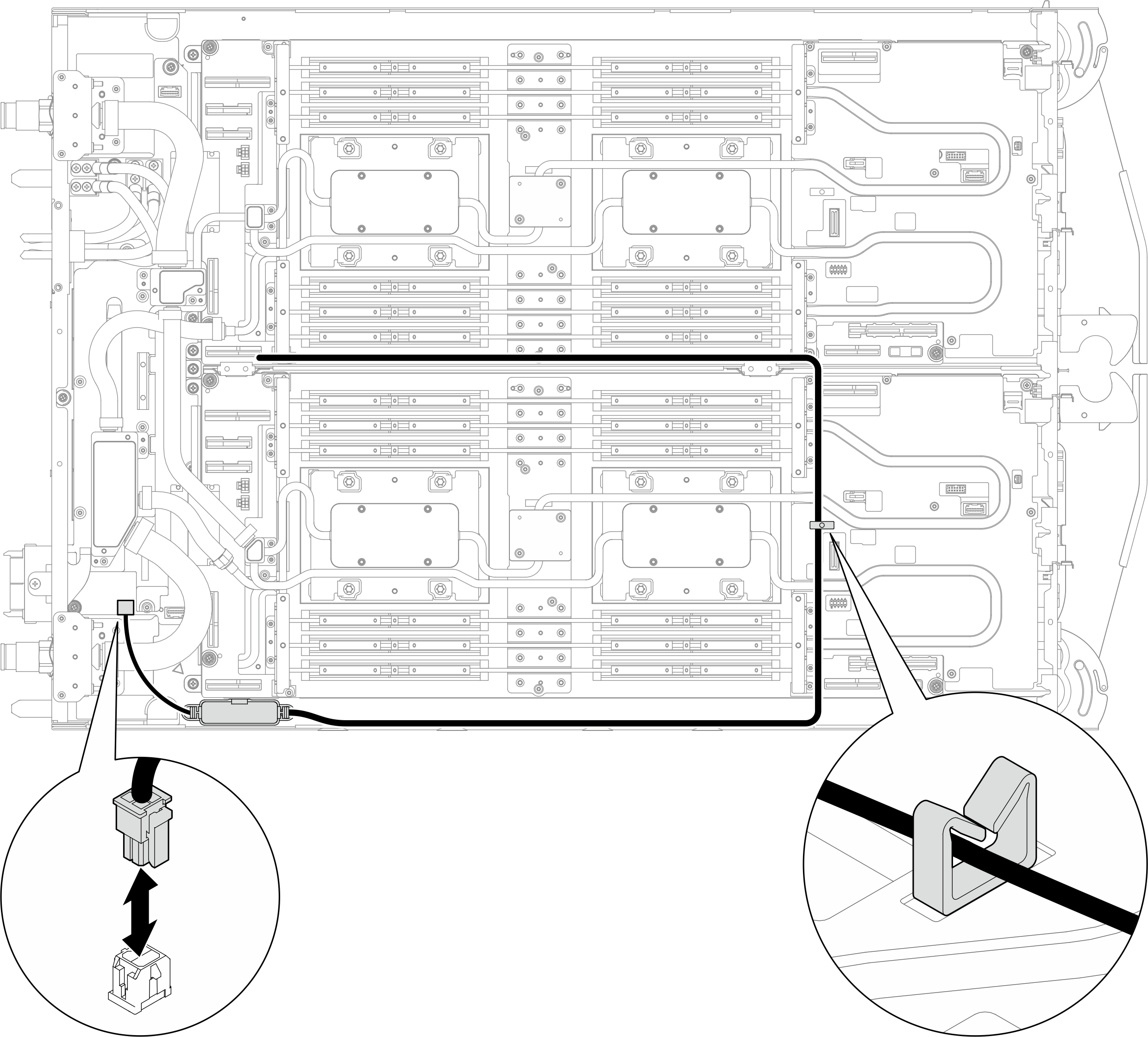

  2. Disconnect the leakage sensor from the power distribution board.
    Figure 1. Disconnecting leakage sensor from the PDB

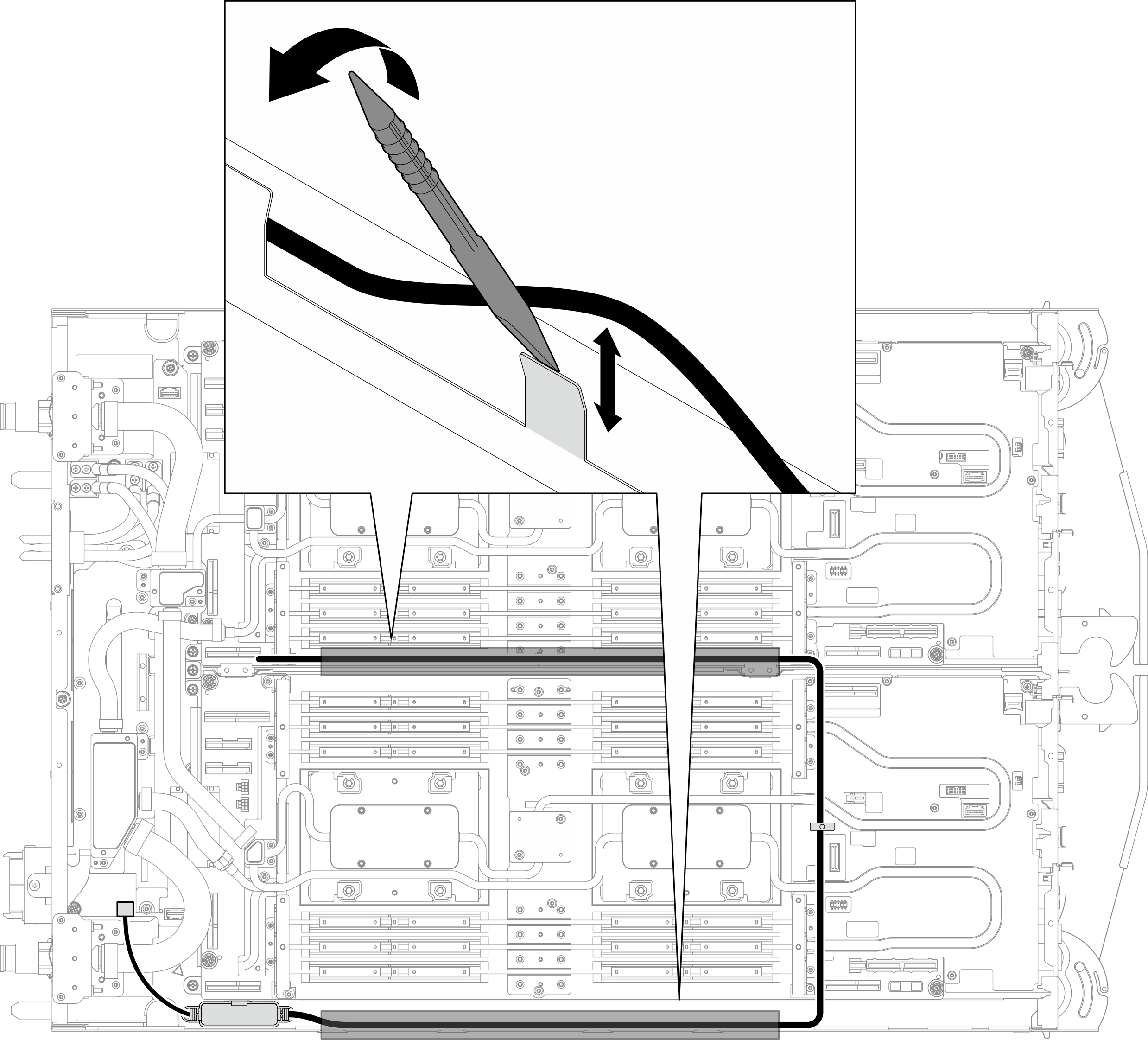

  3. Cable-retaining tabs made of Mylar are attached to the middle and bottom wall of the tray. Insert the DIMM tool into each cable-retaining tab to open it; then, remove the leakage sensor cable.
    Figure 2. Removing leakage sensor cable from the cable-retaining tabs

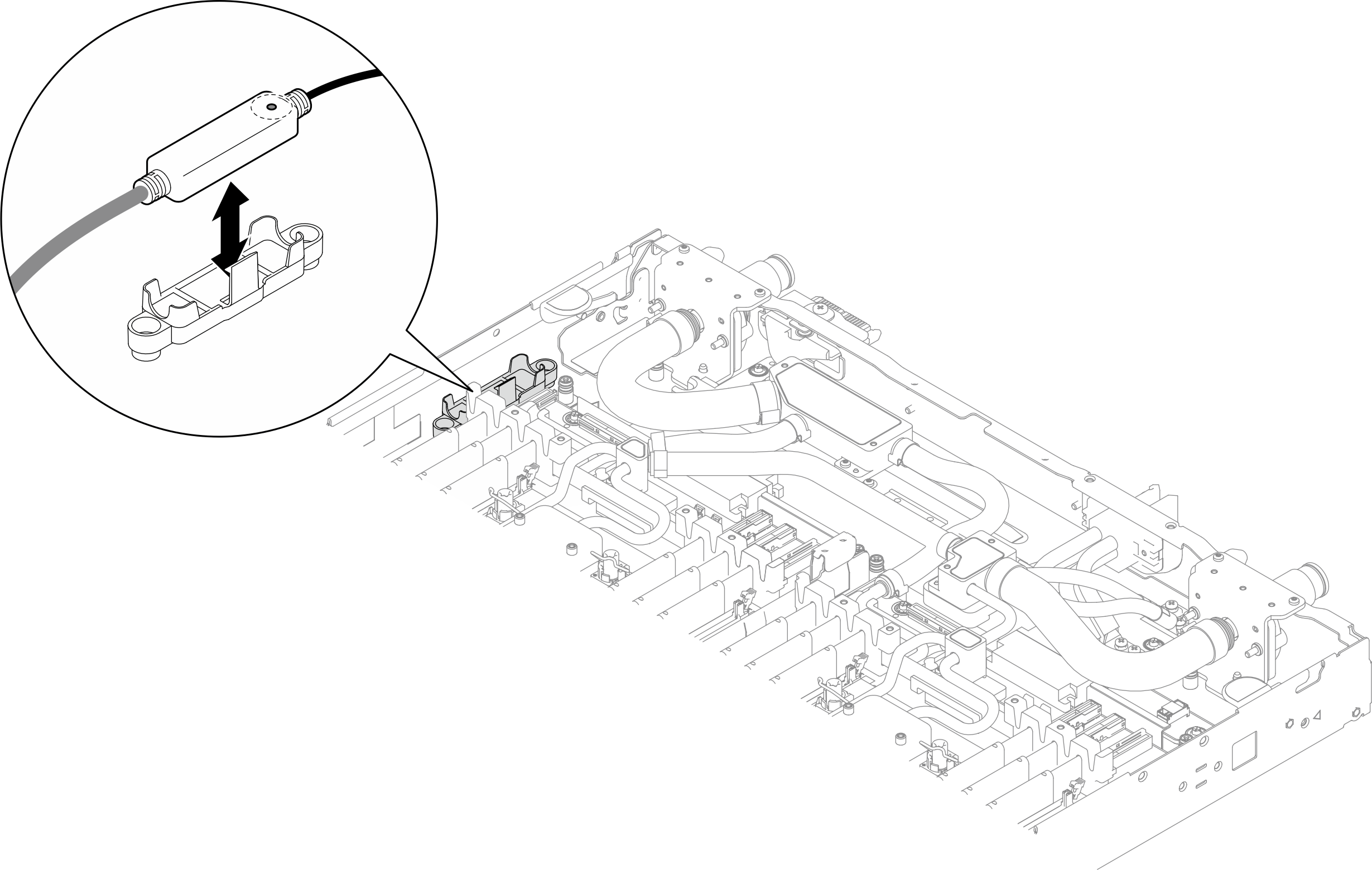

  4. Remove the leakage sensor from the tray.
    Figure 3. Leakage sensor removal

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
