Rear I/O connectors

The following illustrations show the internal connectors on the rear side of the node and expansion kit that are used for internal cable routing.

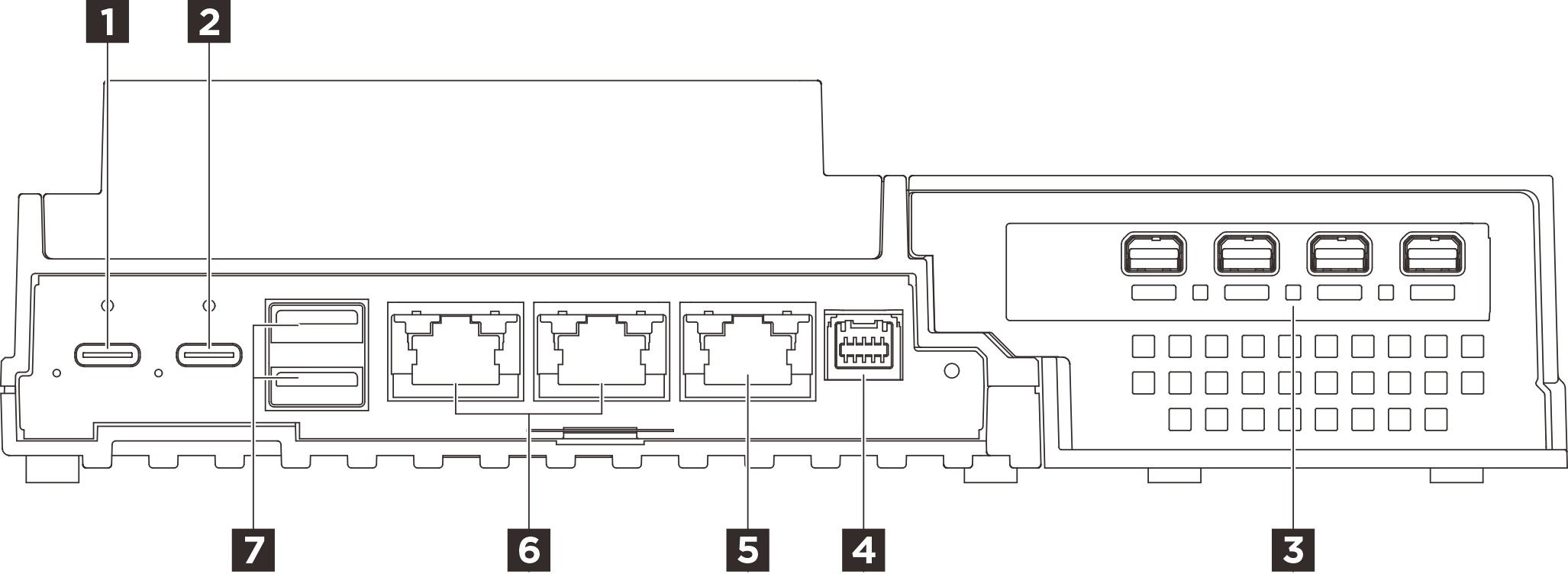

Figure 1. Rear I/O connectors

Table 1. Rear I/O connectors
1 USB 3.0 Type-C power connector 12 USB 3.0 Type-C power connector 2
3 PCIe adapter connectors (expansion kit)4 Fan control board connector
5 XCC system management port (10/100/1000 Mbps RJ-45)6 1GbE RJ-45 connectors
7 USB 3.2 Gen2 (10 Gbps) Type-A connectors
For more information about cable routing, see Internal cable routing.
