Enclosure power adapter cable routing
Follow the instructions in this section to learn how to do cable routing for enclosure power adapter.
Note
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
When routing the cables, ensure that all cables are routed appropriately through the cable guides and cable clips.
Cable routing for 1U2N power adapter
| Power adapter 1 | Power adapter 2 |
|---|---|

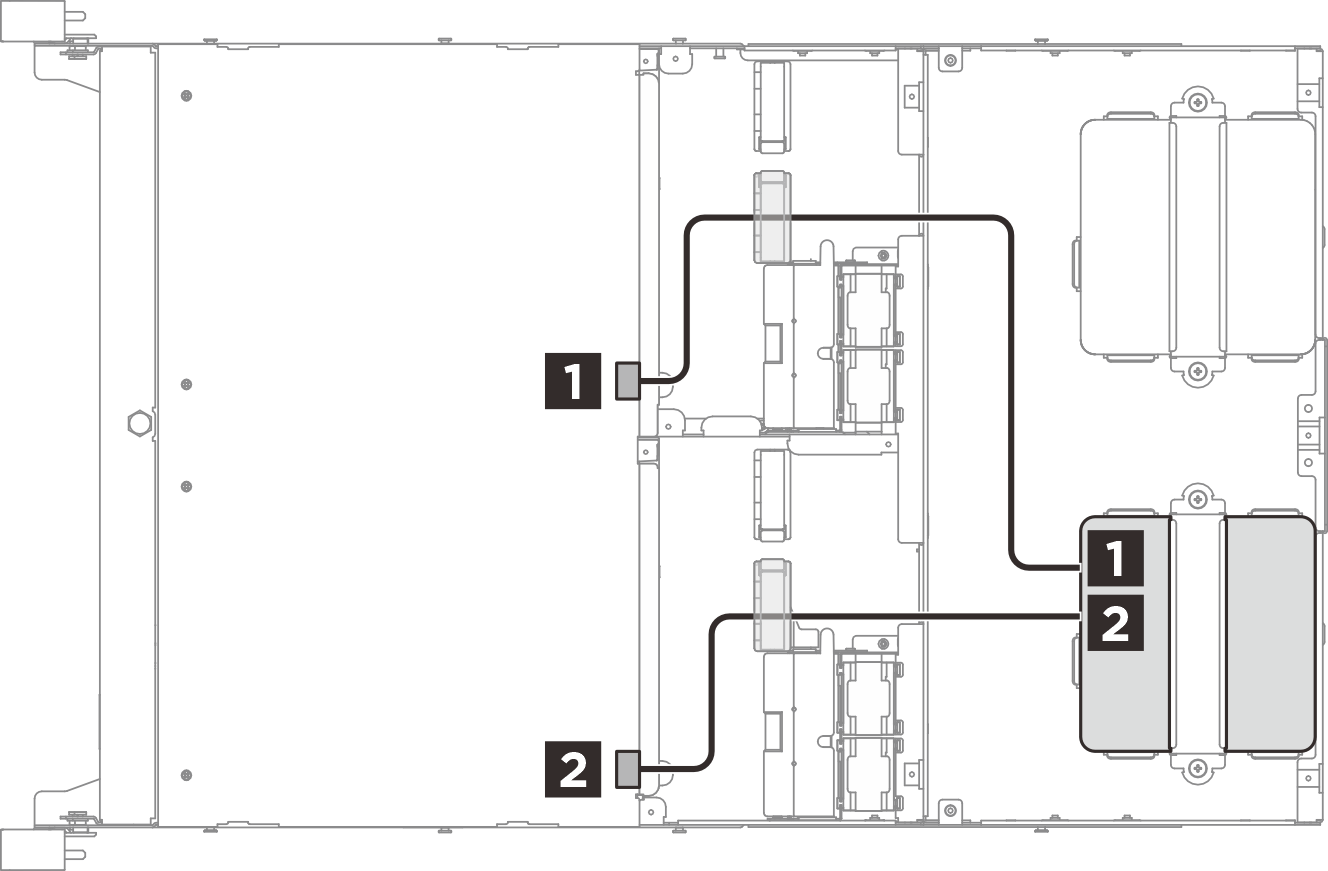

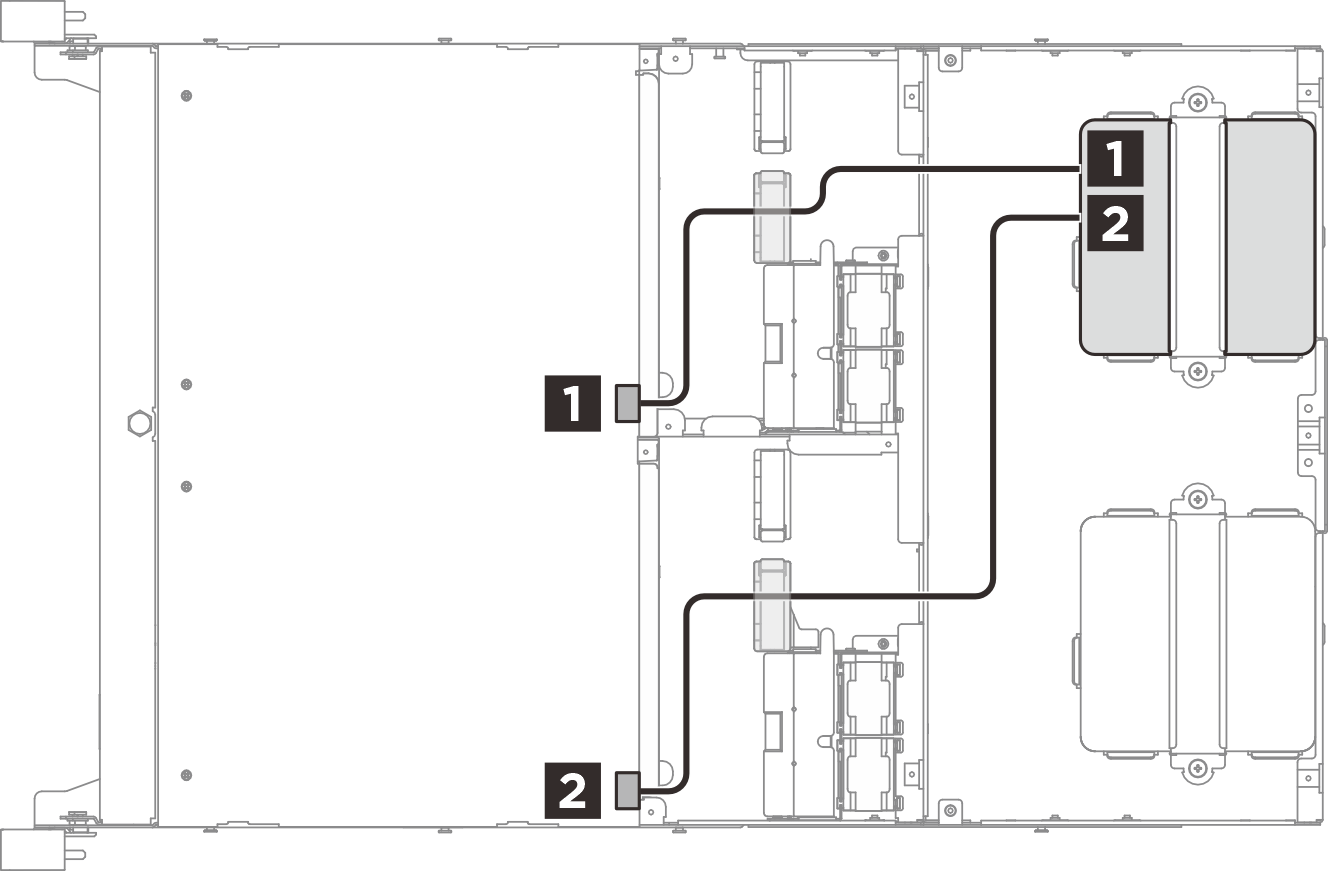

Figure 1. Cable routing for 1U2N power adapter  | Figure 2. Cable routing for 1U2N power adapter  |
| Cable | From: Node | To: Power adapter 1 |
|---|---|---|
| 1 | Power connector 1 –Bay1 | Power connectors (Power adapter 1) |
| 2 | Power connector 1 –Bay2 |
| Cable | From: Node | To: Power adapter 2 |
|---|---|---|
| 1 | Power connector 2 –Bay1 | Power connectors (Power adapter 2) |
| 2 | Power connector 2 –Bay2 |
Cable routing for 1U3N power adapter
| Power adapter 1 | Power adapter 2 |
|---|---|

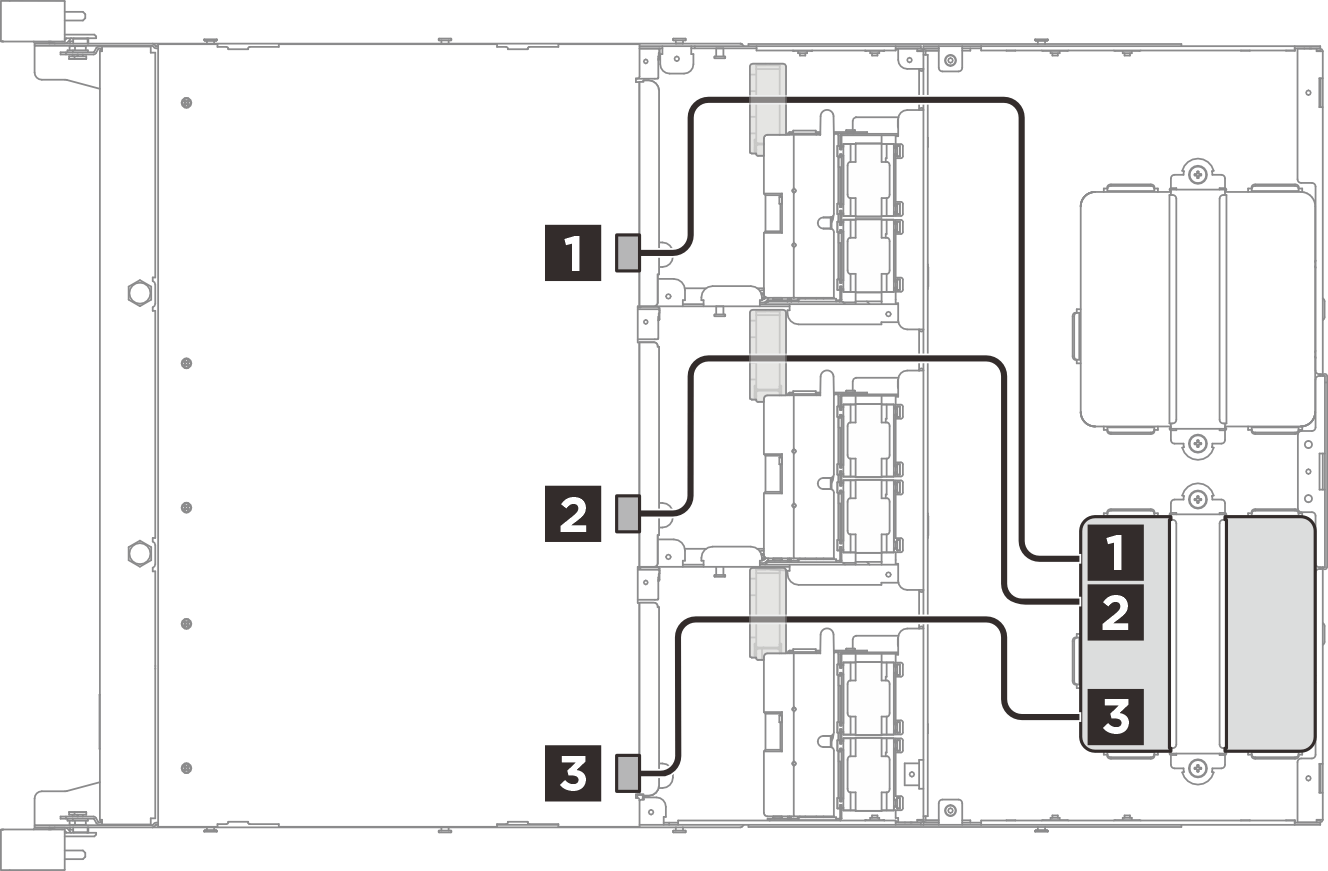

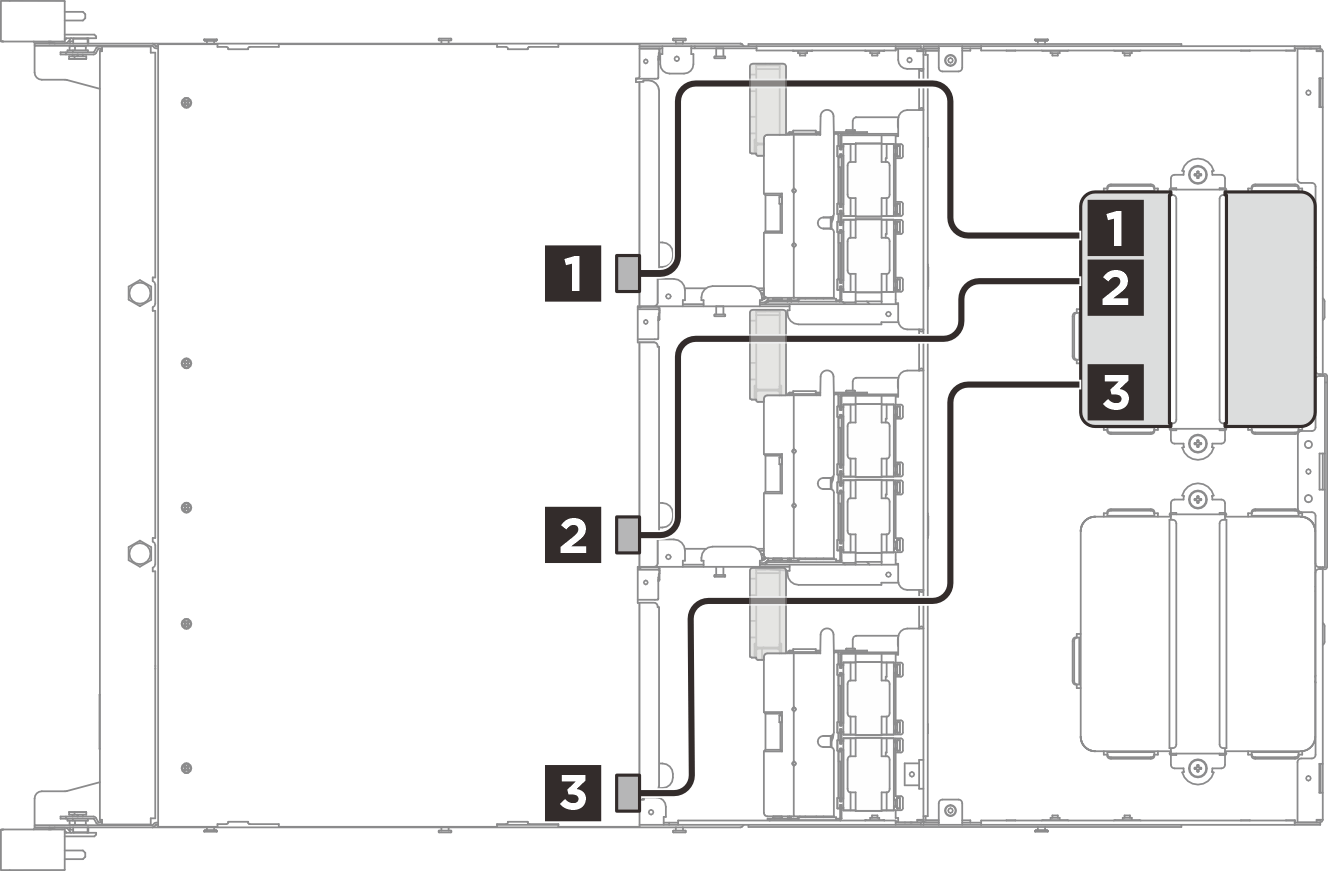

Figure 3. Cable routing for 1U3N power adapter  | Figure 4. Cable routing for 1U2N power adapter  |
| Cable | From: Node | To: Power adapter 1 |
|---|---|---|
| 1 | Power connector 1 –Bay1 | Power connectors (Power adapter 1) |
| 2 | Power connector 1 –Bay2 | |
| 3 | Power connector 1 –Bay3 |
| Cable | From: Node | To: Power adapter 2 |
|---|---|---|
| 1 | Power connector 2 –Bay1 | Power connectors (Power adapter 2) |
| 2 | Power connector 2 –Bay2 | |
| 3 | Power connector 2 –Bay3 |
