Enclosure fan control board cable routing
Follow the instructions in this section to learn how to do cable routing for fan control board.
Note
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
When routing the cables, ensure that all cables are routed appropriately through the cable guides and cable clips.
Cable routing for 1U2N fan control board

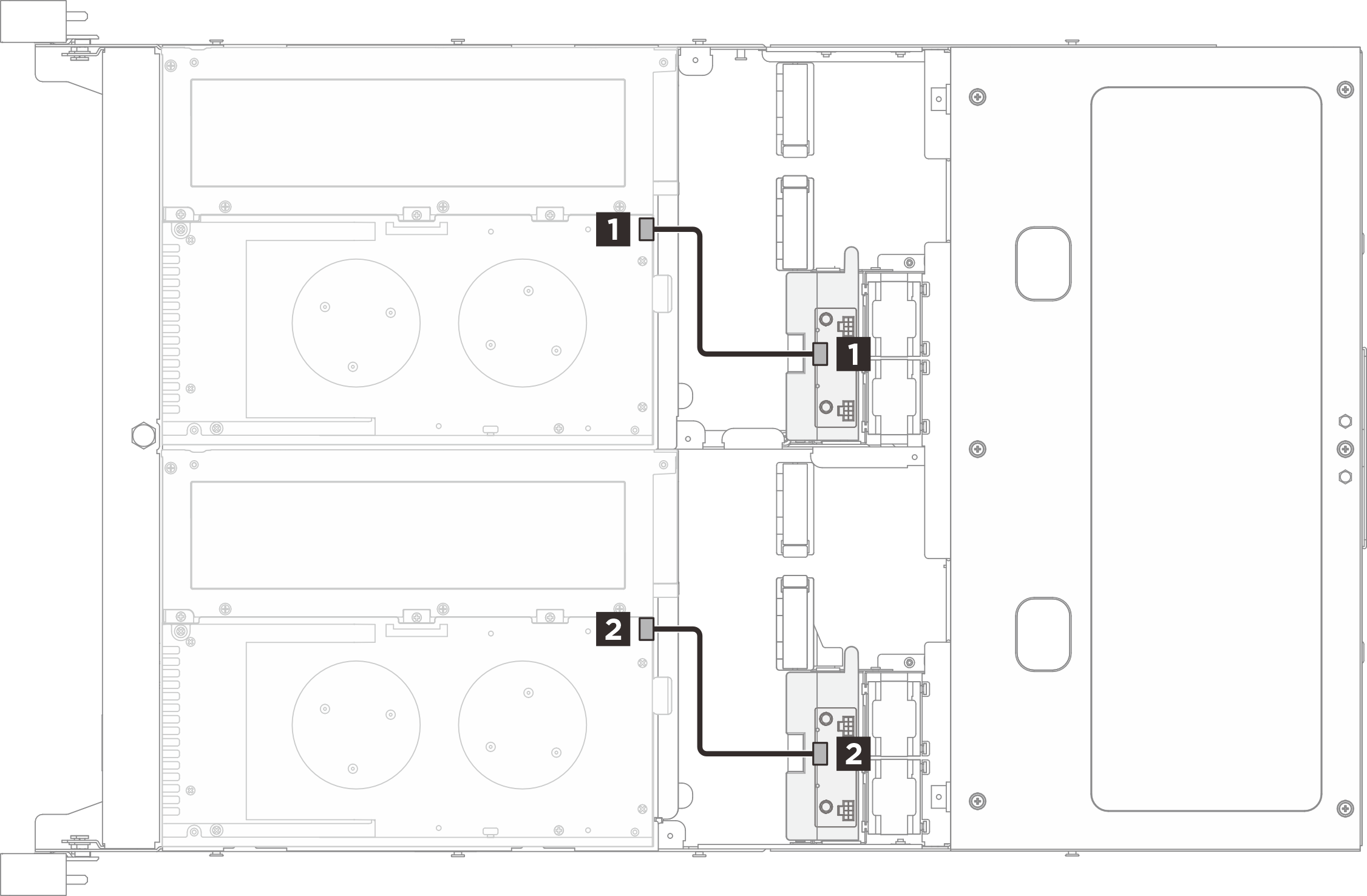

Figure 1. Cable routing for 1U2N fan control board
| Cable | From: Node | To: Fan control board | Cable length |
|---|---|---|---|
| 1 | Fan control board connector –Bay1 | Power and signal connector –Bay1 | 130 mm |
| 2 | Fan control board connector –Bay2 | Power and signal connector –Bay2 | 130 mm |
Cable routing for 1U3N fan control board

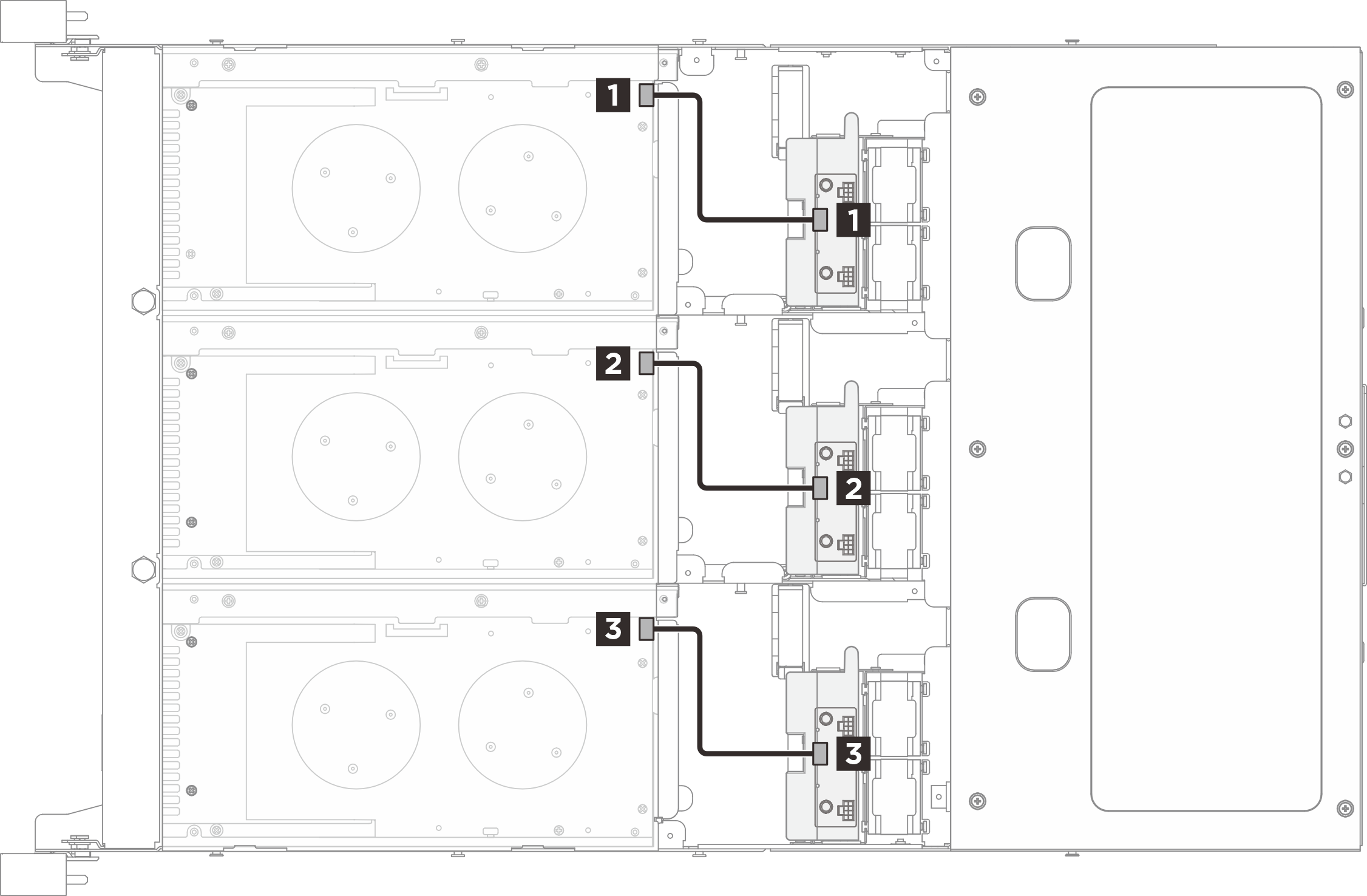

Figure 2. Cable routing for 1U3N fan control board
| Cable | From: Node | To: Fan control board | Cable length |
|---|---|---|---|
| 1 | Fan control board connector –Bay1 | Power and signal connector –Bay1 | 130 mm |
| 2 | Fan control board connector –Bay2 | Power and signal connector –Bay2 | 130 mm |
| 3 | Fan control board connector –Bay3 | Power and signal connector –Bay3 | 130 mm |
