ConnectX-8 adapter cable routing

This section provides cable routing information for the ConnectX-8 InfiniBand adapter.

  • Table 1: ConnectX-8 adapter is installed on Slot 1.

  • Table 2: ConnectX-8 adapter is installed on Slot 2.

  • Table 3: ConnectX-8 adapter is installed on Slot 3.

Table 1. Slot 1 cable routing

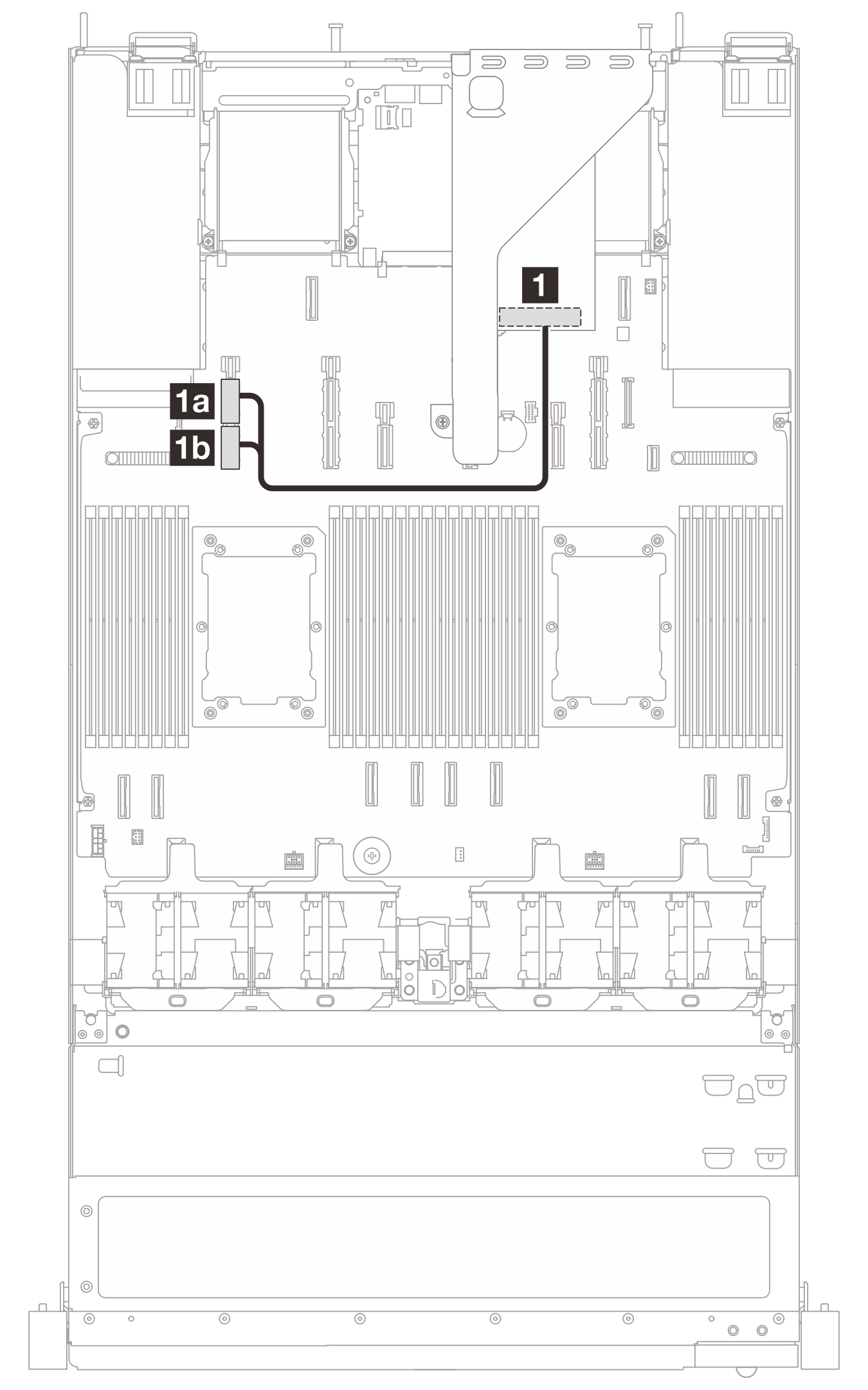

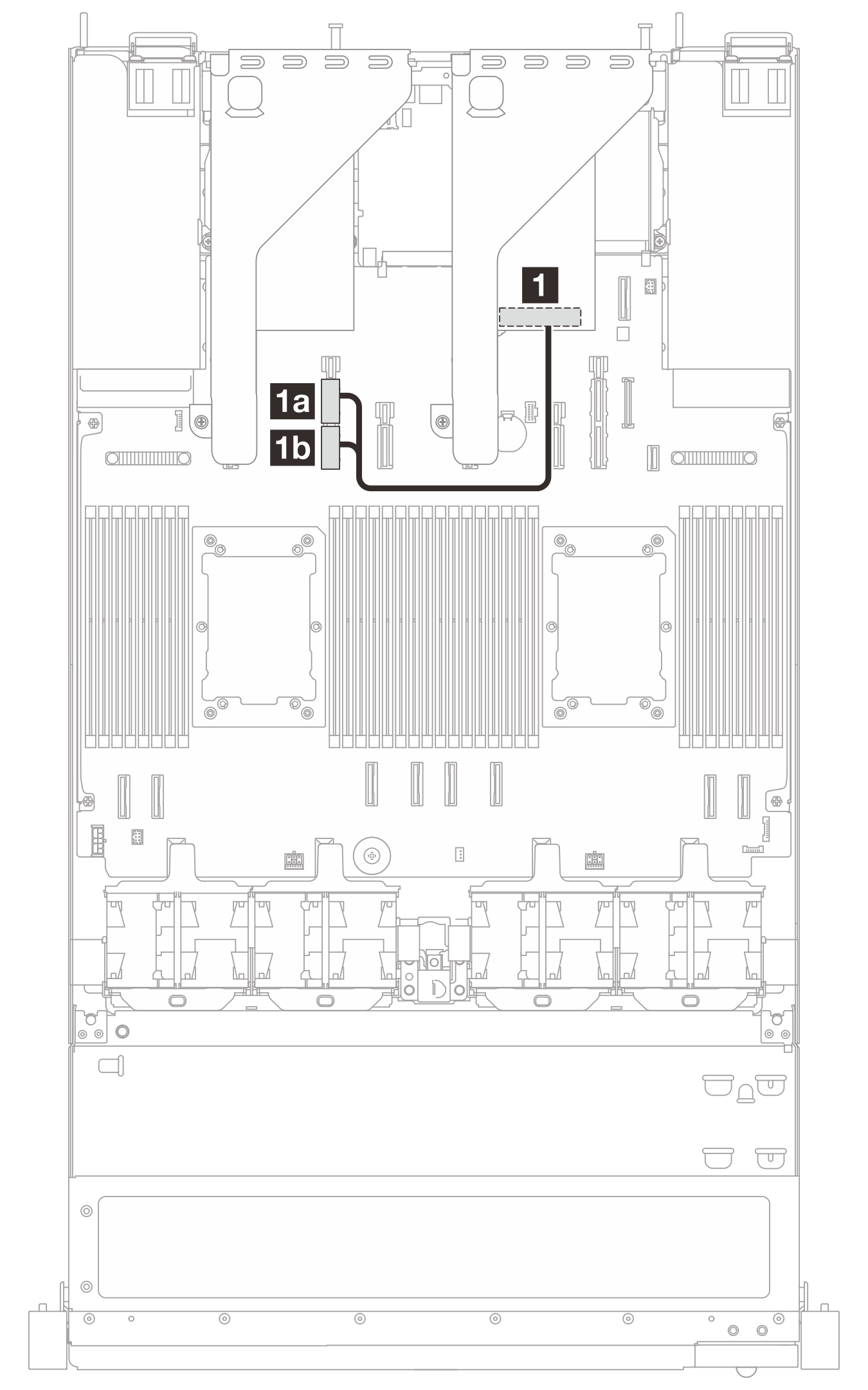

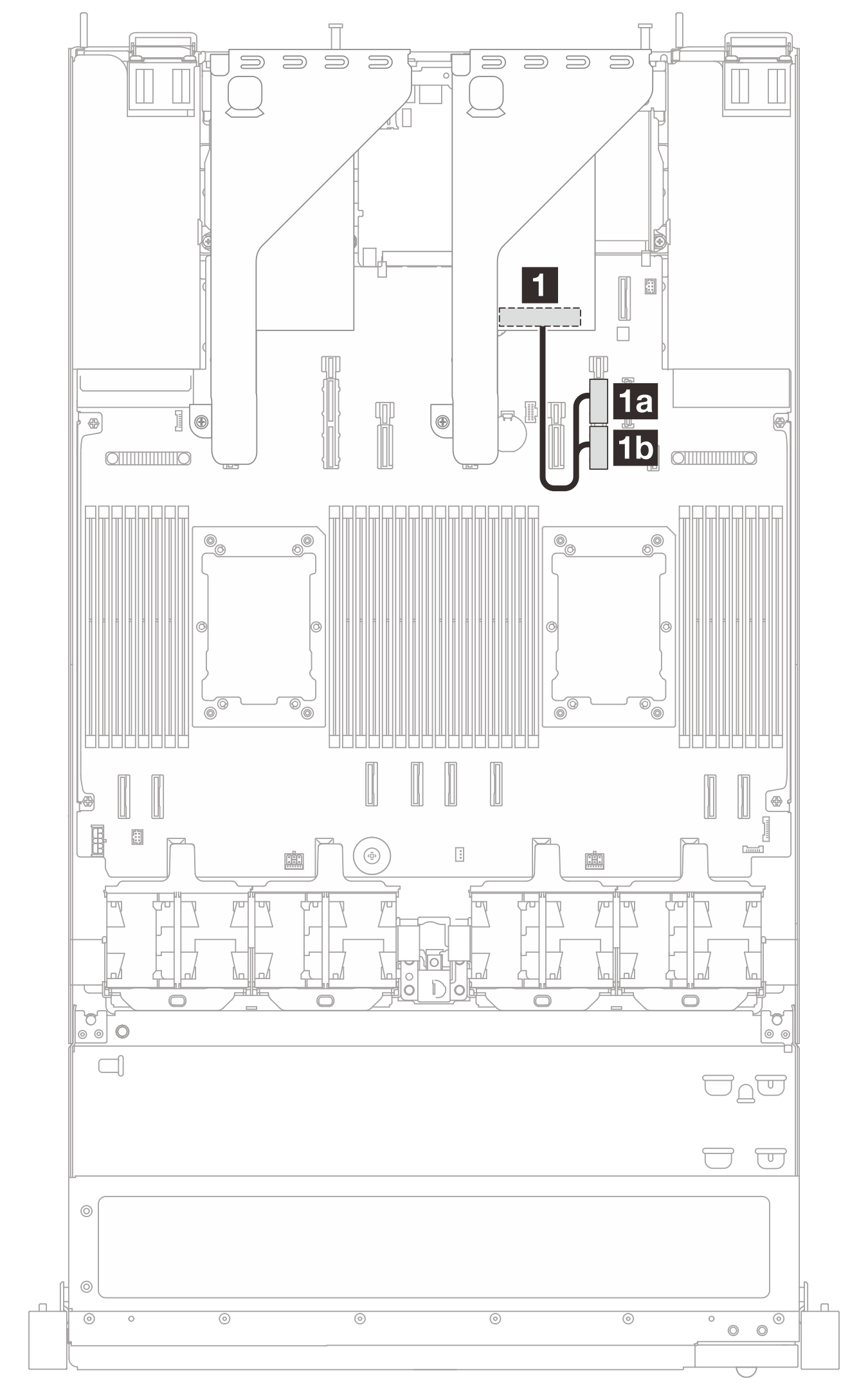

From Slot 1 to PCIe 9A/9BFrom Slot 1 to PCIe 13A/13BFrom Slot 1 to PCIe 15A/15B
Table 2. Slot 2 cable routing

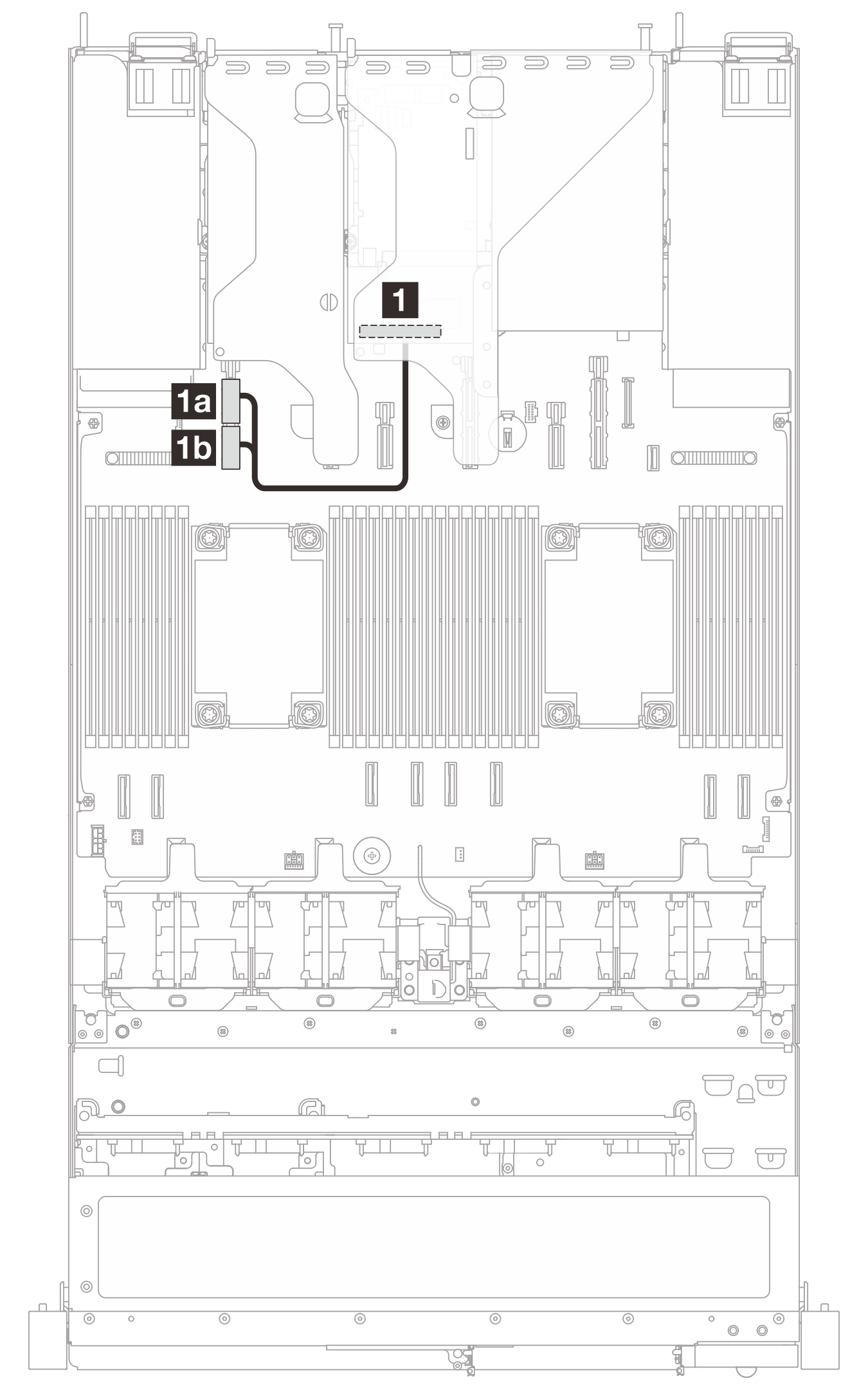

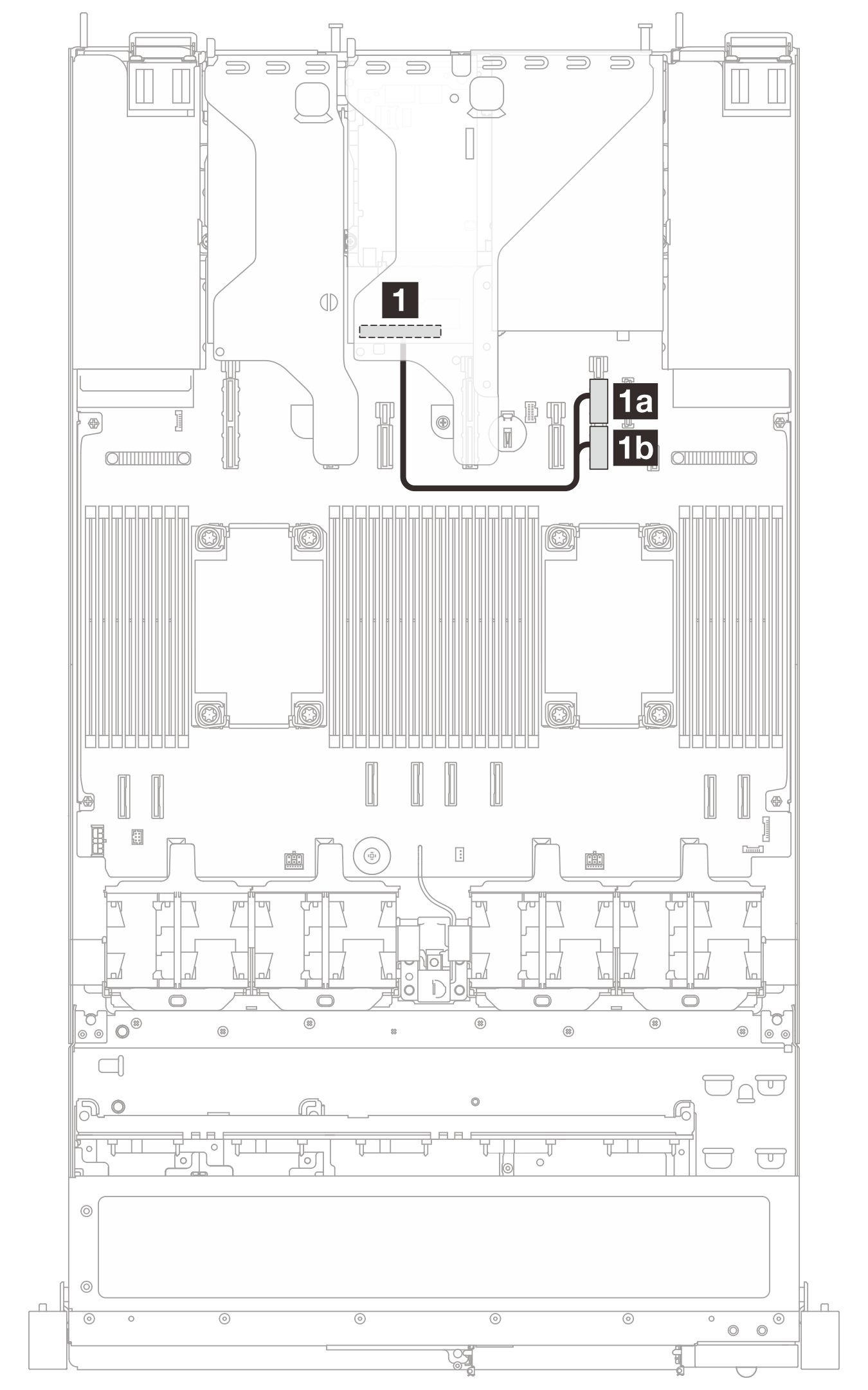

From Slot 2 to PCIe 9A/9BFrom Slot 2 to PCIe 15A/15B
Table 3. Slot 3 cable routing

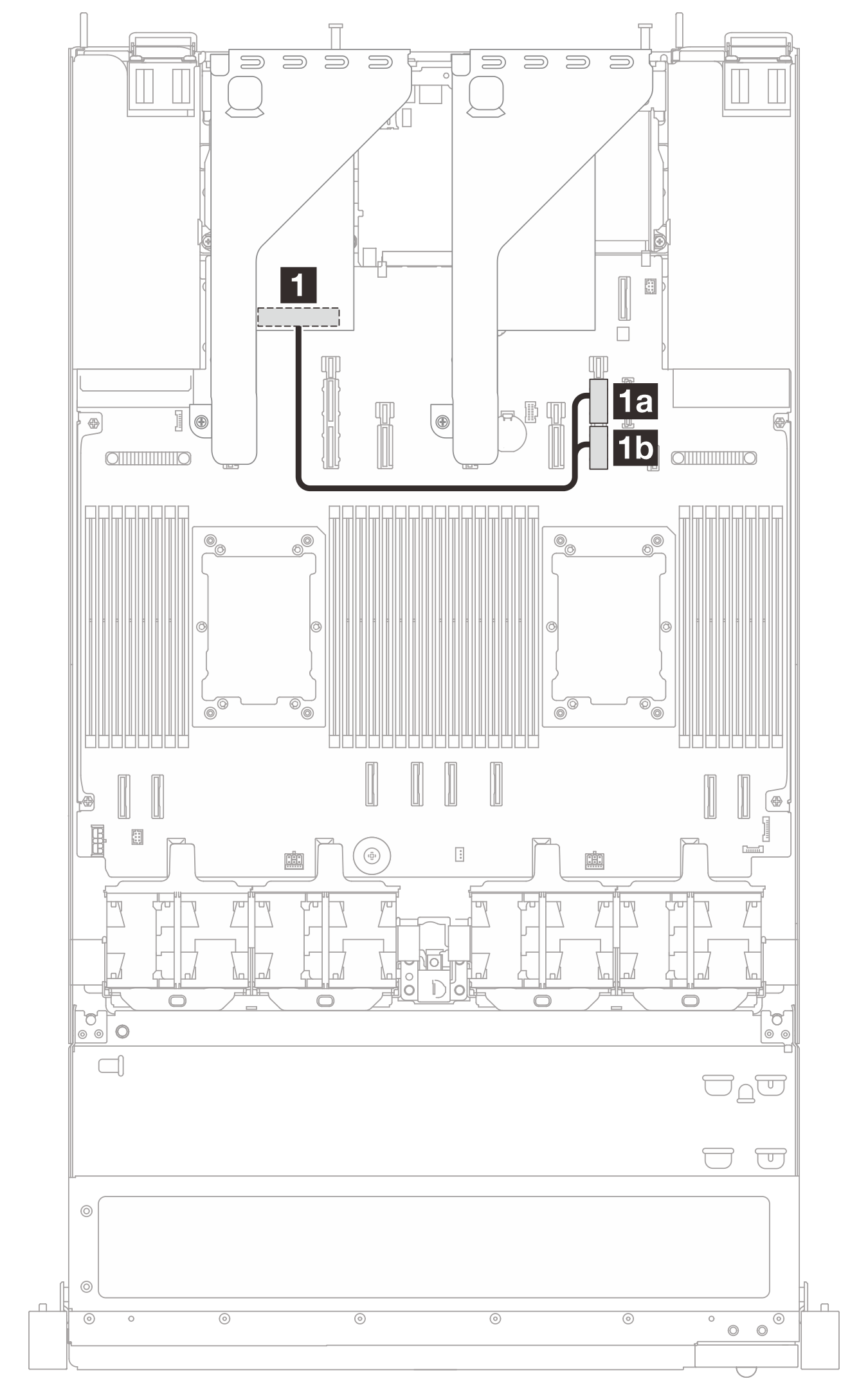

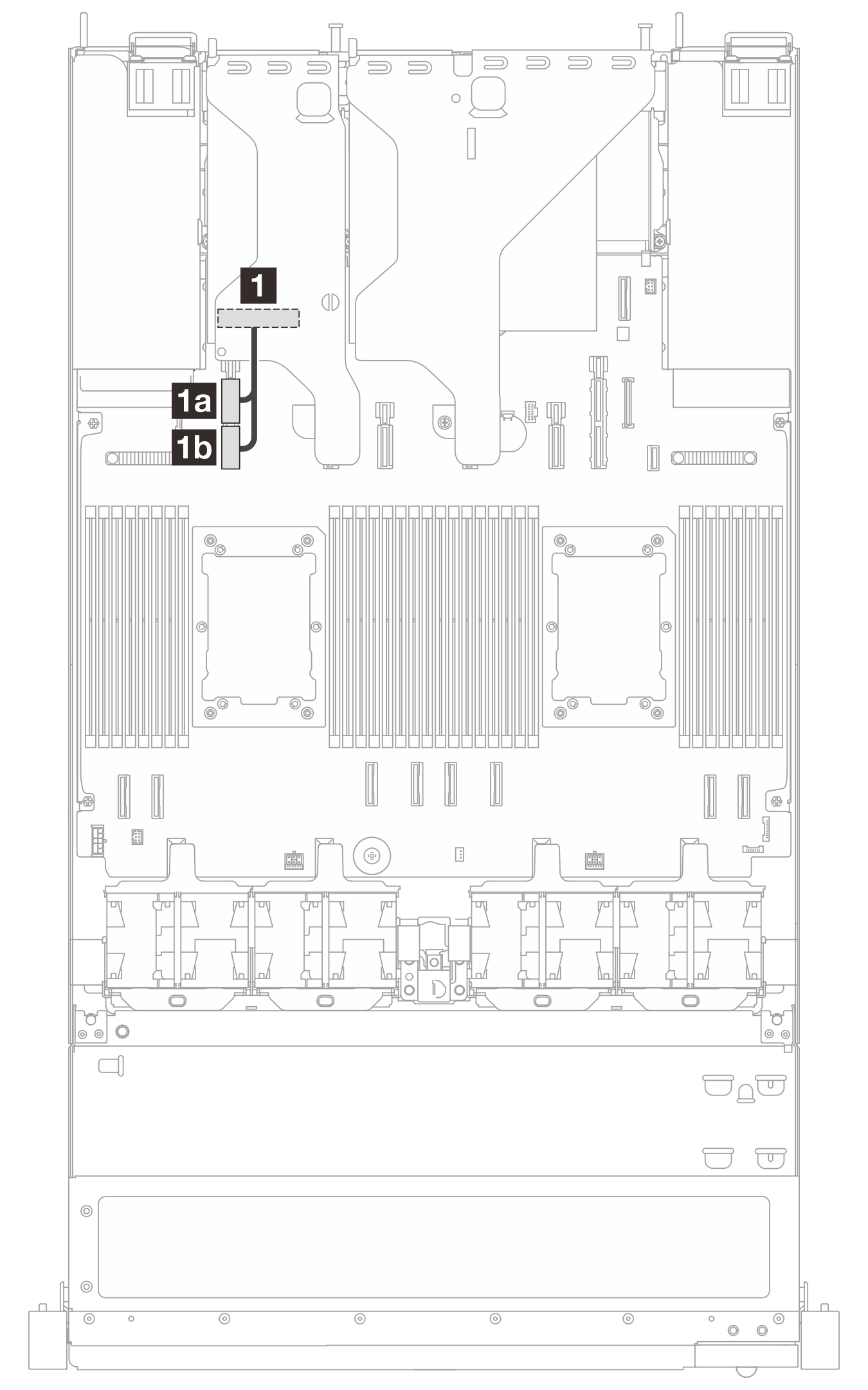

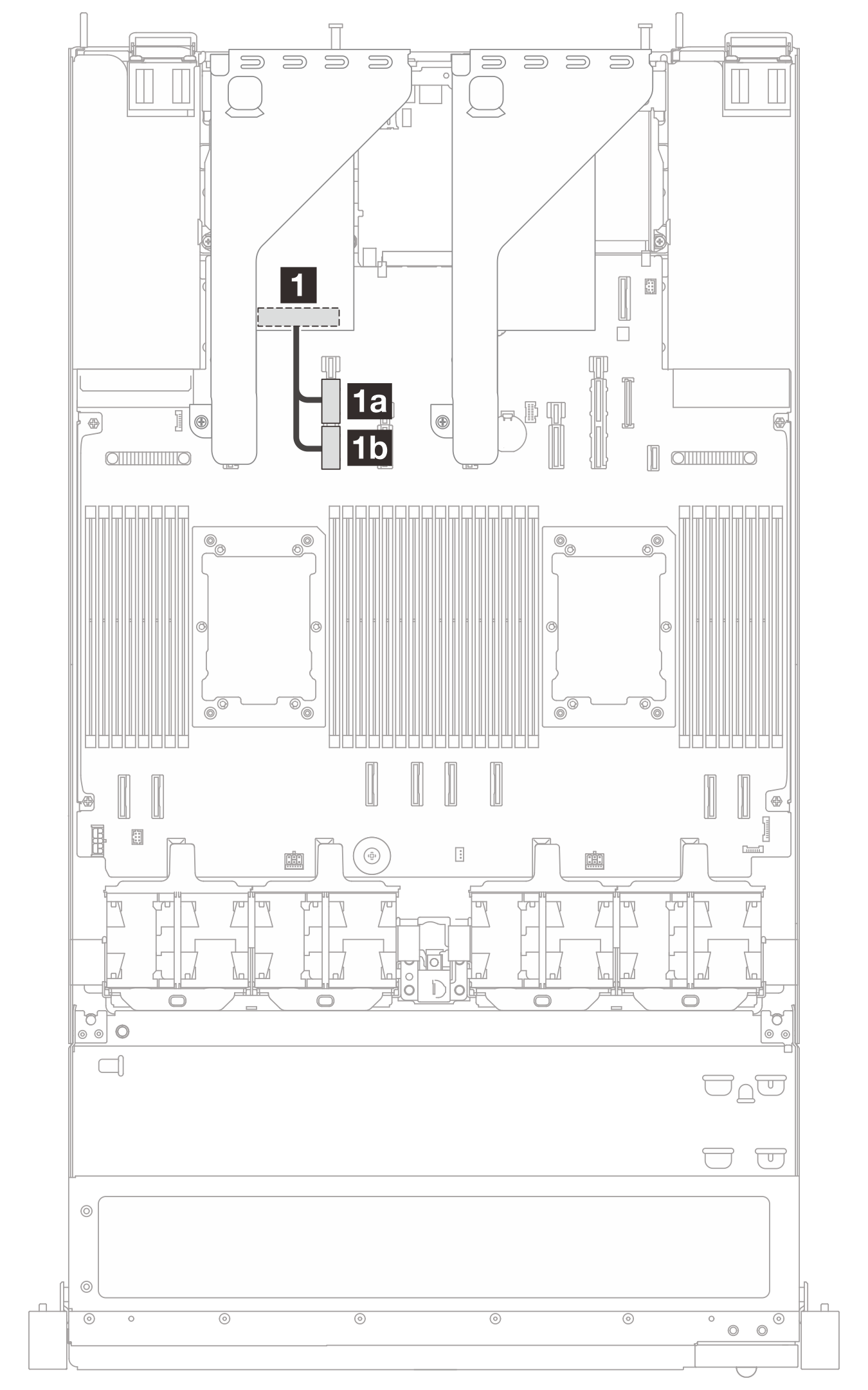

From Slot 3 to PCIe 9A/9BFrom Slot 3 to PCIe 13A/13BFrom Slot 3 to PCIe 15A/15B

For the cable routing for the specific configuration, see:
