Server without Compute Complex Neptune Core Module

This section provides cable routing information for the ConnectX-8 InfiniBand adapter when Compute Complex Neptune Core Module is not installed.

Table 1: The server is equipped with one processor and one ConnectX-8 adapter.
Table 2: The server is equipped with two processors and one ConnectX-8 adapter.
Table 3: The server is equipped with two processors and two ConnectX-8 adapters.

Note

LP: Low-profile
FH: Full-height

Table 1. One processor and one ConnectX-8 adapter

From Slot 1 to PCIe 9A/9B

Configuration	Riser bracket	From	To
System fan-pack Processor Neptune Air Module	FH FH + rear 2.5–inch drive	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
Processor Neptune Core Module	FH FH + rear M.2 drive	Slot 1	`1a` PCIe 9A `1b` PCIe 9B

Table 2. Two processors and one ConnectX-8 adapter

From Slot 1 to PCIe 13A/13B	From Slot 1 to PCIe 15A/15B	From Slot 2 to PCIe 9A/9B

From Slot 2 to PCIe 15A/15B	From Slot 3 to PCIe 9A/9B

Configuration	Riser bracket	From	To
System fan-pack Processor Neptune Air Module	FH + FH	Slot 1	`1a` PCIe 13A `1b` PCIe 13B
	FH + FH	Slot 3	`1a` PCIe 9A `1b` PCIe 9B
	FH + rear 2.5–inch drive	Slot 1	`1a` PCIe 13A `1b` PCIe 13B
	FH (x16) + LP (x16)	Slot 1	`1a` PCIe 15A `1b` PCIe 15B
	FH (x16) + LP (x16)	Slot 2	`1a` PCIe 15A `1b` PCIe 15B
	FH (x8) + LP (x8) + LP	Slot 3	`1a` PCIe 9A `1b` PCIe 9B
	FH (x16) + LP (x16) + M.2	Slot 1	`1a` PCIe 15A `1b` PCIe 15B
	FH (x16) + LP (x16) + M.2	Slot 2	`1a` PCIe 9A `1b` PCIe 9B
Processor Neptune Core Module	FH + rear M.2 drive	Slot 1	`1a` PCIe 15A `1b` PCIe 15B
	FH + LP	Slot 1	`1a` PCIe 15A `1b` PCIe 15B
	FH + LP	Slot 3	`1a` PCIe 9A `1b` PCIe 9B

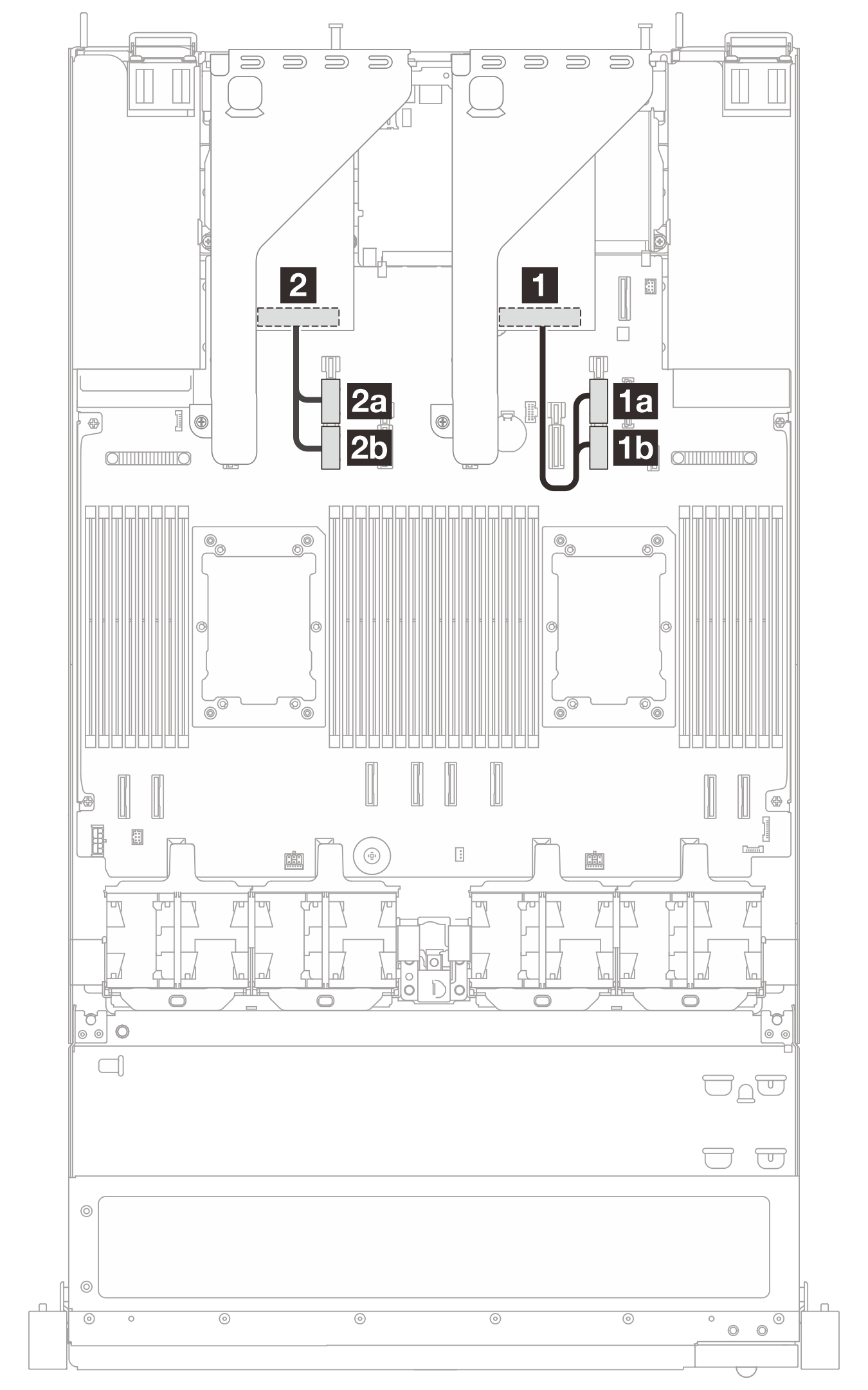

Table 3. Two processor and two ConnectX-8 adapters

Configuration: System fan-pack Processor Neptune Air Module	Configuration: Processor Neptune Core Module
Riser bracket: FH + FH	Riser bracket: FH + LP
`1` From Slot 1 to PCIe 9A/9B `2` From Slot 3 to PCIe 13A/13B	`1` From Slot 1 to PCIe 9A/9B `2` From Slot 3 to PCIe 15A/15B
