Server with Compute Complex Neptune Core Module

This section provides cable routing information for the ConnectX-8 InfiniBand adapter when Compute Complex Neptune Core Module is installed.

  • Table 1: The server is equipped with two processors and one ConnectX-8 adapter.

  • Table 2: The server is equipped with two processors and two ConnectX-8 adapters.

Note

  • LP: Low-profile

  • FH: Full-height

Table 1. Two processors and one ConnectX-8 adapter
From Slot 3 to PCIe 15A/15BFrom Slot 1 to PCIe 9A/9B
ChassisRiser bracketFromTo
EDSFF chassisLP: 8X1T

Slot 3

1a PCIe 15A 1b PCIe 15B
FH: 8X1T + front M.2 drive

Slot 1

1a PCIe 9A 1b PCIe 9B
10x2.5'' chassisFH:

  • 8x2.5'' NVMe

  • 10xU.3 AnyBay

Slot 1

1a PCIe 9A 1b PCIe 9B

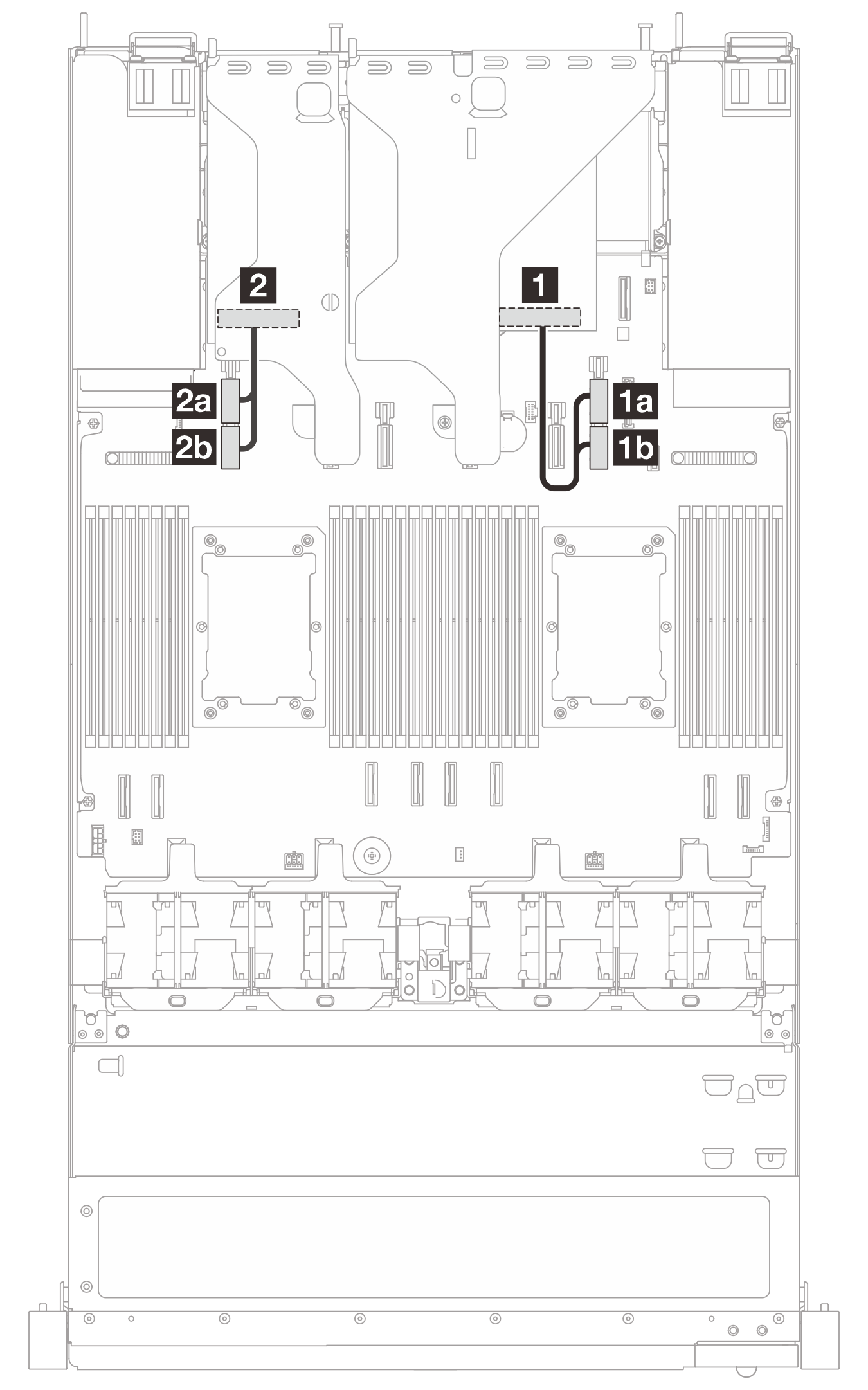

Table 2. Two processor and two ConnectX-8 adapters
ChassisEDSFF chassis10x2.5'' chassis
Riser bracketFH + LP

  • 4X1T

FH + LP

  • 4x2.5'' SAS/SATA/NVMe

  • 8x2.5'' SAS/SATA

  • 8xU.3 AnyBay

  • 10x2.5'' SAS/SATA

Cable

1 From Slot 1 to PCIe 9A/9B

2 From Slot 3 to PCIe 15A/15B
