Server with Compute Complex Neptune Core Module

This section provides cable routing information for the ConnectX-8 InfiniBand adapter when Compute Complex Neptune Core Module is installed.

  • Table 1: The server is equipped with two processors and one ConnectX-8 adapter.

  • Table 2: The server is equipped with two processors and two ConnectX-8 adapters.

Note

  • LP: Low-profile

  • FH: Full-height

Table 1. Two processors and one ConnectX-8 adapter
ChassisRiser bracket

From ConnectX-8

adapter on:

To

EDSFF chassis

LP

  • 8X1T

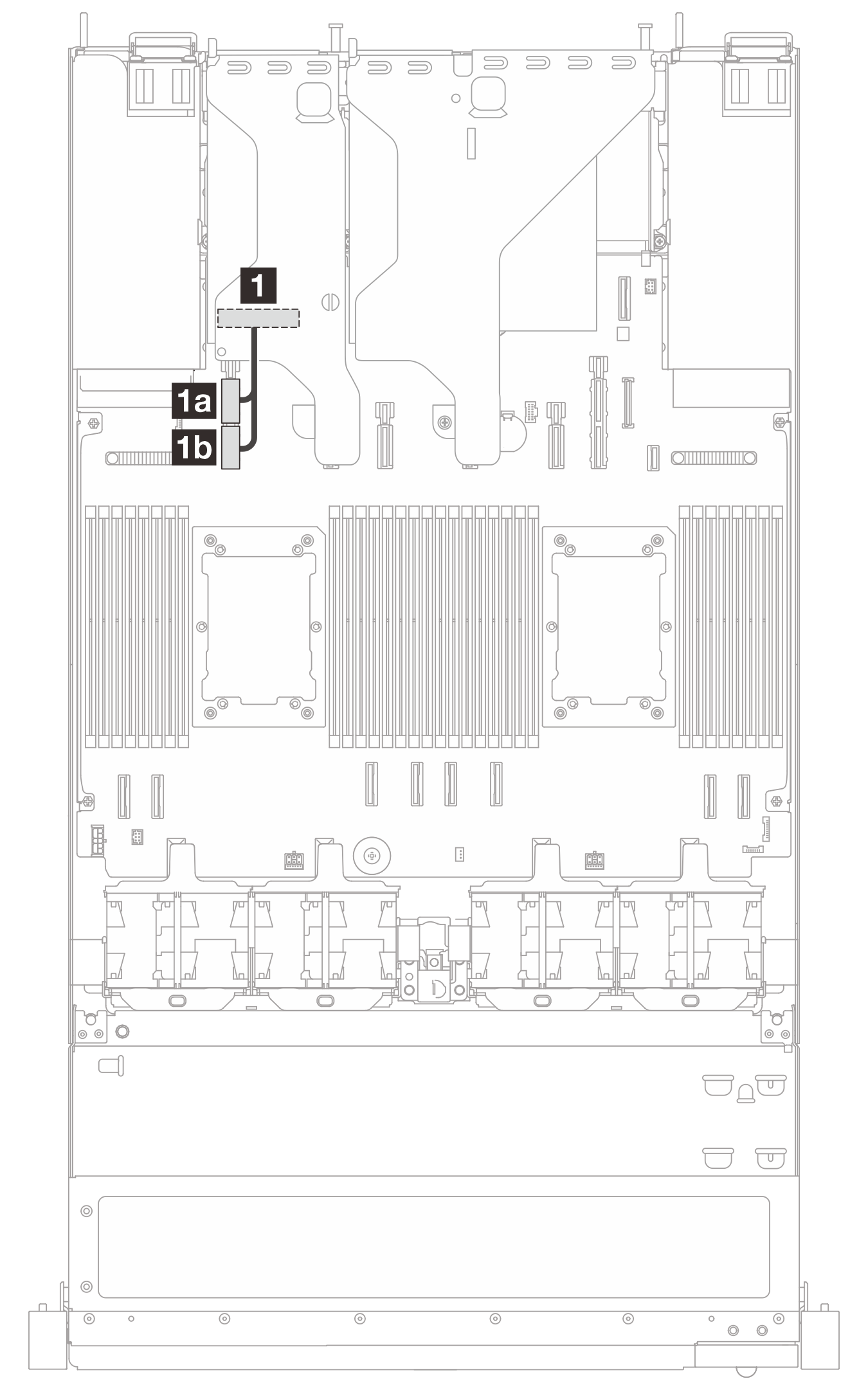

Slot 3

1a PCIe 15A

1b PCIe 15B

FH

  • 8X1T + front M.2 drive

Slot 1

1a PCIe 9A

1b PCIe 9B

10x2.5-inch chassis

FH

  • 8x2.5'' NVMe

  • 10xU.3 AnyBay

Slot 1

1a PCIe 9A

1b PCIe 9B

Table 2. Two processor and two ConnectX-8 adapters
Server installed withRiser bracket

From ConnectX-8

adapter on:

To

EDSFF chassis

FH + LP

  • 4X1T

Slot 1

1a PCIe 9A

1b PCIe 9B

Slot 3

1a PCIe 15A

1b PCIe 15B

10x2.5-inch chassis

FH + LP

  • 4x2.5'' SAS/SATA/NVMe

  • 8x2.5'' SAS/SATA

  • 8xU.3 AnyBay

  • 10x2.5'' SAS/SATA

Slot 1

1a PCIe 9A

1b PCIe 9B

Slot 3

1a PCIe 15A

1b PCIe 15B
