Server with Compute Complex Neptune Core Module

This section provides cable routing information for the ConnectX-8 InfiniBand adapter when Compute Complex Neptune Core Module is installed.

Table 1: The server is equipped with two processors and one ConnectX-8 adapter.
Table 2: The server is equipped with two processors and two ConnectX-8 adapters.

Note

LP: Low-profile
FH: Full-height

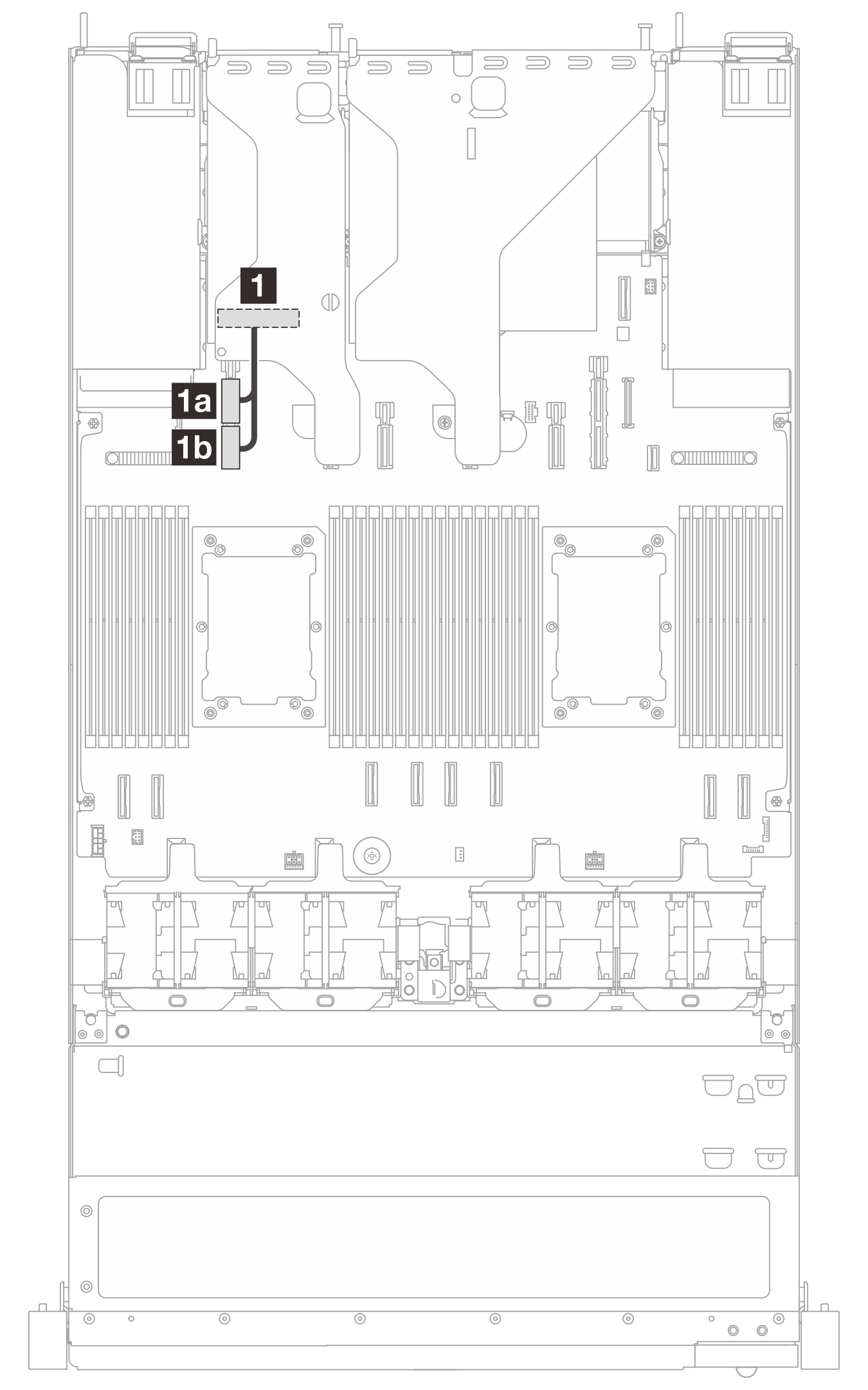

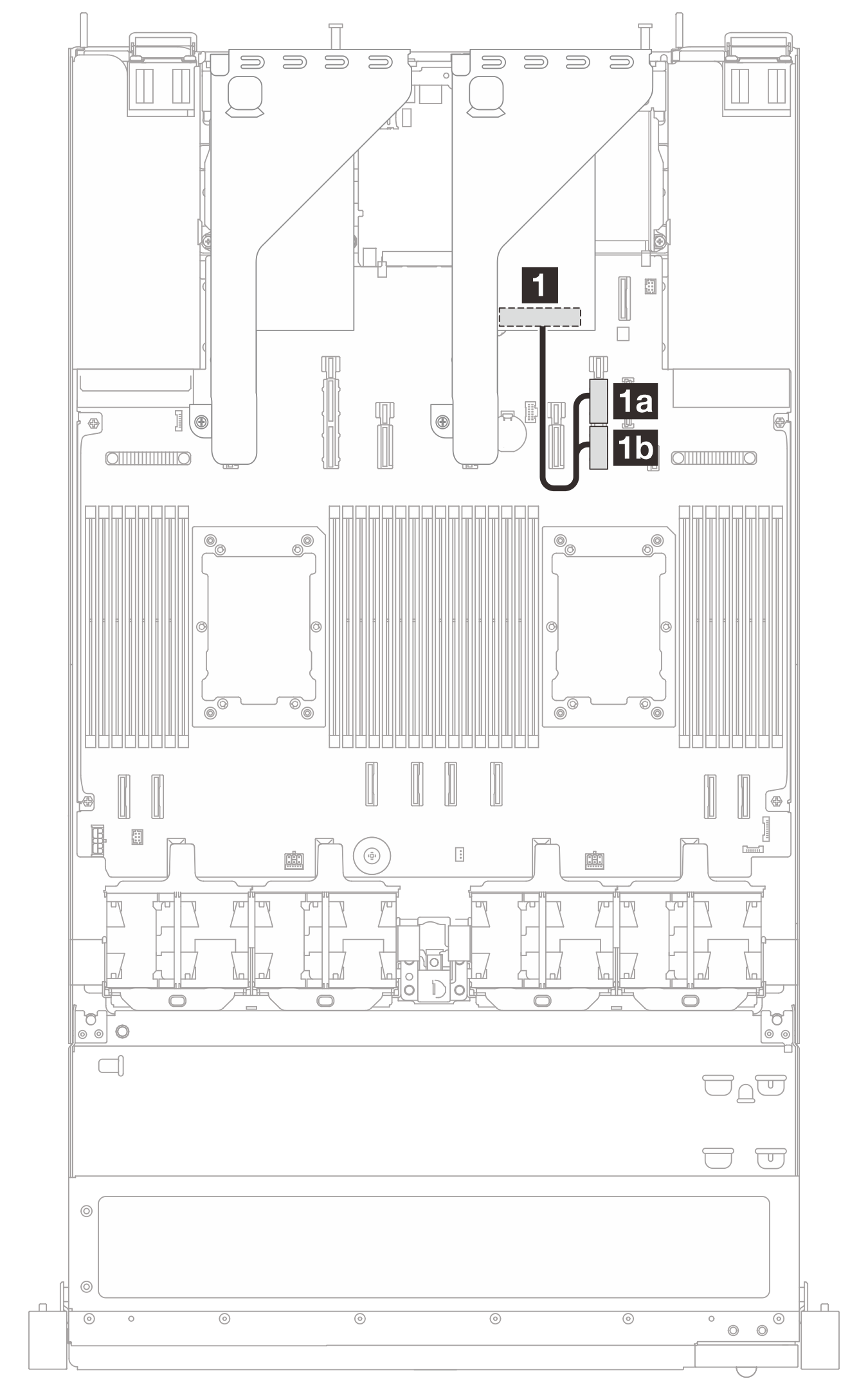

Table 1. Two processors and one ConnectX-8 adapter
Chassis	Riser bracket	From ConnectX-8 adapter on:	To
EDSFF chassis	LP 8X1T	Slot 3	`1a` PCIe 15A `1b` PCIe 15B
EDSFF chassis	FH 8X1T + front M.2 drive	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
10x2.5-inch chassis	FH 8x2.5'' NVMe 10xU.3 AnyBay	Slot 1	`1a` PCIe 9A `1b` PCIe 9B

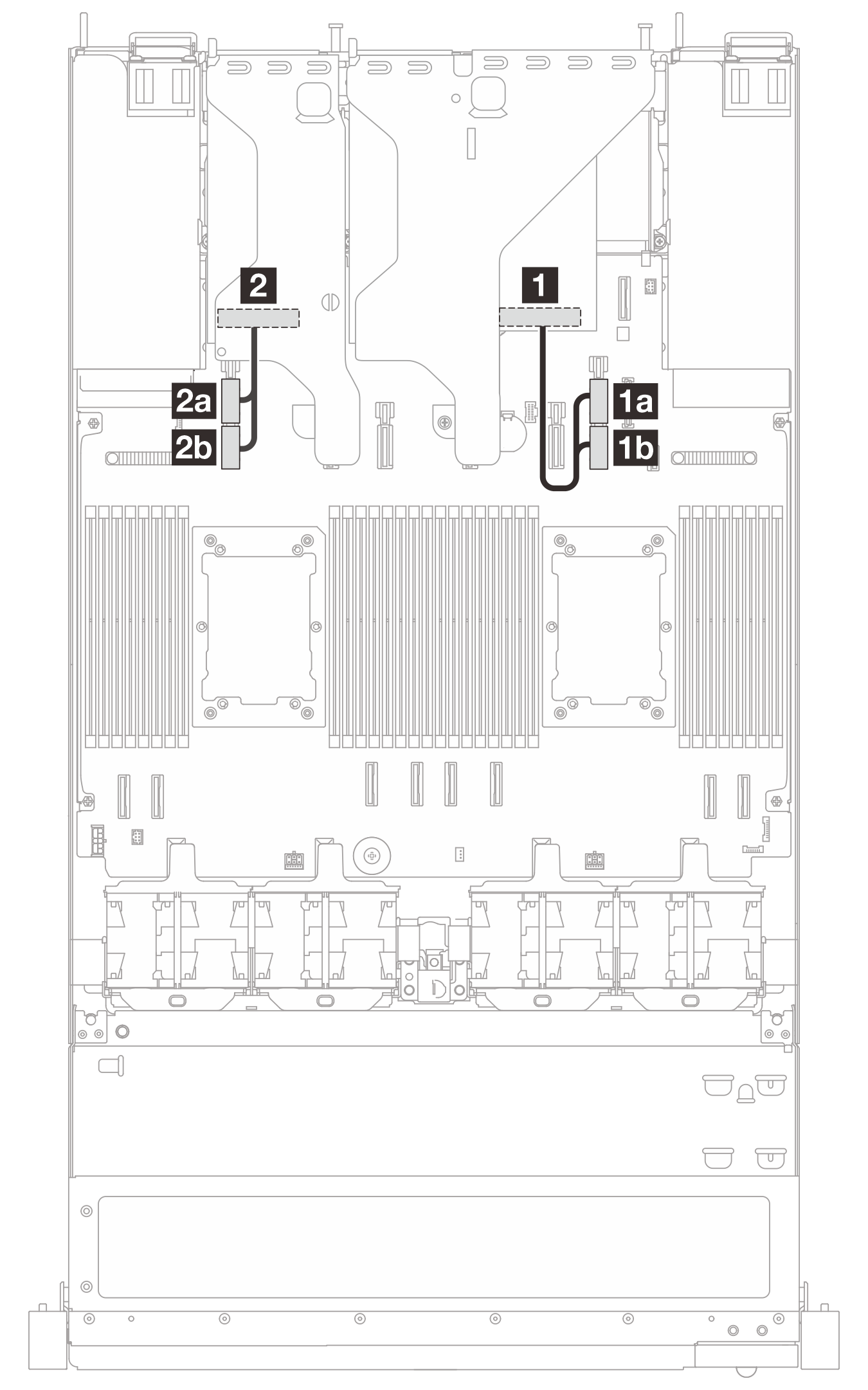

Table 2. Two processor and two ConnectX-8 adapters
Server installed with	Riser bracket	From ConnectX-8 adapter on:	To
EDSFF chassis	FH + LP 4X1T	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
EDSFF chassis	FH + LP 4X1T	Slot 3	`1a` PCIe 15A `1b` PCIe 15B
10x2.5-inch chassis	FH + LP 4x2.5'' SAS/SATA/NVMe 8x2.5'' SAS/SATA 8xU.3 AnyBay 10x2.5'' SAS/SATA	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
10x2.5-inch chassis		Slot 3	`1a` PCIe 15A `1b` PCIe 15B
