Server without Compute Complex Neptune Core Module

This section provides cable routing information for the ConnectX-8 InfiniBand adapter when Compute Complex Neptune Core Module is not installed.

Table 1: The server is equipped with one processor and one ConnectX-8 adapter.
Table 2: The server is equipped with two processors and one ConnectX-8 adapter.
Table 3: The server is equipped with two processors and two ConnectX-8 adapters.

Note

LP: Low-profile
FH: Full-height

Table 1. One processor and one ConnectX-8 adapter
Server installed with	Riser bracket	From ConnectX-8 adapter on:	To
System fan-pack Processor Neptune Air Module	FH FH + rear 2.5–inch drive	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
Processor Neptune Core Module	FH FH + rear M.2 drive	Slot 1	`1a` PCIe 9A `1b` PCIe 9B

Table 2. Two processors and one ConnectX-8 adapter
Configuration	Riser bracket	From ConnectX-8 adapter on:	To

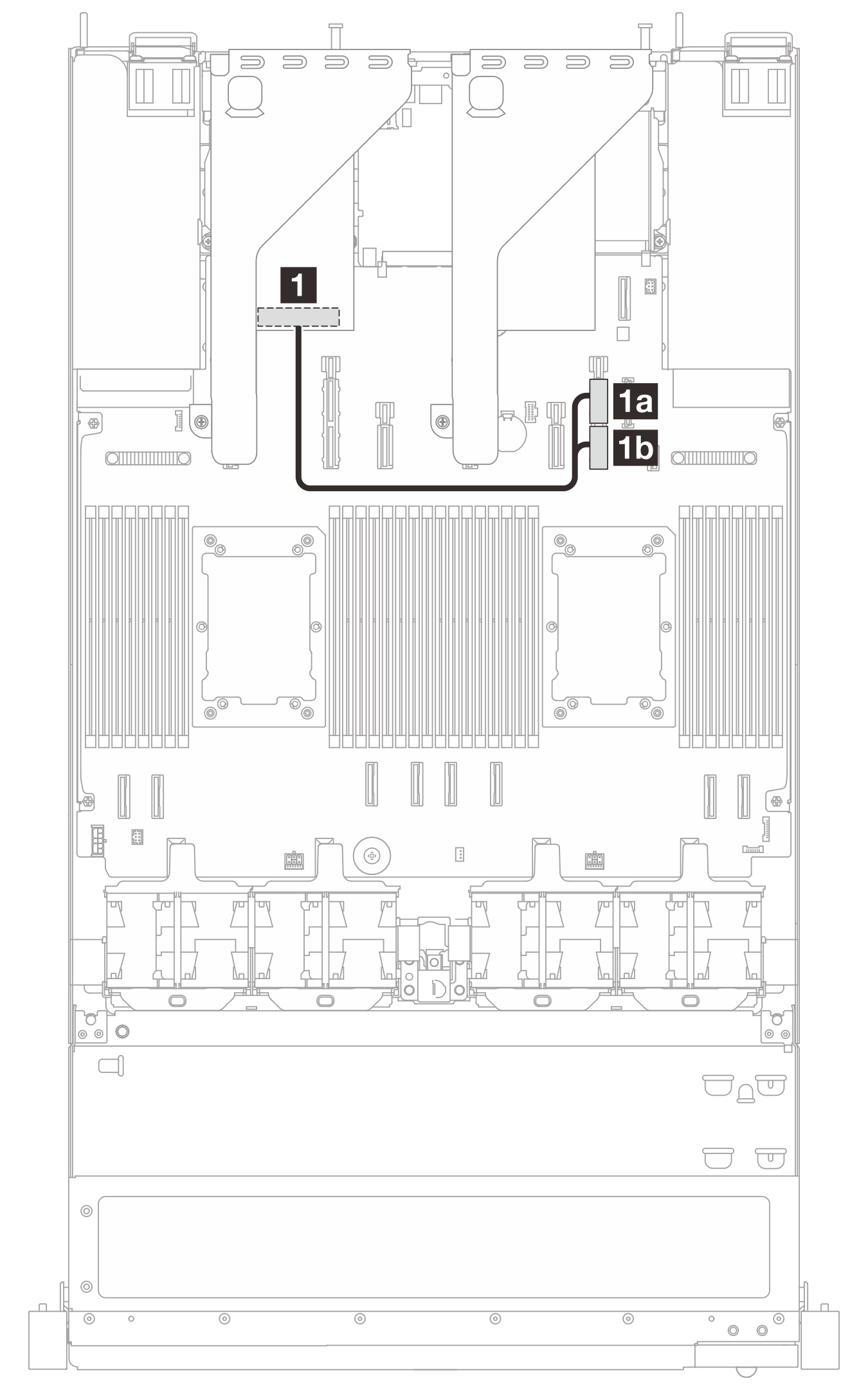

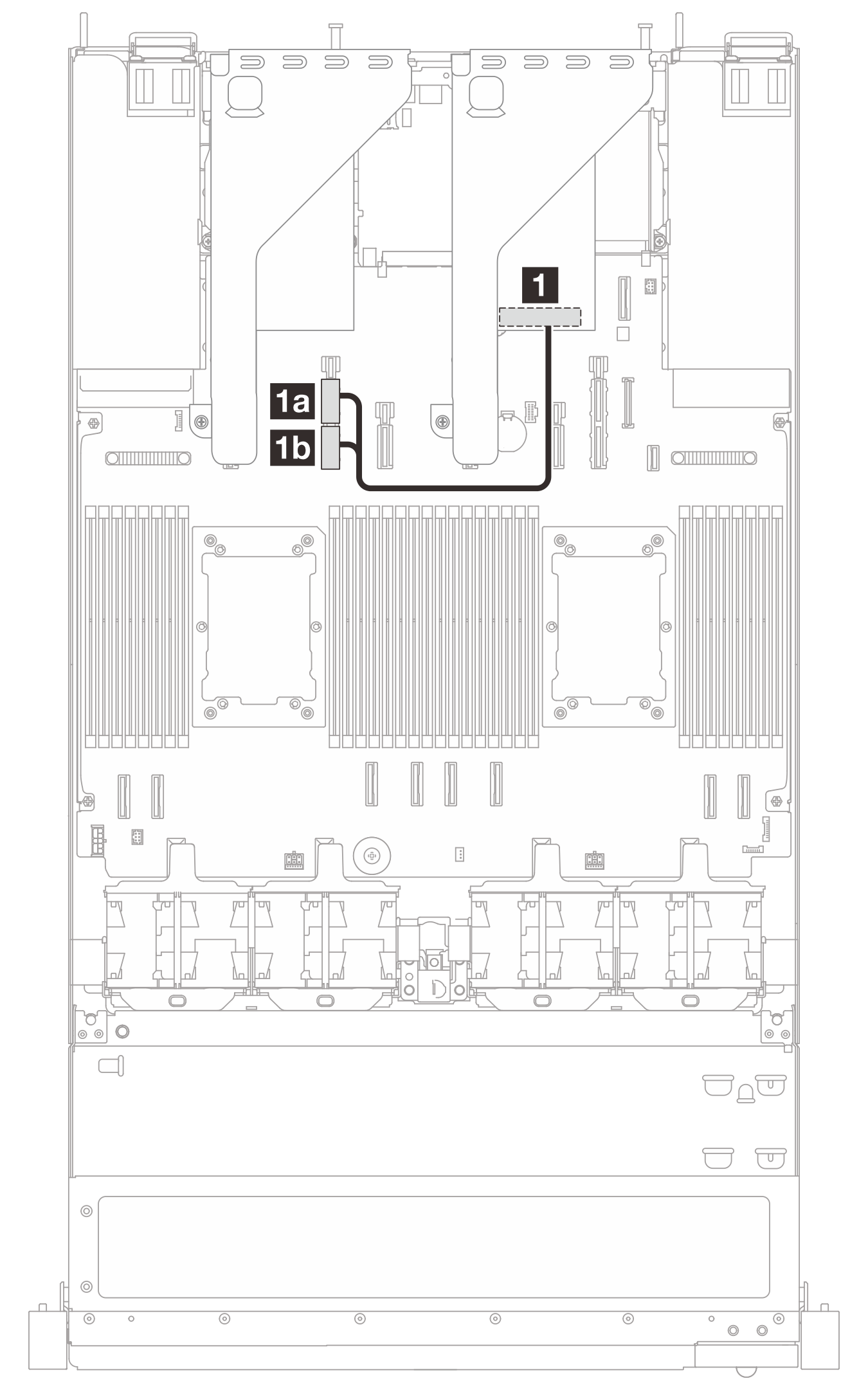

System fan-pack Processor Neptune Air Module	FH + FH	Slot 1 / Slot 3	For slot 1: `1a` PCIe 13A `1b` PCIe 13B For slot 3: `1a` PCIe 9A `1b` PCIe 9B
	FH + rear 2.5–inch drive	Slot 1	`1a` PCIe 13A `1b` PCIe 13B

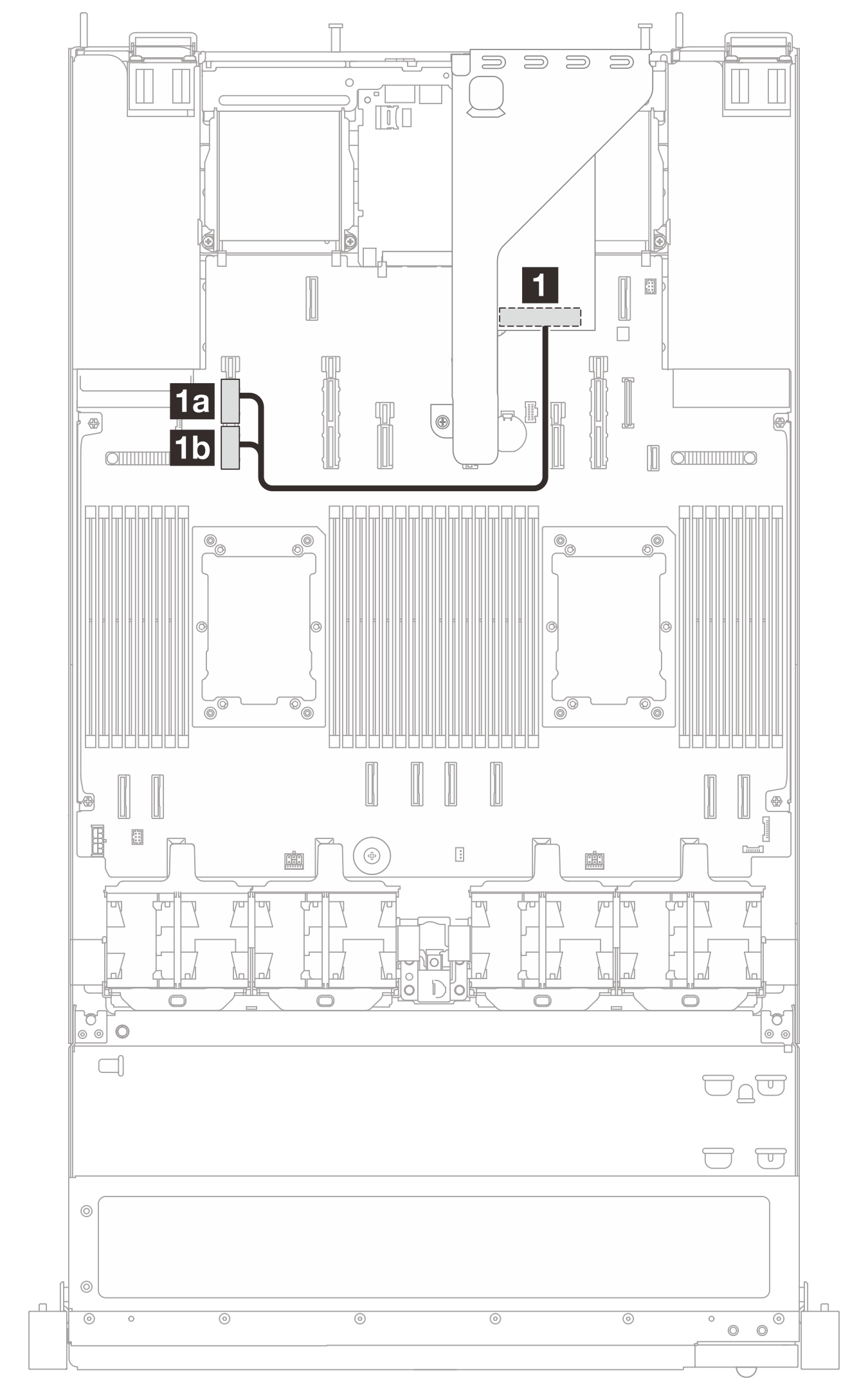

	FH (x16) + LP (x16)	Slot 1 / Slot 2	`1a` PCIe 15A `1b` PCIe 15B
	FH (x8) + LP (x8) + LP	Slot 3	`1a` PCIe 9A `1b` PCIe 9B

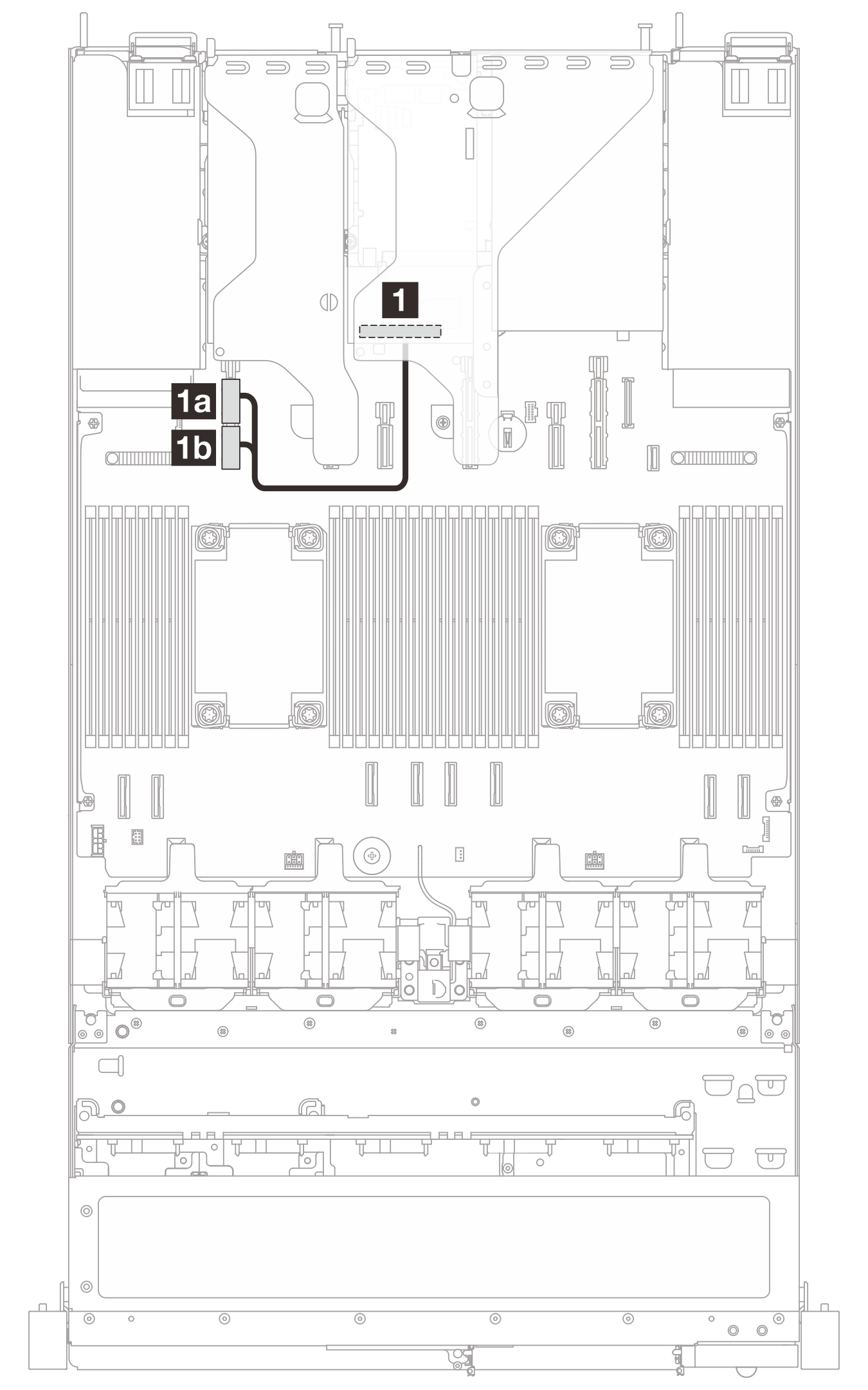

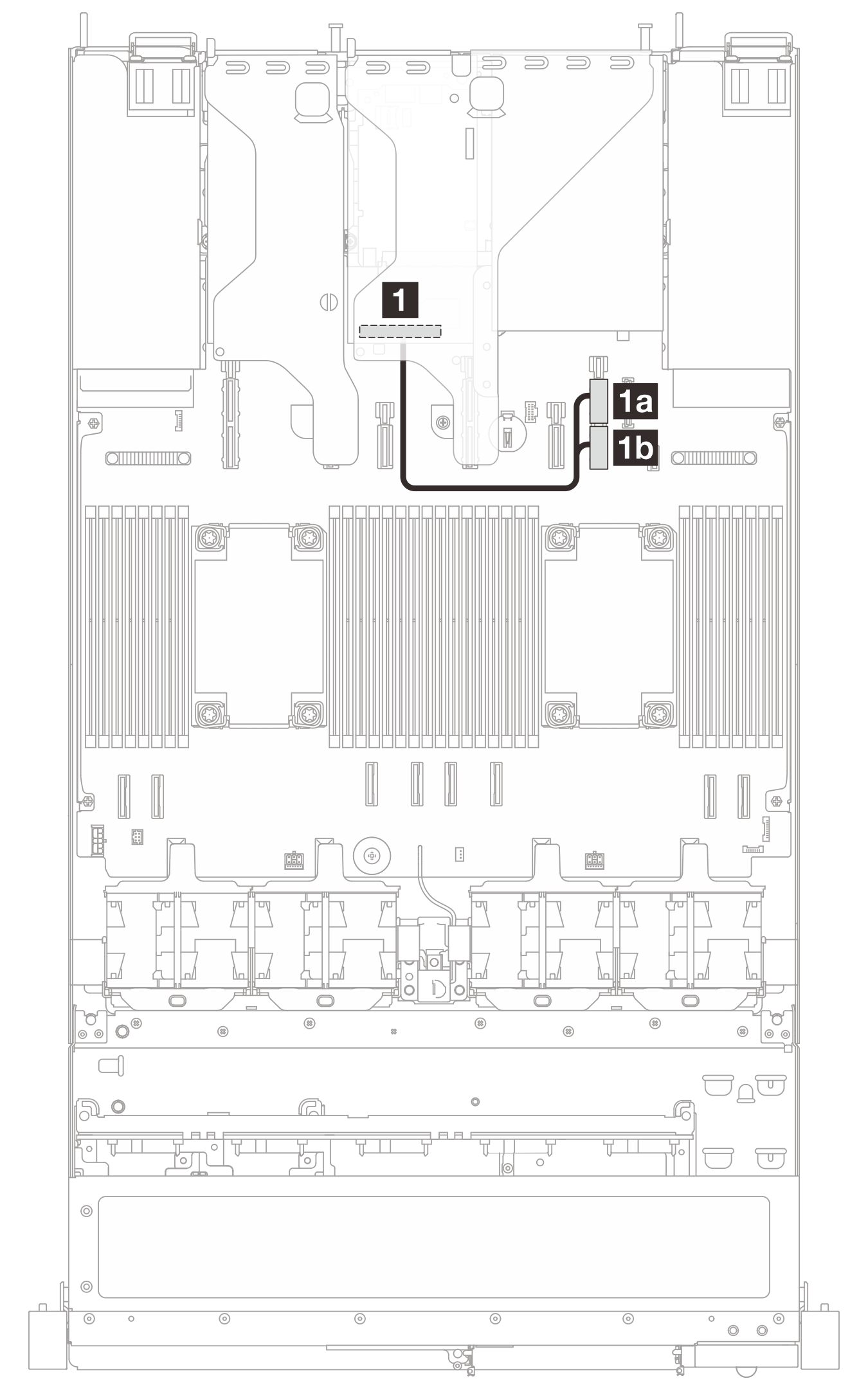

	FH (x16) + LP (x16) + M.2	Slot 1 / Slot 2	For slot 1: `1a` PCIe 15A `1b` PCIe 15B For slot 2: `1a` PCIe 9A `1b` PCIe 9B
Processor Neptune Core Module	FH + rear M.2 drive	Slot 1	`1a` PCIe 15A `1b` PCIe 15B
Processor Neptune Core Module	FH + LP	Slot 1 / Slot 3	For slot 1: `1a` PCIe 15A `1b` PCIe 15B For slot 3: `1a` PCIe 9A `1b` PCIe 9B

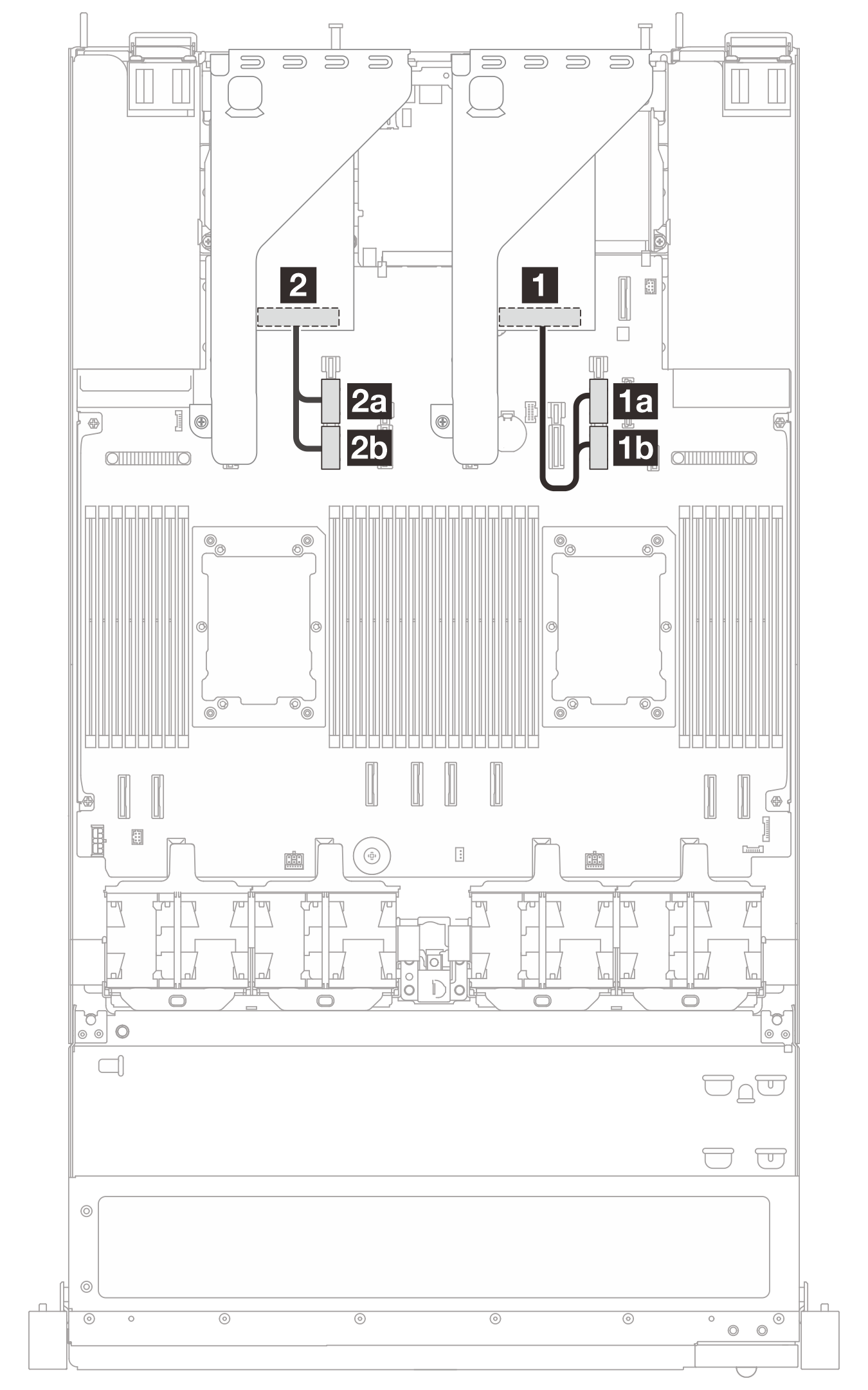

Table 3. Two processor and two ConnectX-8 adapters
Server installed with	Riser bracket	From ConnectX-8 adapter on:	To
System fan-pack Processor Neptune Air Module	FH + FH	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
System fan-pack Processor Neptune Air Module	FH + FH	Slot 3	`2a` PCIe 13A `2b` PCIe 13B
Processor Neptune Core Module	FH + LP	Slot 1	`1a` PCIe 9A `1b` PCIe 9B
Processor Neptune Core Module	FH + LP	Slot 3	`2a` PCIe 15A `2b` PCIe 15B
