Install an M.2 drive

Follow instructions in this section to install an M.2 drive. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
  • Two people and one lifting device on site that can support up to 400 lb (181 kg) are required to perform this procedure. If you do not already have a lifting device available, Lenovo offers the Genie Lift GL-8 material lift that can be purchased at Data Center Solution Configurator. Make sure to include the Foot-release brake and the Load Platform when ordering the Genie Lift GL-8 material lift.
Firmware and driver download: You might need to update the firmware or driver after replacing a component.

Procedure

  1. Locate the M.2 drive slots on the system board.

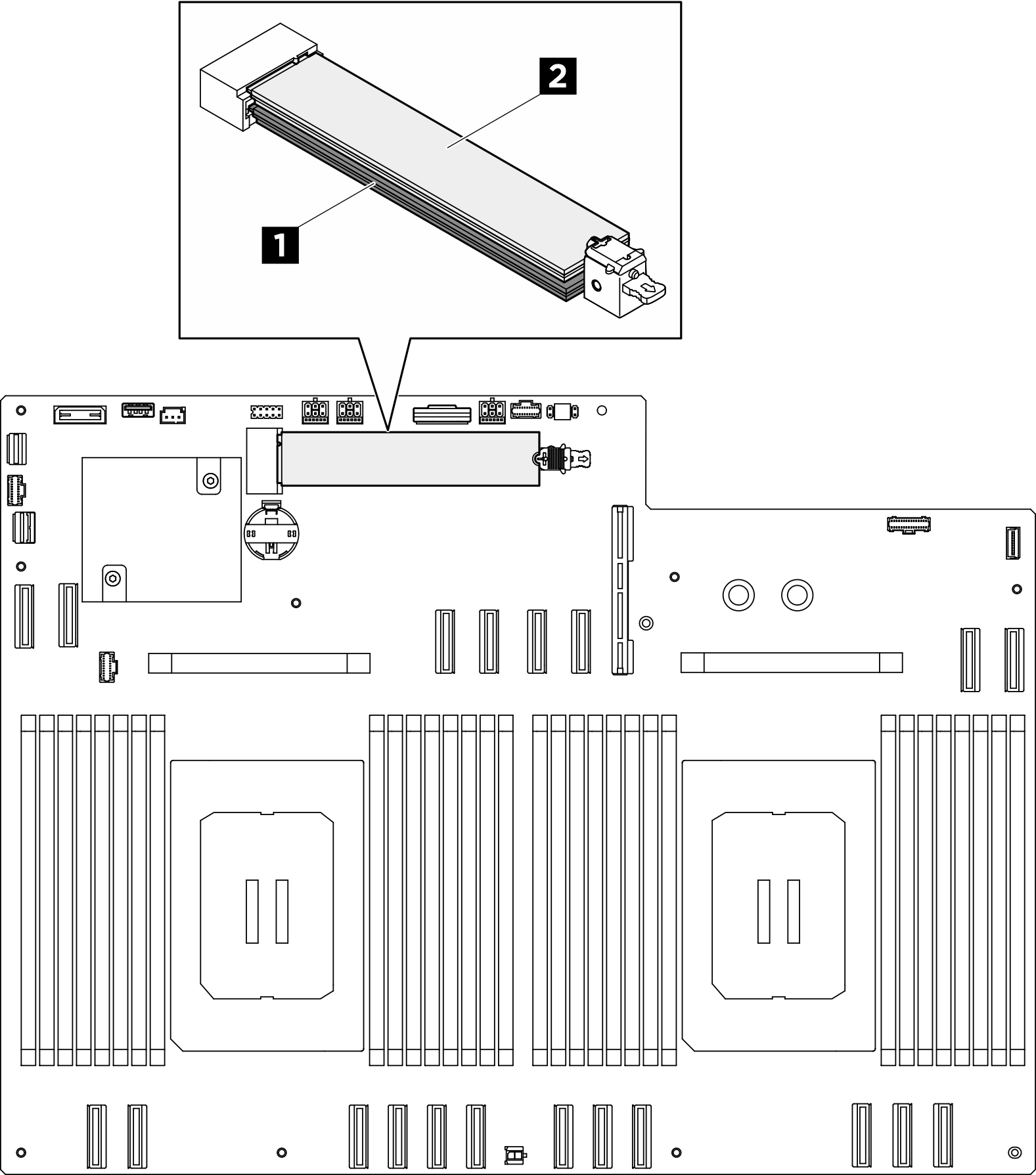

    Figure 1. M.2 drive slots
    M.2 drive slots
    1 Slot 12 Slot 2
  2. Install the lower M.2 drive.
    1. Pull and hold the lower retainer as illustrated.
    2. Insert the M.2 drive into the lower M.2 slot at an angle of approximately 15 degrees.
    3. Pivot the other end of the M.2 drive down and slide the retainer toward the M.2 drive to secure it in place.

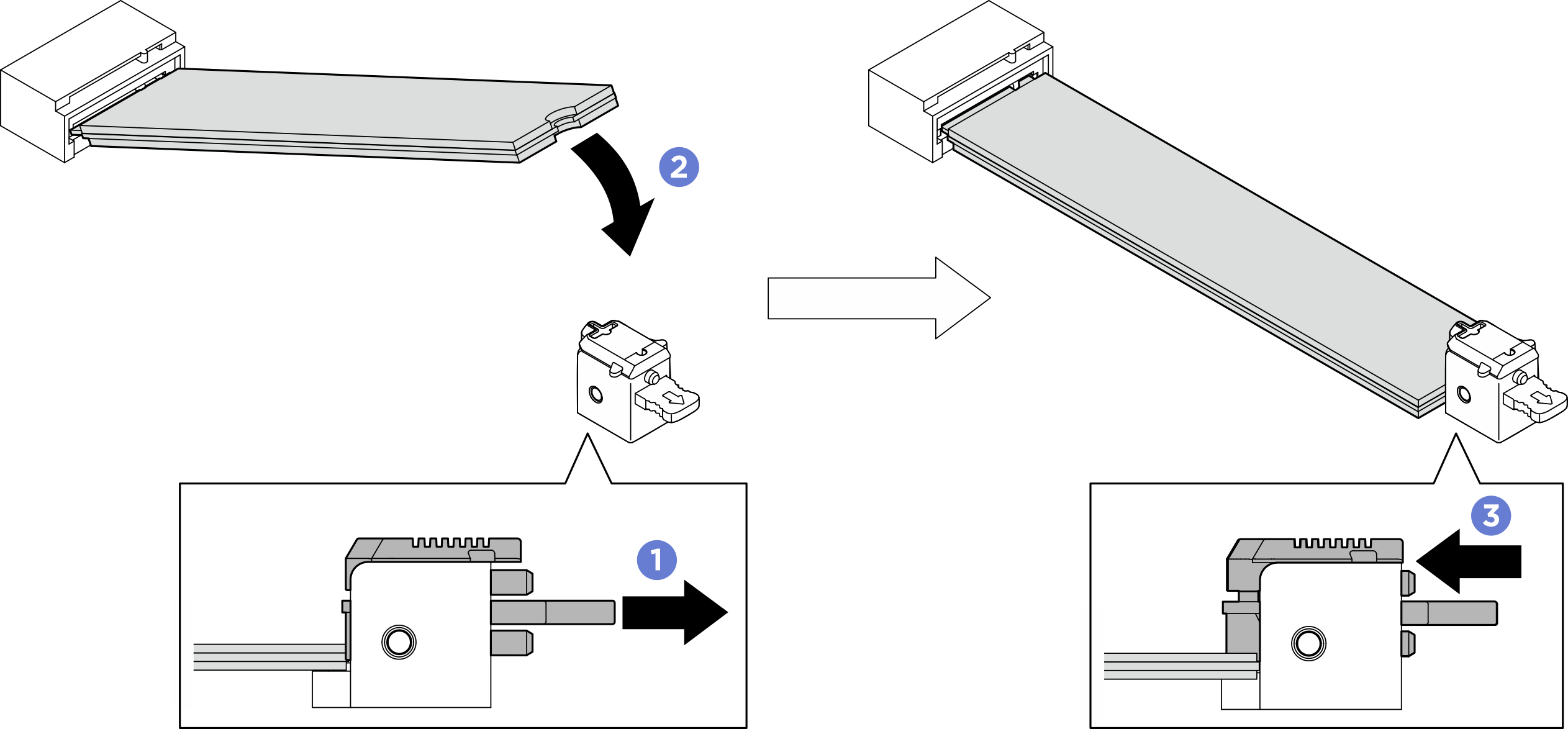

      Figure 2. Installing lower M.2 drive
      Installing lower M.2 drive
  3. Install upper M.2 drive.
    1. Insert the M.2 drive into the upper M.2 slot at an angle of approximately 15 degrees.
    2. Pivot the other end of the M.2 drive downward until it securely locks into place with the retainer.
    3. The upper retainer will automatically lock into position, securing the M.2 drive in place.

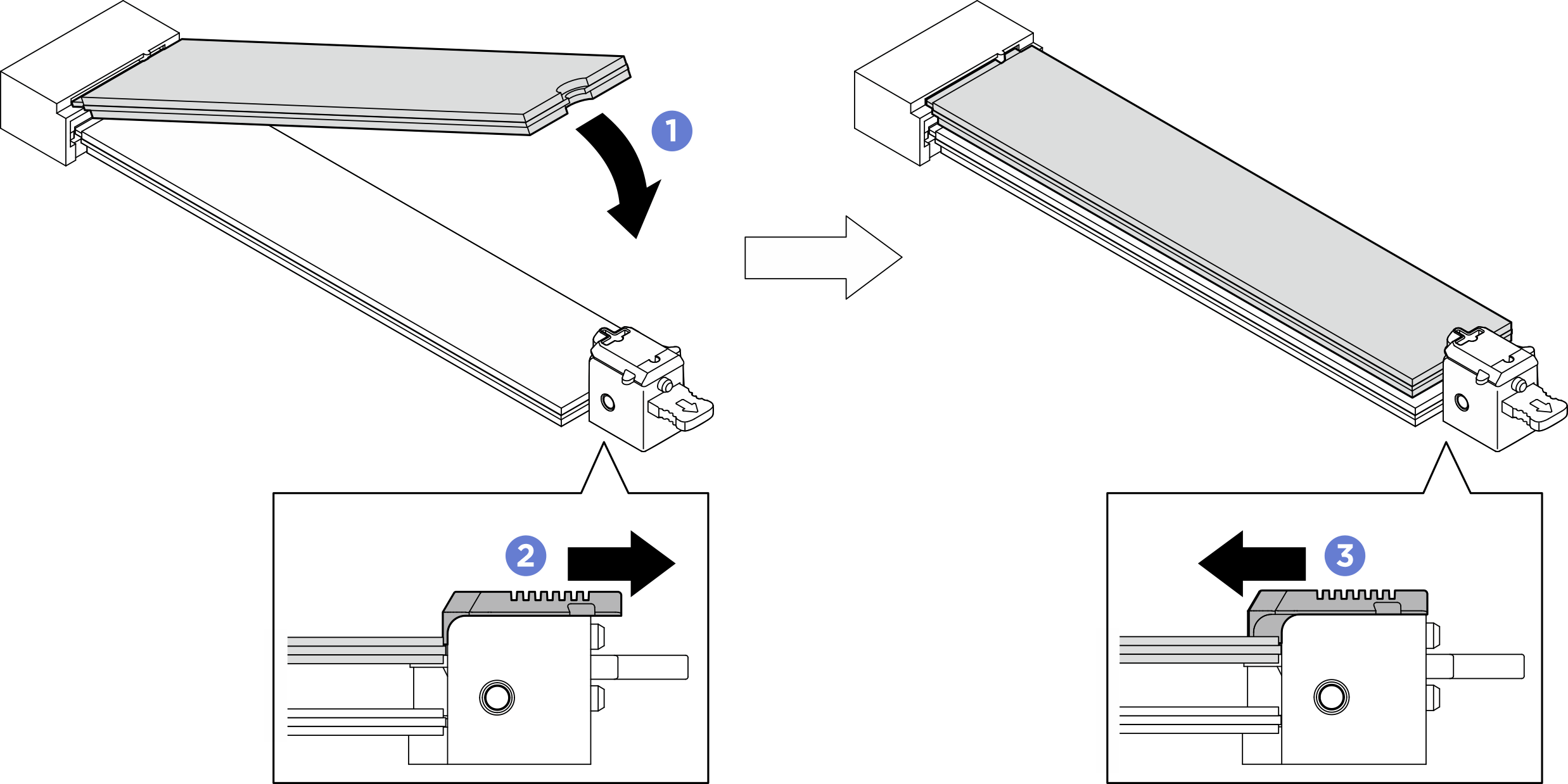

      Figure 3. Installing upper M.2 drive
      Installing upper M.2 drive

After you finish

  1. Reinstall the system shuttle. See Install the system shuttle.
  2. Complete the parts replacement. See Complete the parts replacement.
