Install the FIO/PCI cage

Follow instructions in this section to install the FIO/PCI cage. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

  1. Align the FIO/PCI cage with the guide pins on the system shuttle; then, place the cage into the shuttle until it is securely engaged.
  2. Locate the six screw holes marked with C on both sides of the system shuttle; then, fasten the six screws to secure the FIO/PCI cage.

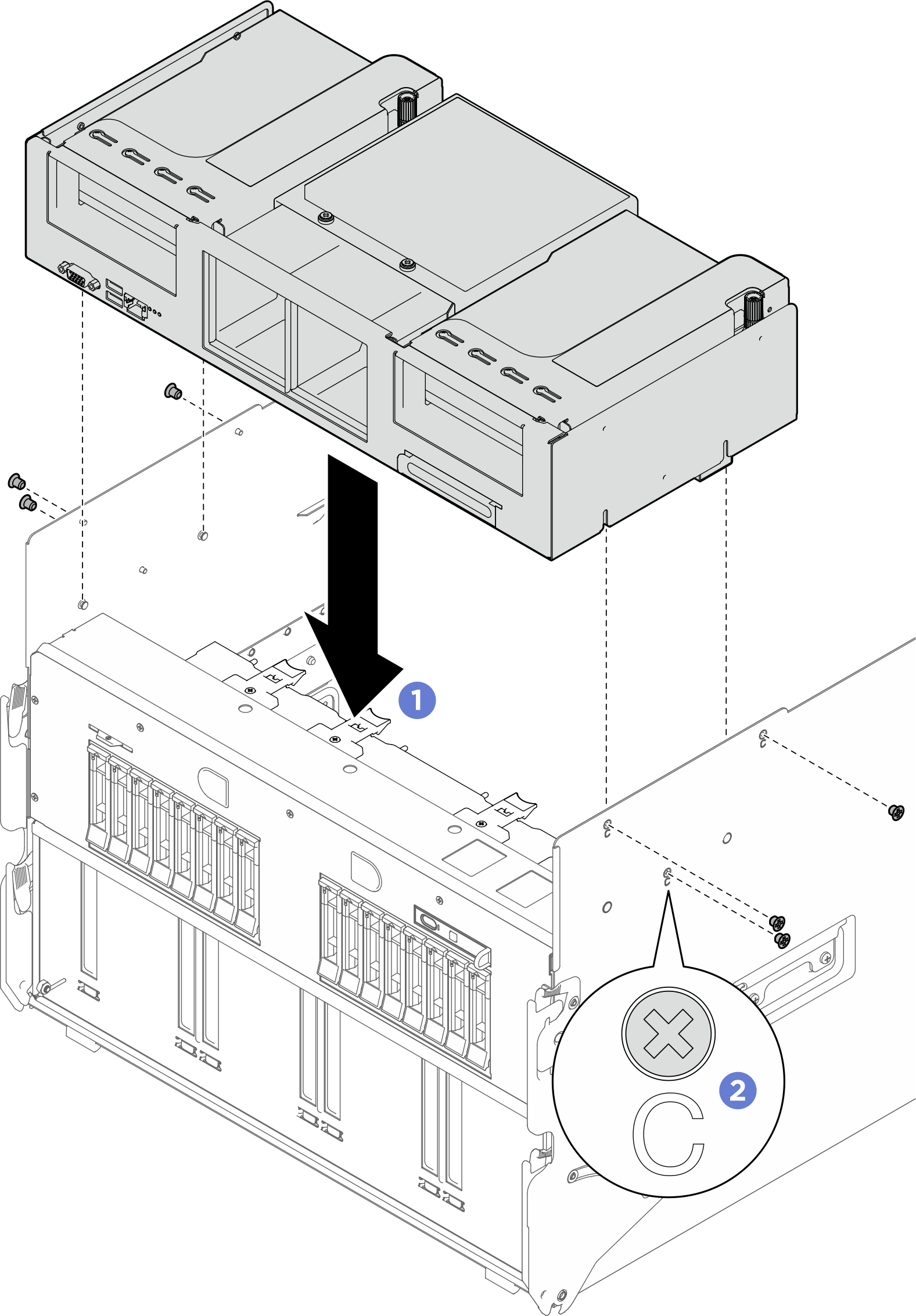

    Figure 1. FIO/PCI cage installation
    FIO/PCI cage installation
  3. Push the system shuttle fully into the chassis.
    1. Lift the two lock latches on both sides of the shuttle.
    2. Slide the shuttle into the chassis.
    3. Push the shuttle fully into the chassis.
    4. Rotate the two release levers until they lock into place.
    Figure 2. System shuttle installation
    System shuttle installation

    System shuttle installation

After you finish

Complete the parts replacement. See Complete the parts replacement.
