Remove the PCIe switch shuttle

Follow instructions in this section to remove the PCIe switch shuttle. The procedure must be executed by a trained technician.

Procedure

1. Pull the PCIe switch shuttle to the first stop position.
   1. Press the two blue release latches.
   2. Rotate the two release levers until they are perpendicular to the PCIe switch shuttle.
   3. Pull the PCIe switch shuttle forward to the first stop position.
      Figure 1. Pulling the PCIe switch shuttle to the first stop position


2. Pull the PCIe switch shuttle to the second stop position.
   1. Press the two front lock latches on both sides of the PCIe switch shuttle.
   2. Pull the PCIe switch shuttle forward to the second stop position.
      Important

      Push the two release levers back until they lock into place after pulling out the PCIe switch shuttle to avoid damage.

      Figure 2. Pulling the PCIe switch shuttle to the second stop position


3. Disconnect the cables from the PCIe switch board.
4. Remove the PCIe switch shuttle.
   1. Press the two rear lock latches on both sides of the PCIe switch shuttle.
   2. Slide the PCIe switch shuttle fully forward and remove it from the system shuttle.

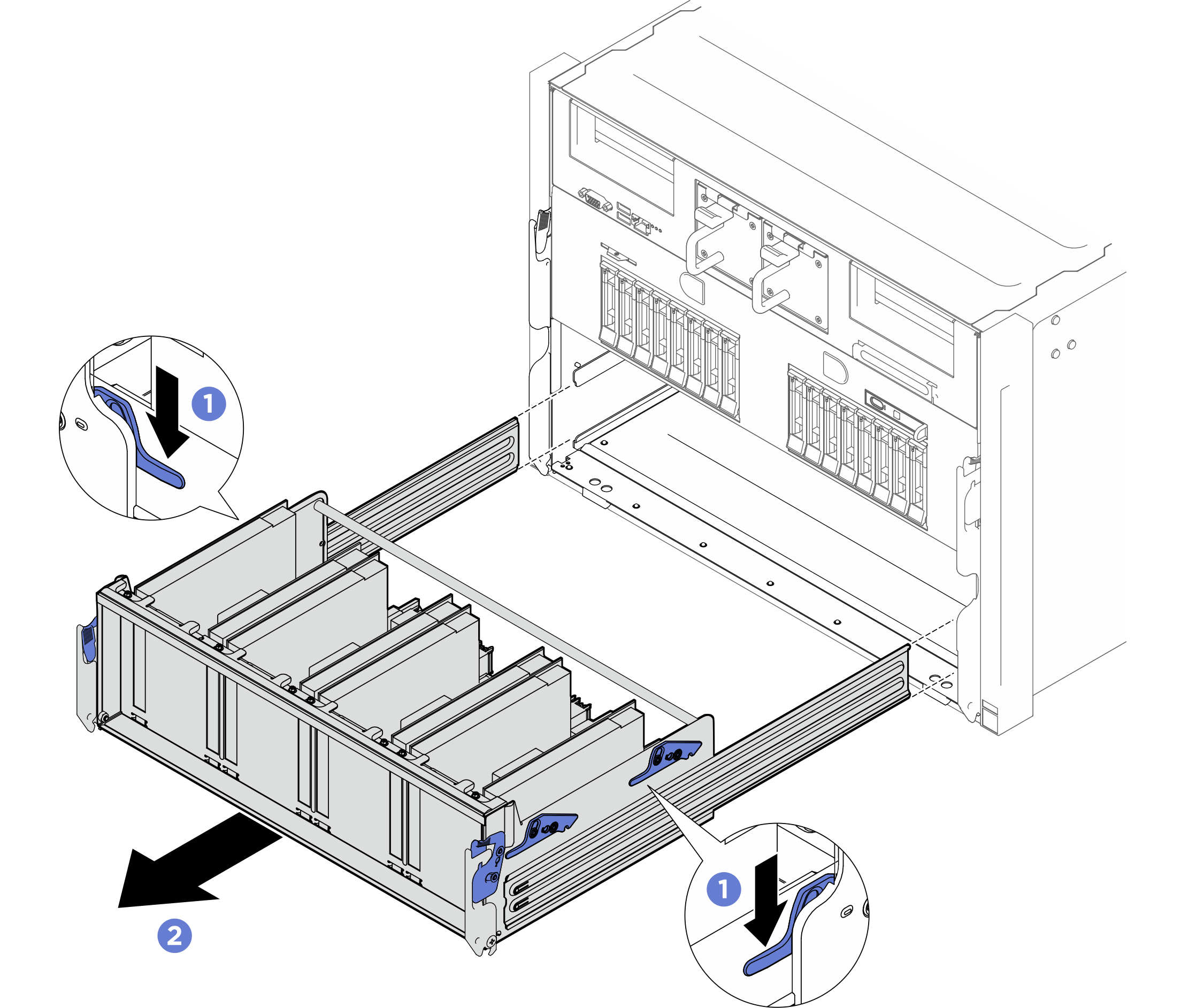

      Figure 3. PCIe switch shuttle removal
