Install the PCIe switch shuttle

Follow instructions in this section to install the PCIe switch shuttle. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.
  • Anti-static gloves are recommended as a precaution while connecting cables to the PCIe switch board.

Procedure

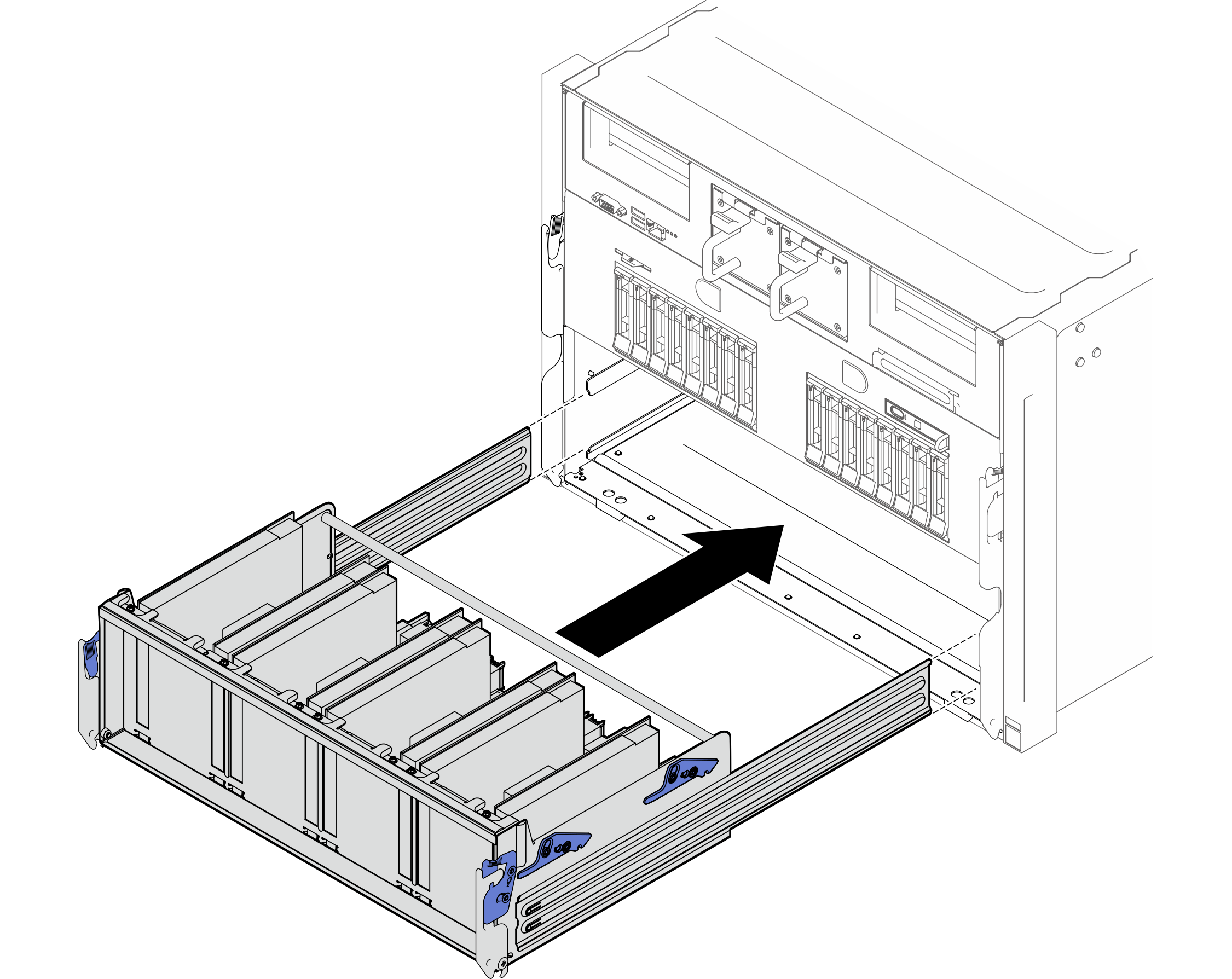

  1. Align the PCIe switch shuttle with the opening in the front of the system shuttle, and slide it into the system shuttle until it snaps into place at the second stop position.
    Figure 1. Sliding the PCIe switch shuttle to the second stop position
    Sliding the PCIe switch shuttle to the second stop position
  2. Connect the cables to the PCIe switch board. See below for more information.

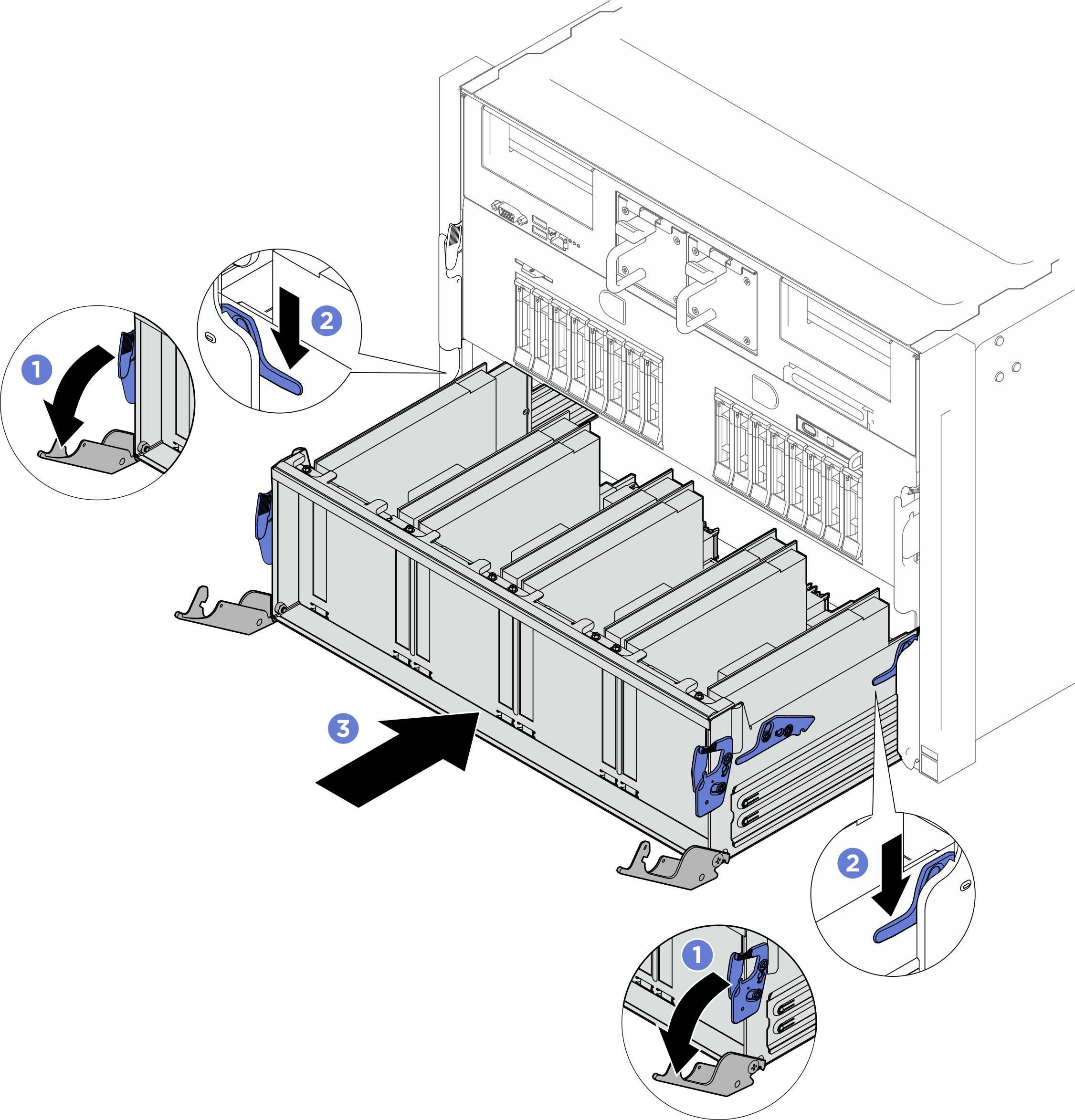

  3. Slide the PCIe switch shuttle to the first stop position.
    1. Rotate the two release levers until they are perpendicular to the PCIe switch shuttle.
    2. Press the two rear lock latches on both sides of the PCIe switch shuttle.
    3. Slide the PCIe switch shuttle into the system shuttle until it stops at the first stop position.
      Figure 2. Sliding the PCIe switch shuttle to the first stop position
      Sliding the PCIe switch shuttle to the first stop position

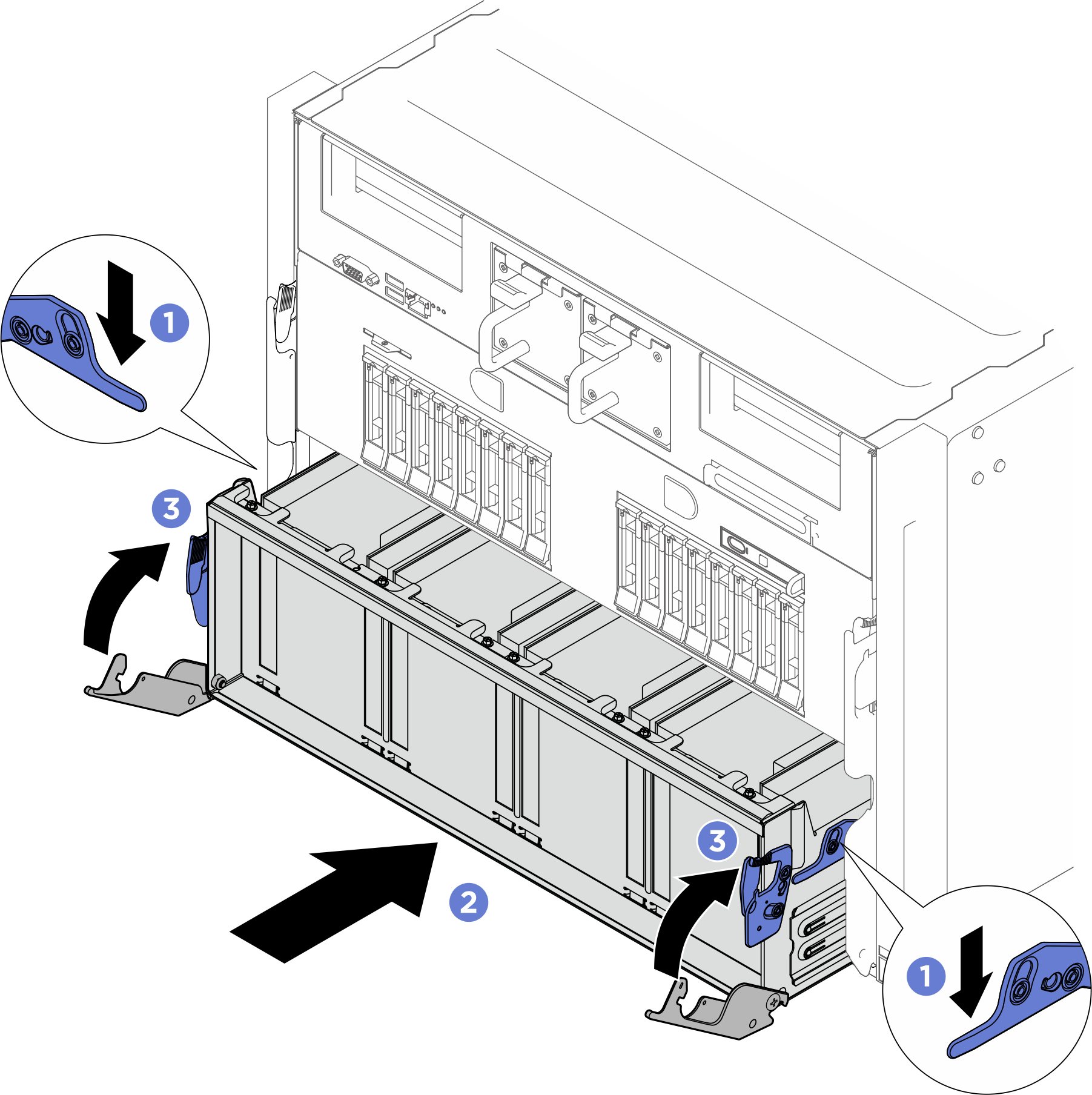

  4. Push the PCIe switch shuttle fully into the system shuttle.
    1. Press the two front lock latches on both sides of the PCIe switch shuttle.
    2. Push the PCIe switch shuttle fully into the system shuttle.
    3. Rotate the two release levers until they lock into place.
      Figure 3. PCIe switch shuttle installation
      PCIe switch shuttle installation

After you finish

Complete the parts replacement. See Complete the parts replacement.
