Remove the system shuttle

Follow instructions in this section to remove the system shuttle. The procedure must be executed by a trained technician.

About this task

S037

CAUTION

The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a lifting device, or both to safely lift this part or unit.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
• Two people and one lifting device on site that can support up to 400 lb (181 kg) are required to perform this procedure. If you do not already have a lifting device available, Lenovo offers the Genie Lift GL-8 material lift that can be purchased at Data Center Solution Configurator. Make sure to include the Foot-release brake and the Load Platform when ordering the Genie Lift GL-8 material lift.

Procedure

1. Pull the system shuttle to the stop position.
   1. Press the two blue release latches.
   2. Rotate the two release levers until they are perpendicular to the shuttle.
   3. Pull the shuttle forward until it stops.
   Figure 1. Pulling the system shuttle to the stop position


2. Remove the system shuttle out of the chassis.
   1. Lift the two lock latches on both sides of the shuttle.
   2. Remove the shuttle out of the chassis.
   Attention

   Make sure two people lift the shuttle by holding the four handles on both sides of the system shuttle. Then, slide the shuttle on a lifting device to move the shuttle.



   Important

   Push the two release levers back until they lock into place after pulling out the system shuttle to avoid damage.

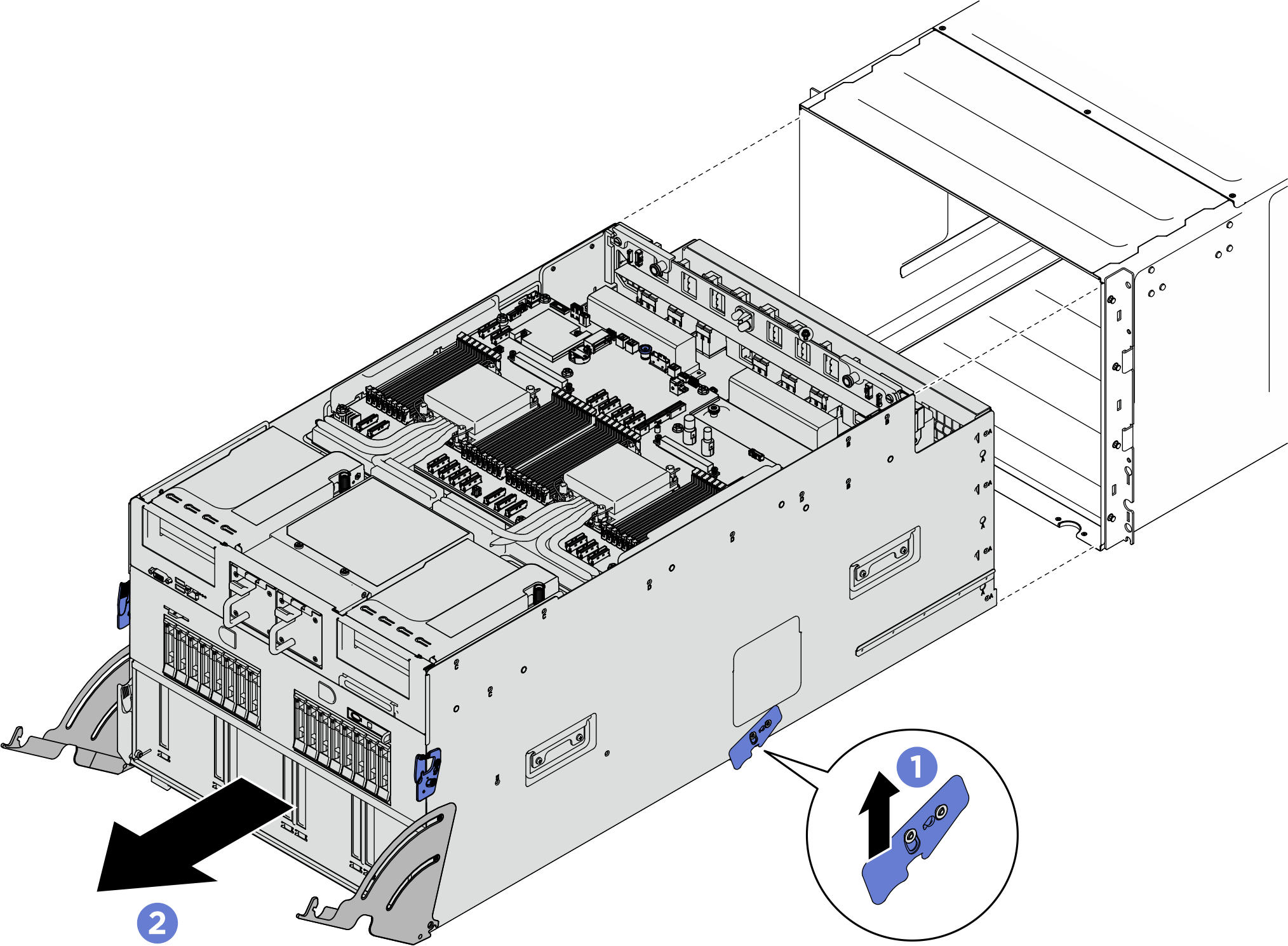

   Figure 2. System shuttle removal
