Remove the rear air baffle

Follow instructions in this section to remove the rear air baffle.

Procedure

1. Make preparation for this task.
   1. Remove the front top cover. See Remove the front top cover.
   2. Remove the FHFL risers if necessary. See Remove a PCIe riser.
2. If a flash power module is installed on the front air baffle, disconnect the flash power module cable from the extension cable.
   Figure 1. Flash power module cable disconnection


3. If the M.2 boot adapter is installed on the front air baffle, disconnect the M.2 cable from the M.2 boot adapter.
   1. Unhook the wire bail on the cable from the connector.
   2. Disconnect the cable from the M.2 boot adapter.
      Figure 2. M.2 boot adapter cable disconnection


4. Disconnect all PCIe riser cables from the system board assembly.
5. Remove the rear air baffle.
   1. Slightly push the right and left blue tabs inward toward the center of the server.
   2. Lift the rear air baffle and remove it from the chassis.

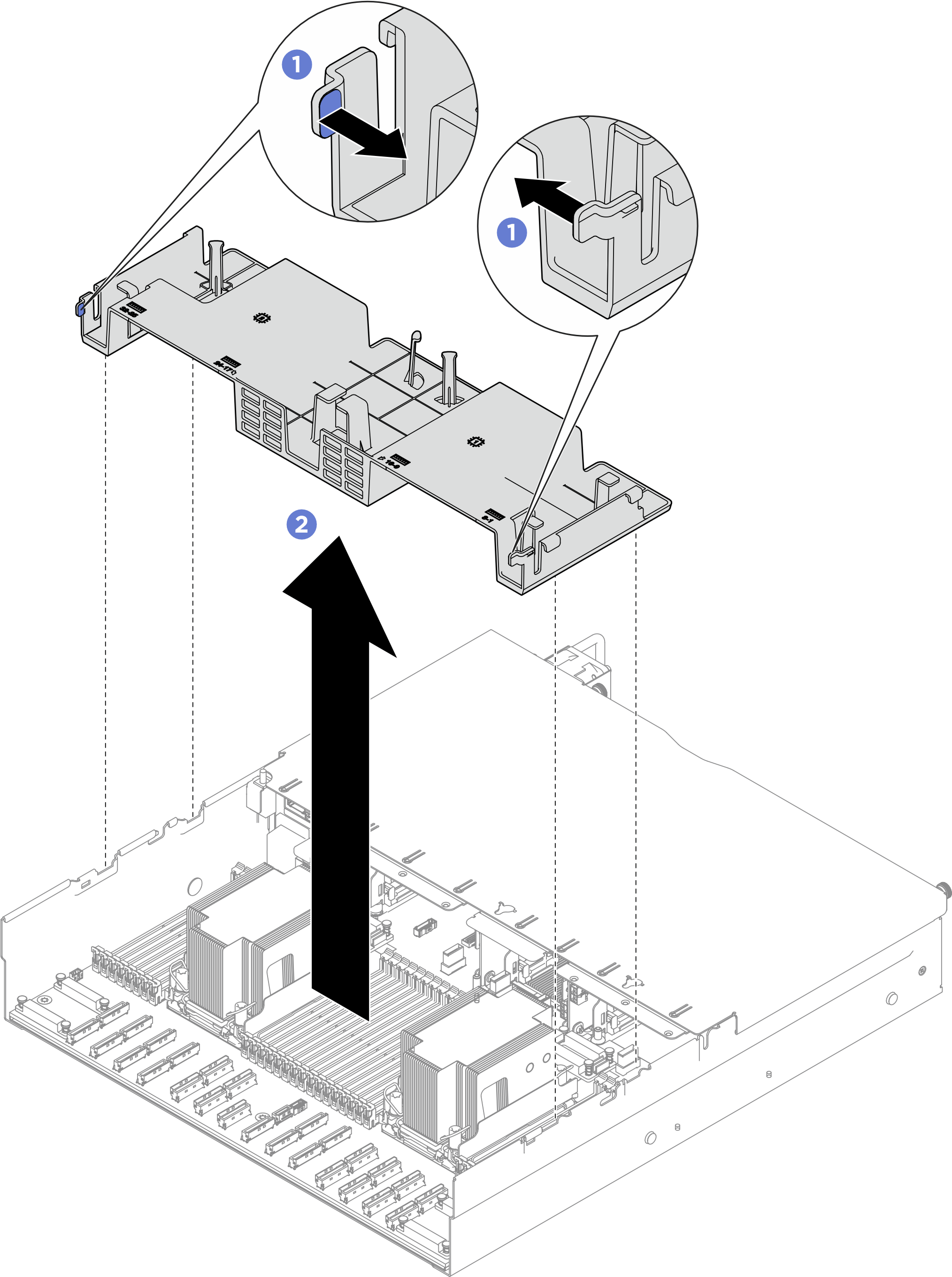

      Figure 3. Rear air baffle removal

      Attention

      For proper cooling and airflow, reinstall the front air baffle and the rear air baffle before you turn on the server. Operating the server with the air baffle removed might damage server components.

      Note

      The rear air baffle might look different from the illustration.
