Rear view of the sever model with four PCIe risers

This section contains information on the rear view of the sever model with four PCIe risers.

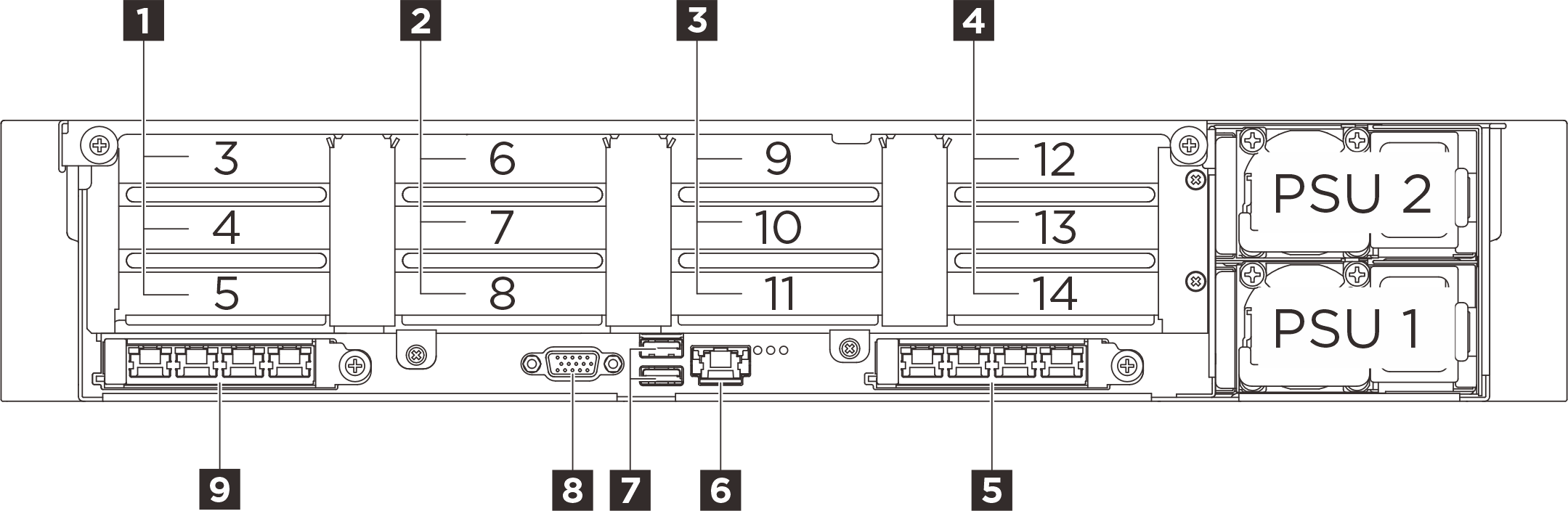

Figure 1. Rear view of the sever model with four PCIe risers
Rear view of the sever model with four PCIe risers
Table 1. Components on the rear view of the sever model with four PCIe risers
1 PCIe riser A (PCIe slot 3-5)2 PCIe riser B (PCIe slot 6-8)
3 PCIe riser C (PCIe slot 9-11)4 PCIe riser D (PCIe slot 12-14)
5 OCP slot 2 (PCIe slot 2)6 XCC system management port (10/100/1000 Mbps RJ-45) (1 GB RJ-45)
7 USB 3.2 Gen 1 (5 Gbps) connectors8 VGA connector
9 OCP slot 1 (PCIe slot 1)

1 PCIe riser A (PCIe slot 3-5)​

Install PCIe adapters into these slots. See the following table for PCIe slots corresponding to the PCIe risers.
PCIe slotThree-slot riser (without power connector)
3x16 (Gen5 x16)
4x16 (Gen5 x8)
5x16 (Gen5 x8)

2 PCIe riser B (PCIe slot 6-8)​

Install PCIe adapters into these slots. See the following table for PCIe slots corresponding to the PCIe risers.
PCIe slotThree-slot riser (without power connector)
6x16 (Gen5 x16)x16 (Gen5 x16)
7x16 (Gen5 x8)x16 (Gen5 x8)
8x16 (Gen5 x8)Serial port bay

3 PCIe riser C (PCIe slot 9-11)​

Install PCIe adapters into these slots. See the following table for PCIe slots corresponding to the PCIe risers.
PCIe slotThree-slot riser (without power connector)
9x16 (Gen5 x16)
10x16 (Gen5 x8)
11x16 (Gen5 x8)

4 PCIe riser D (PCIe slot 12-14)​

Install PCIe adapters into these slots. See the following table for PCIe slots corresponding to the PCIe risers.
PCIe slotThree-slot riser (with power connector)
12x16 (Gen5 x8)
13x16 (Gen5 x16)
14x16 (Gen4 x16)

5 OCP slot 2 / 9 OCP slot 1​

The system may support a 2-port or a 4-port OCP module for network connections. Port numbering are shown in the illustrations below.
Figure 2. Port numbering — 2-port OCP module
Port numbering — 2-port OCP 3.0 Ethernet adapter
Figure 3. Port numbering — 4-port OCP 3.0 module
Port numbering — 4-port OCP 3.0 Ethernet adapter

6 XCC system management port (10/100/1000 Mbps RJ-45) (1 GB RJ-45)​

The server has a 1 GB RJ-45 connector dedicated to Lenovo XClarity Controller (XCC) functions. Through the system management port, you can access the Lenovo XClarity Controller directly by connecting your laptop to the management port using an Ethernet cable. Make sure that you modify the IP settings on the laptop so that it is on the same network as the server default settings. A dedicated management network provides additional security by physically separating the management network traffic from the production network.

See the following for more information:

7 USB 3.2 Gen 1 (5 Gbps) connectors​

  • Top connector: The connector can be used to attach a USB-compatible device, such as a USB keyboard, USB mouse, or USB storage device.

  • Bottom connector: The connector can function as a regular USB 3.2 Gen 1 connector to the host OS; it can be used to attach a USB-compatible device, such as a USB keyboard, USB mouse, or USB storage device.

    When there are no USB connectors at the front, this connector can function as a USB 2.0 Lenovo XClarity Controller management port.

8 VGA connector​

Connect a monitor to this connector.
