Install a fan shroud (Rack mount)

Follow instructions in this section to install a fan shroud.

About this task

S002
disconnect all power
CAUTION
The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
S017
moving parts
CAUTION
Hazardous moving fan blades nearby. Keep fingers and other body parts away.

Procedure

  1. Make preparation for this task.
    1. If there is a desktop mount fan shroud installed, removed it. See “Remove a desktop mount fan shroud” in SE100 User Guide
    2. Remove the node fan module. See “Remove a fan module in SE100 User Guide.
  2. Install the fan bridge cable dust filler to the fan bridge cable.

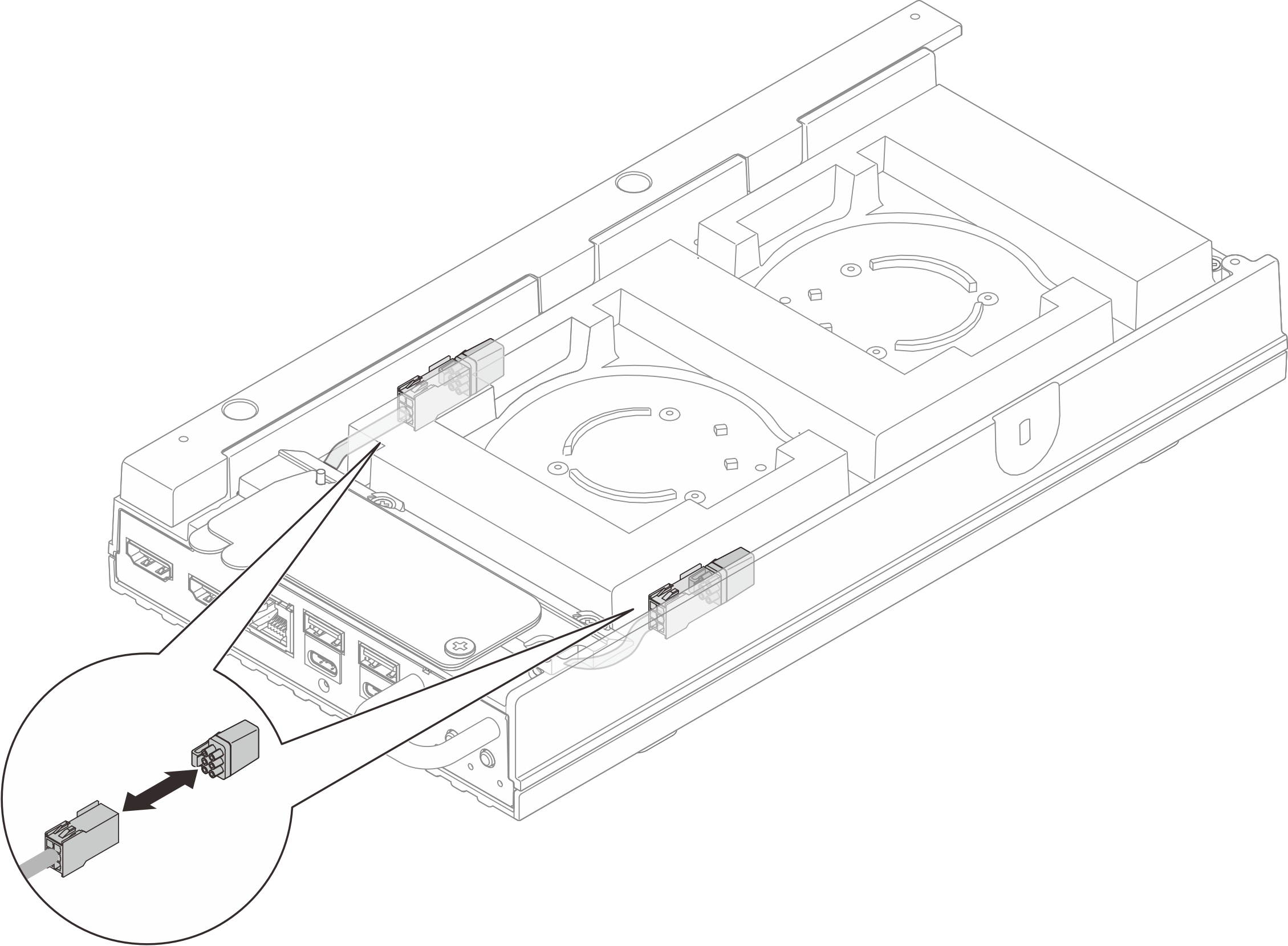

    Figure 1. Installing a fan bridge cable dust filler

  3. Install the fan shroud.
    1. Align the fan shroud with the screw holes on the server; then place the fan shroud on the server.
    2. Tighten the two screws on the fan shroud to secure the fan shroud to the server.

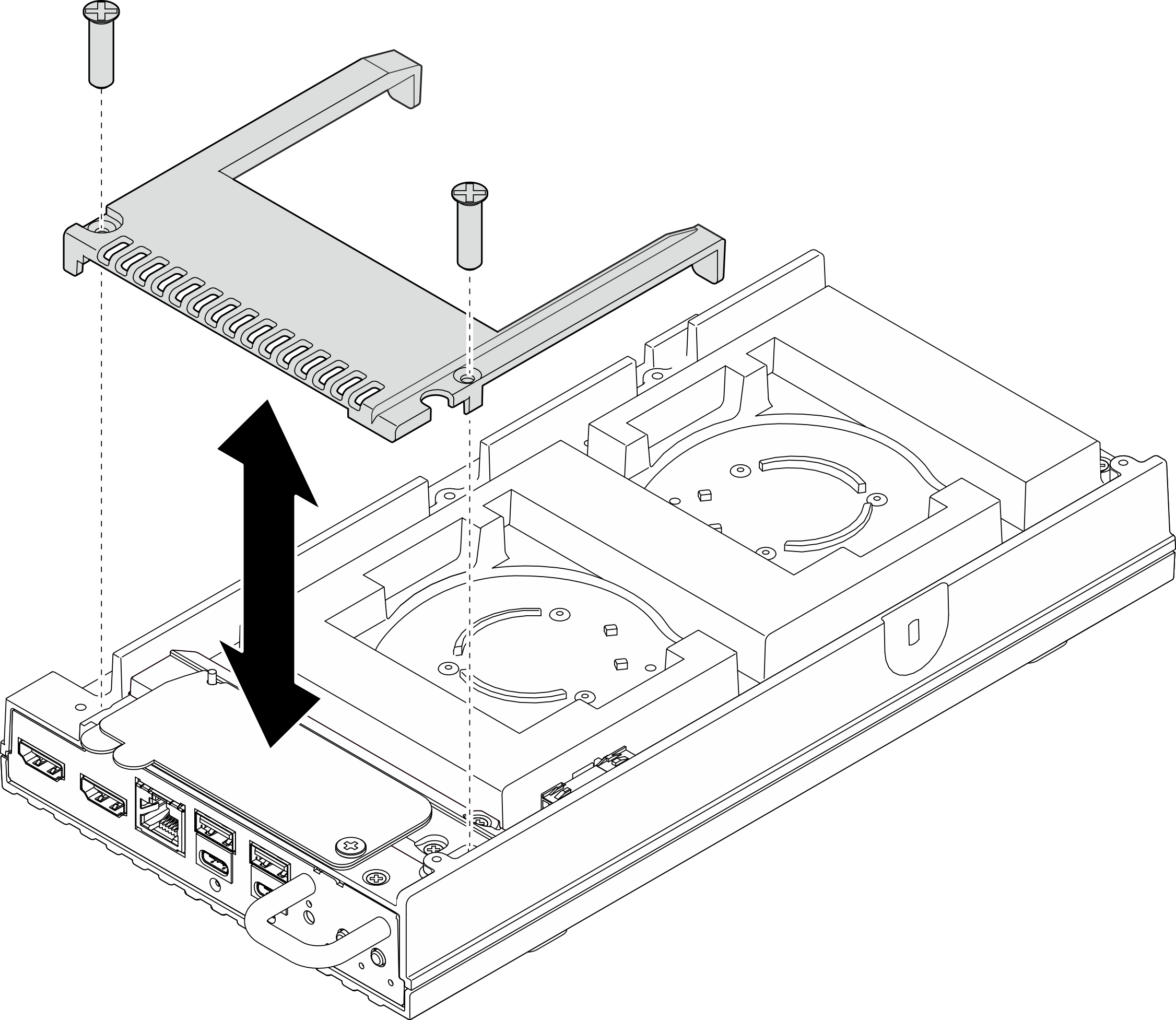

      Figure 2. Installing a fan shroud

After you finish
