Remove an expansion kit fan module

Follow instructions in this section to remove a fan module.

About this task

Note

This section only applies to the expansion kit that is installed with an Ethernet adapter.

S002

CAUTION

The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

• Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

• If the node is installed in an enclosure or mounted, remove the node from the enclosure or mount. See Configuration guide.

Procedure

1. Make preparation for this task.
   1. Remove the expansion kit from the node. See Remove the expansion kit.
   2. Remove the expansion top cover. See Remove the expansion top cover.
2. Remove the fan module.
   1. Remove the three screws that secure the fan module to the expansion kit.
   2. Lift the fan module to remove it from the expansion kit.

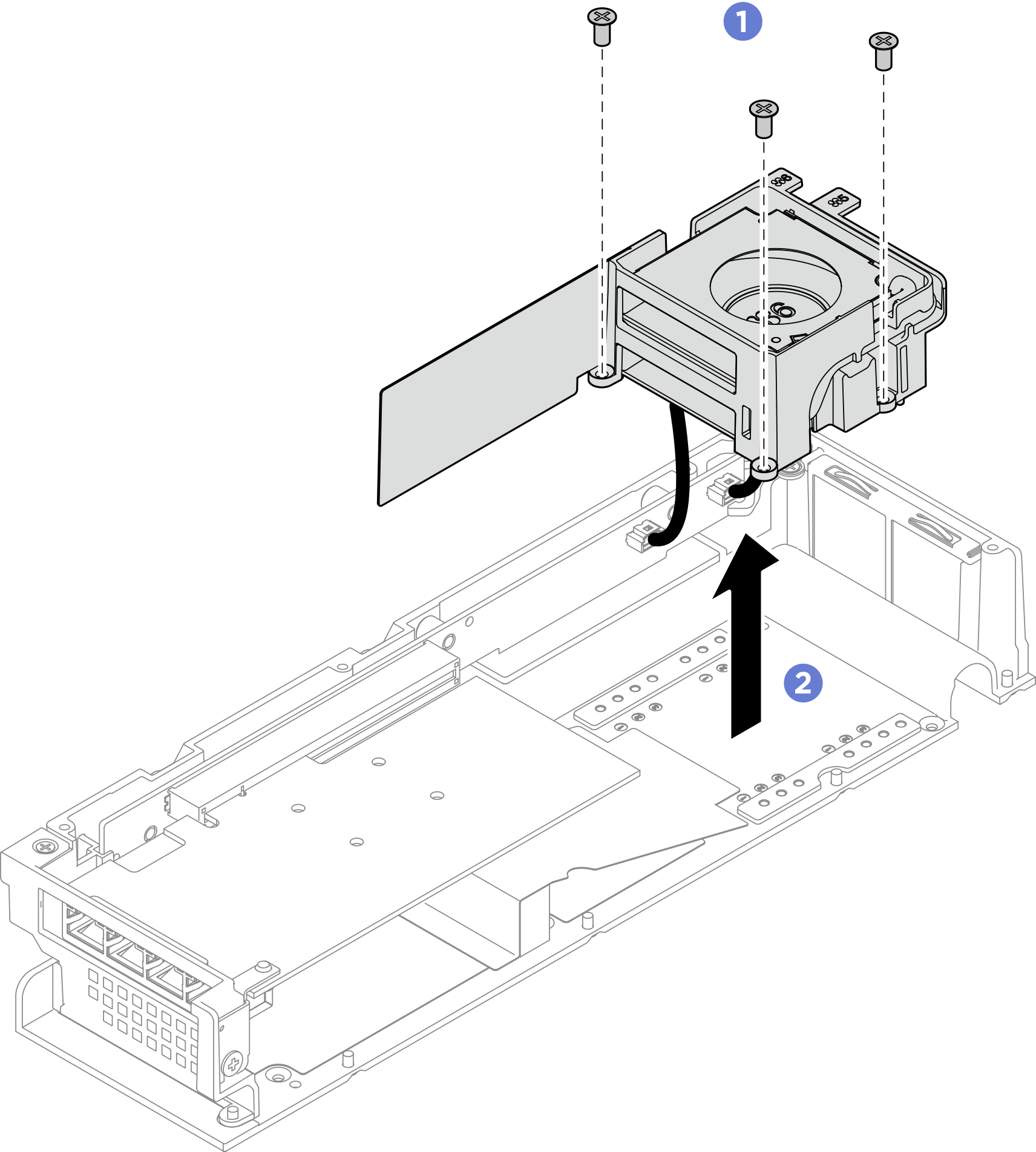

      Figure 1. Removing the fan module


3. Disconnect all the fan power cables from the PCIe riser card.
