DPU adapter power cable routing

Use the section to understand the power cable routing for the DPU adapter.

DPU adapter power cable routing​

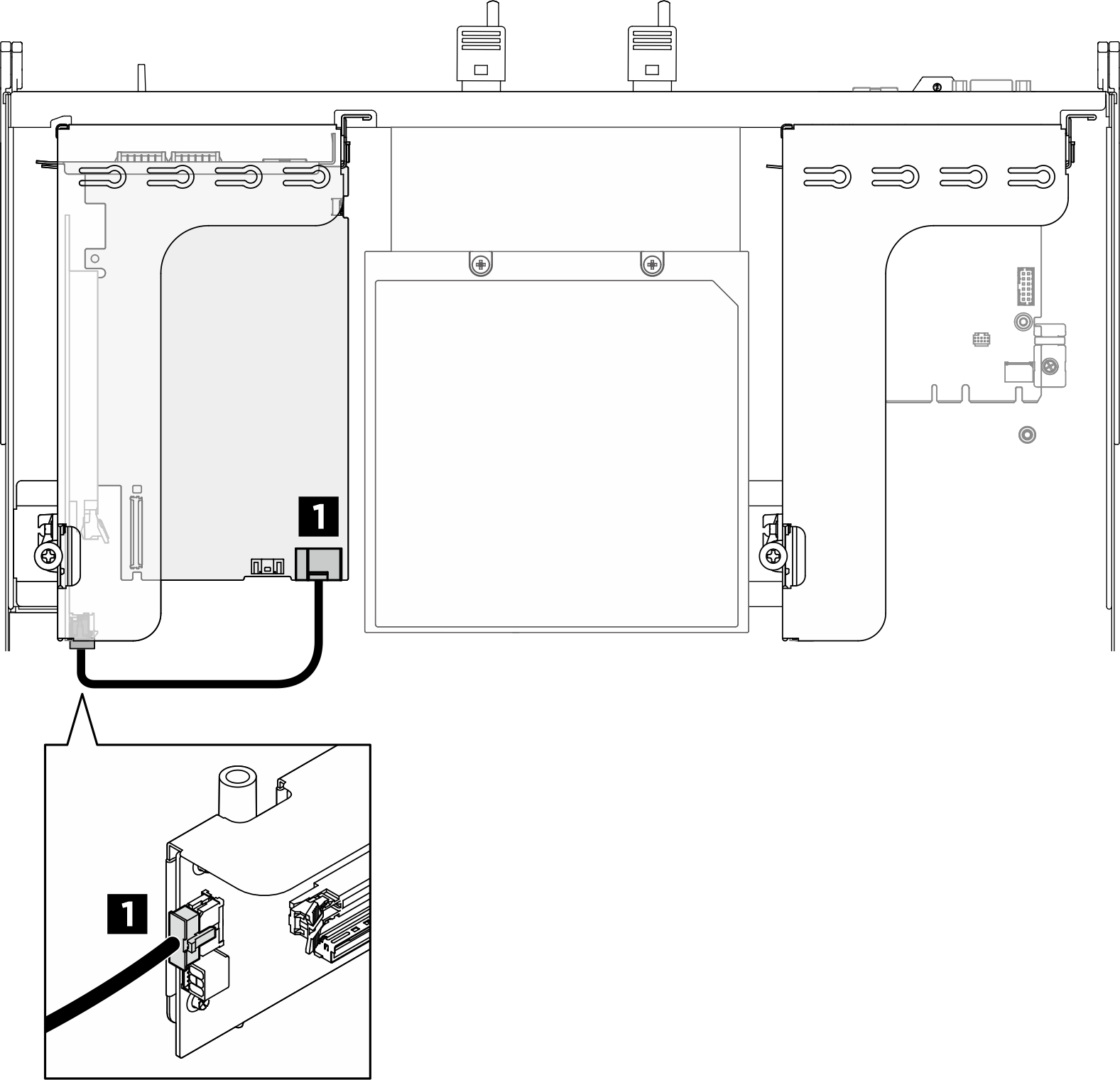

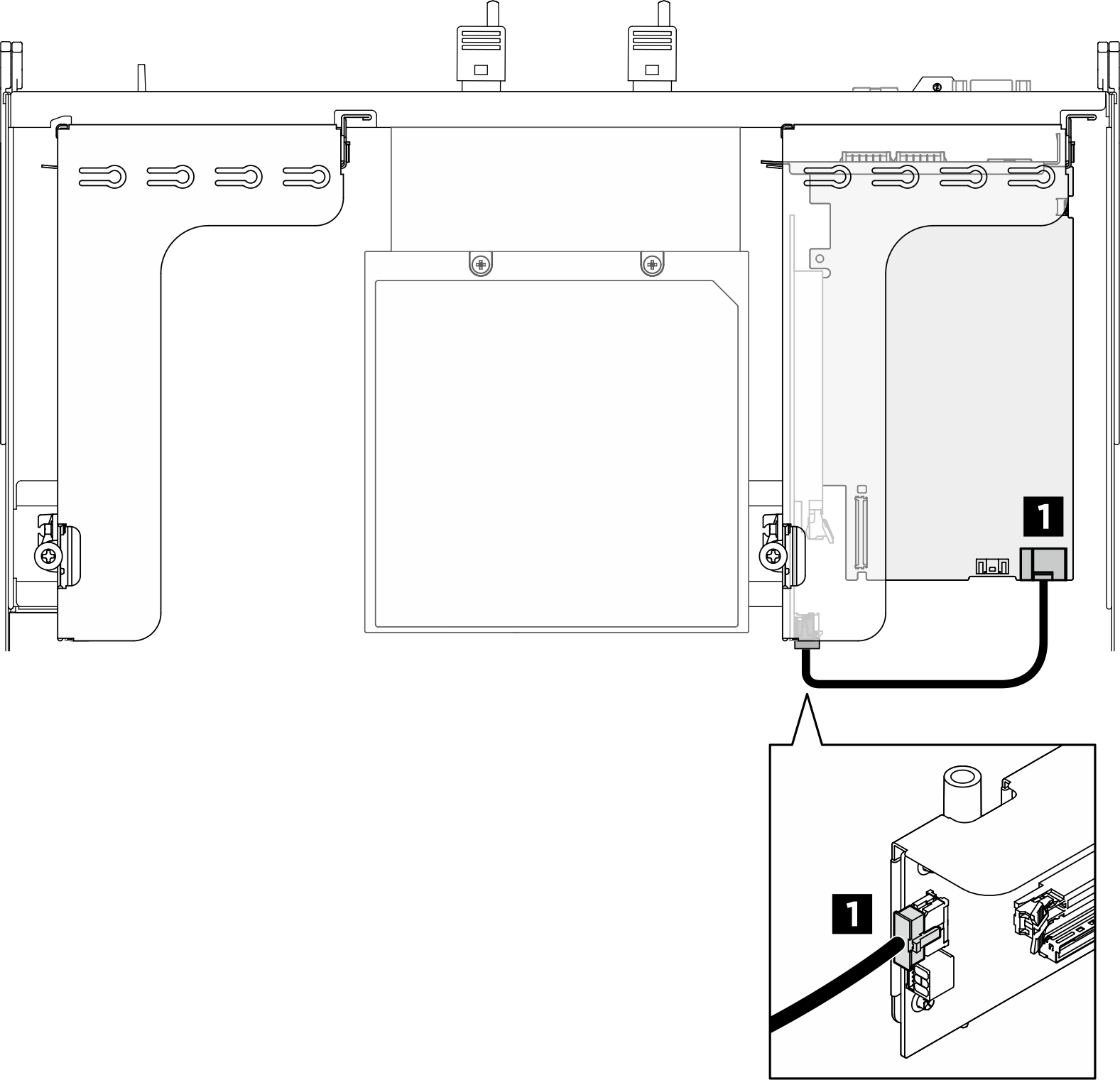

DPU adapter on PCIe riser 1DPU adapter on PCIe riser 2

DPU power cable routing

DPU power cable routing
FromTo
1 DPU adapter: Power connector1 PCIe riser 1 or 2: DPU power connector (AUX_PWR)
