System I/O board cable routing

Use the section to understand the cable routing for the system I/O board.

Note

Pass the cable through the cable holder and baffle assembly, then route it over the system board as illustrated below.

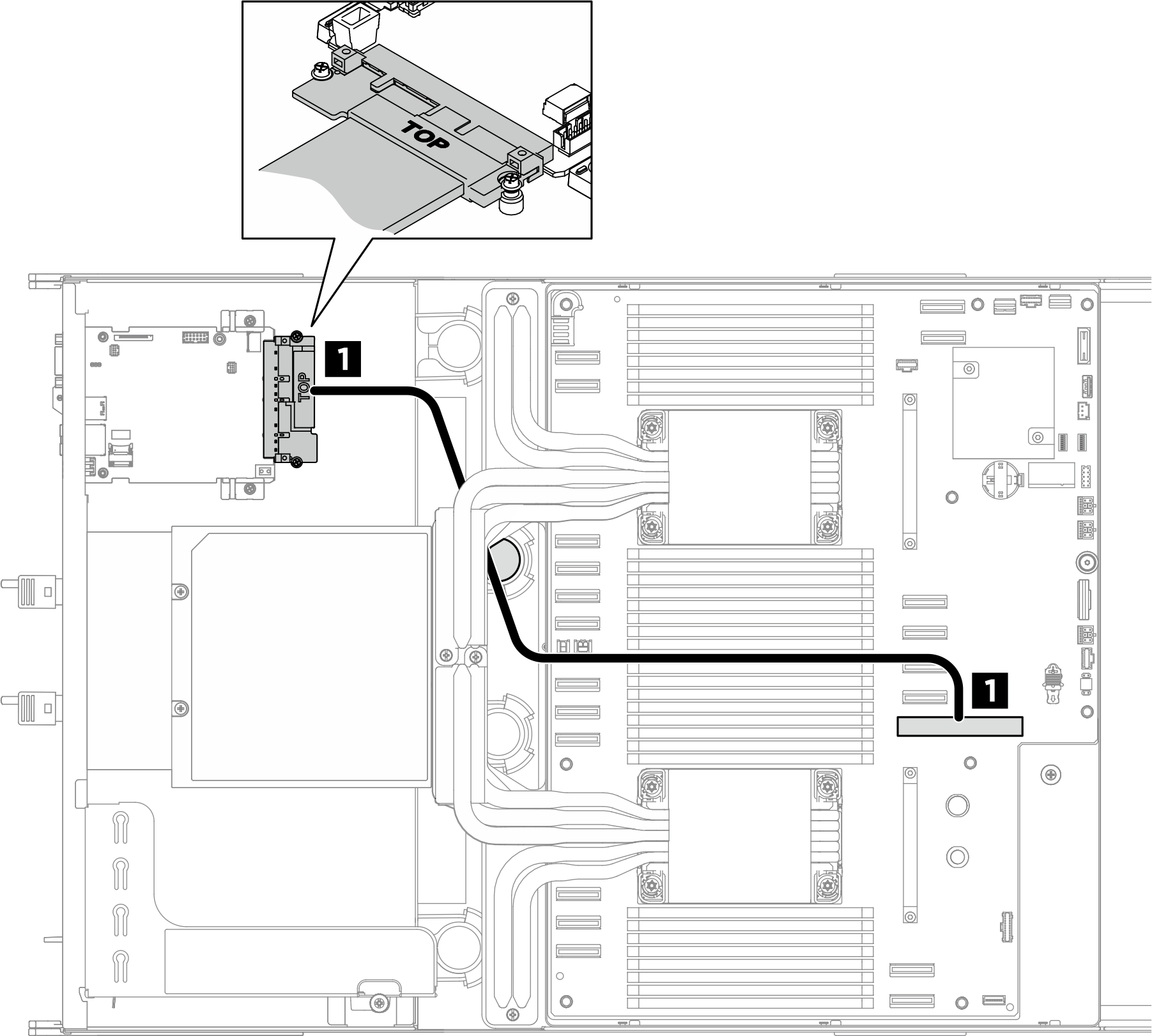

Figure 1. System I/O board cable routing

From	To
1 System I/O board: System board connector	1 System board: System I/O board connector (DC-SCM)
