Rear auxiliary fan cable routing

Use the section to understand the cable routing for the rear auxiliary fans.

Note

• Silkscreens on the power distribution board vary by configuration for Fan 17 and Fan 19 connectors. Details are provided below.
• Connect the green cables to the following two connectors on the power distribution board.
  • Fan 19 power connector (PUMP2 or P-L2(G))
  • Fan 17 power connector (PUMP5 or P-R2(G))

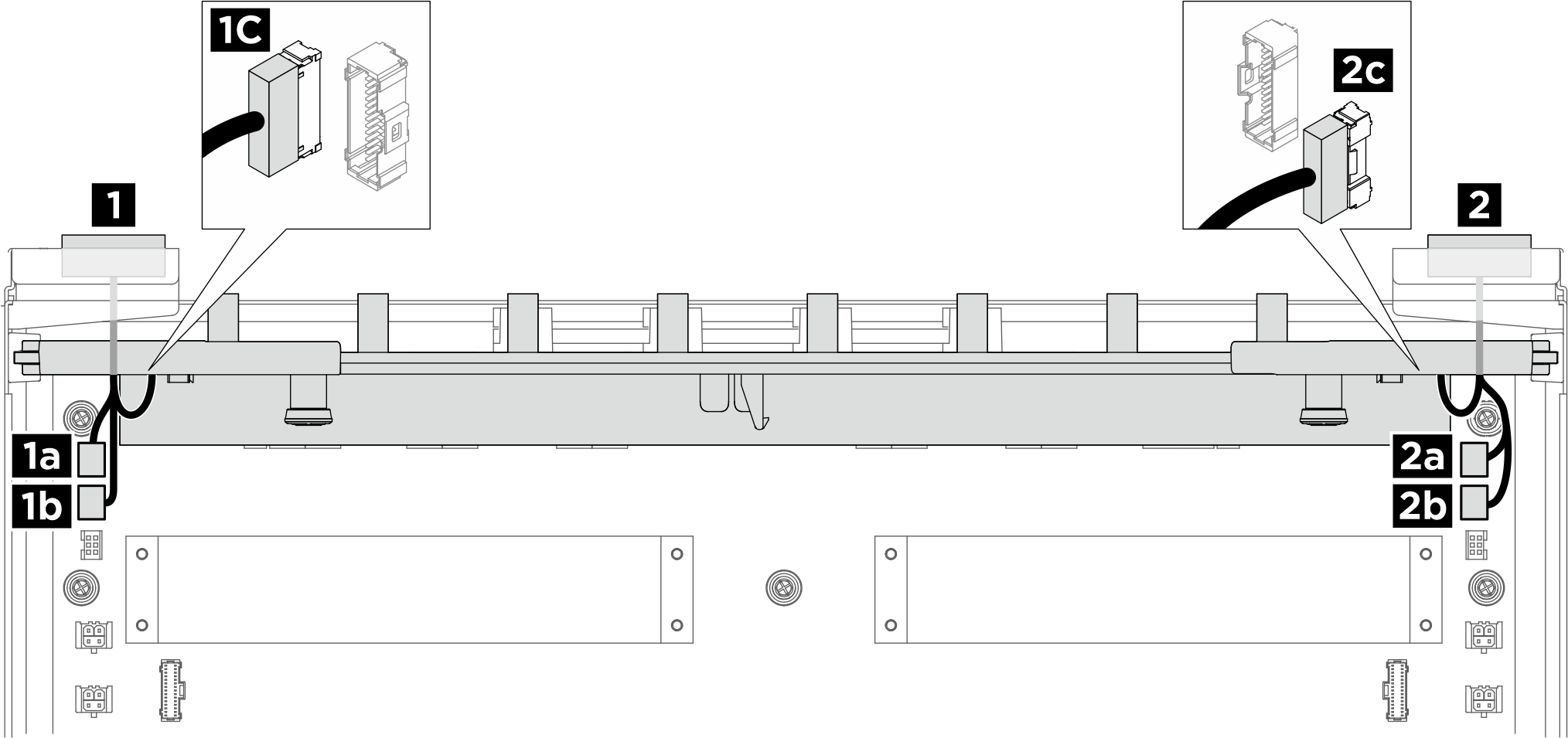

Figure 1. Rear auxiliary fan cable routing

From	To
1 Fans 18 and 19 cable	1a Power distribution board: Fan 19 power and signal connector (PUMP1 or P-L1(B)) (black cable)
	1b Power distribution board: Fan 19 power connector (PUMP2 or P-L2(G)) (green cable)
	1c PSU interposer: Fan 18 power and signal connector (FAN2 LEAK2)
2 Fans 16 and 17 cable	2a Power distribution board: Fan 17 power and signal connector (PUMP4 or P-R1(B)) (black cable)
	2b Power distribution board: Fan 17 power connector (PUMP5 or P-R2(G)) (green cable)
	2c PSU interposer: Fan 16 power and signal connector (FAN1 LEAK1)
