GPU baseboard cable routing

Use the section to understand the cable routing for the GPU baseboard.

Note

Pass the cables through the cable holder and baffle assembly, then route them under the compute tray as illustrated below.

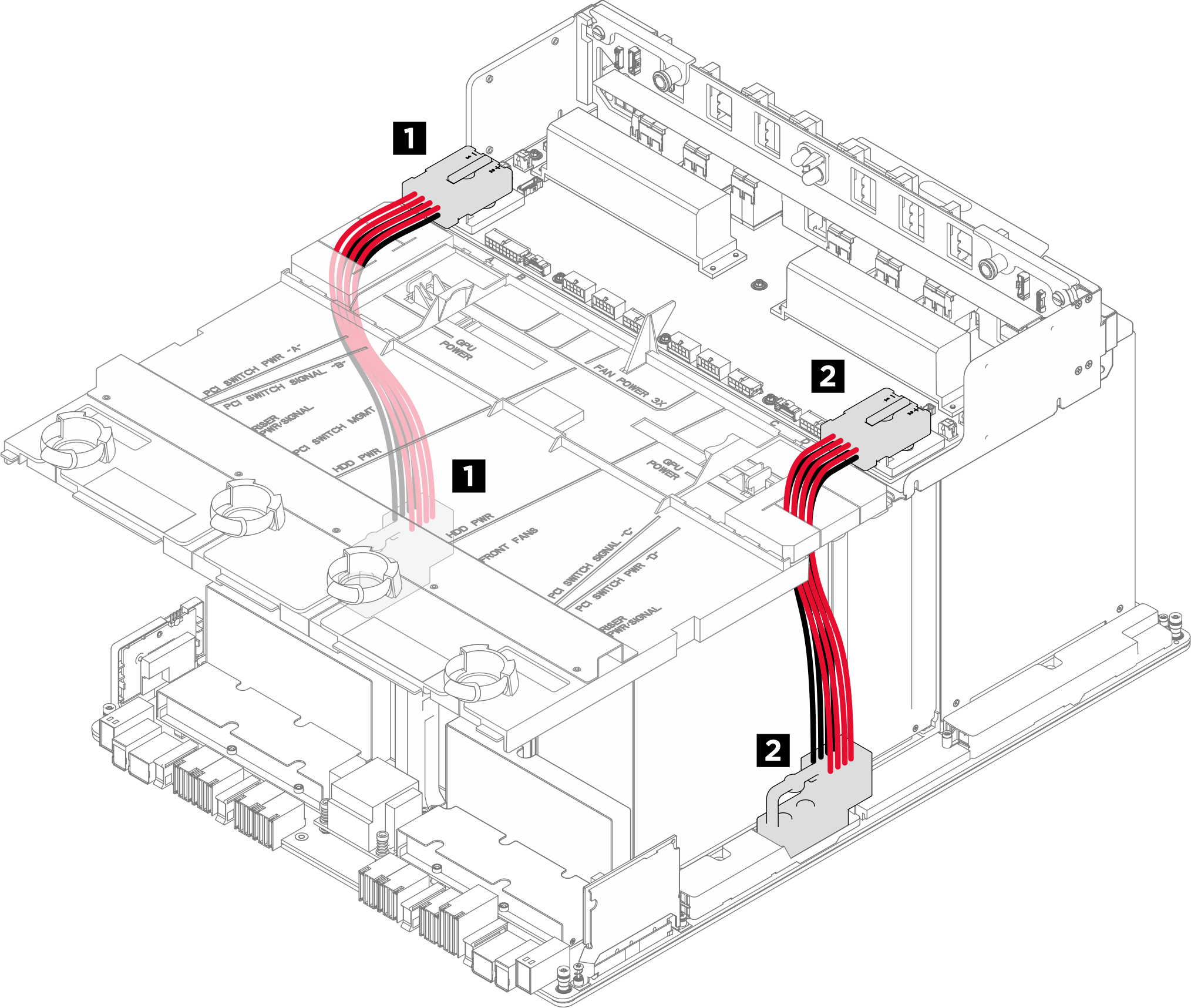

Figure 1. GPU baseboard cable routing

From	To
1 GPU baseboard: Left power connector	1 Power distribution board: Left GPU baseboard power connector (GPU PWR)
2 GPU baseboard: Right power connector	2 Power distribution board: Right GPU baseboard power connector (GPU PWR)
