Remove the system I/O board

Follow instructions in this section to remove the system I/O board.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.
  • After replacing the system I/O board, update the firmware to the specific version supported by the server. Make sure that you have the required firmware or a copy of the pre-existing firmware before you proceed.

Procedure

  1. Make preparations for this task.
    1. Pull the system shuttle to the stop position.
      1. Press the two blue release latches.
      2. Rotate the two release levers until they are perpendicular to the shuttle.
      3. Pull the shuttle forward until it stops.
        Important
        To avoid damage, push the two release levers back and ensure they lock into place after extending the system shuttle to its stop position.
        Figure 1. Pulling the system shuttle to the stop position
        Pulling the system shuttle to the stop position
    2. If applicable, remove the PCIe riser assembly 2. See Remove a PCIe riser assembly.
  2. Remove the system I/O board.
    1. Loosen the four screws securing both the system I/O board and the cable.
    2. Disconnect the cable from the system I/O board.
    3. Slide the system I/O board towards the rear of the FIO/PCI cage until the notches are aligned to the retainer as illustrated.
    4. Rotate the rear end of the system I/O board to an angle, and remove it from the FIO/PCI cage.

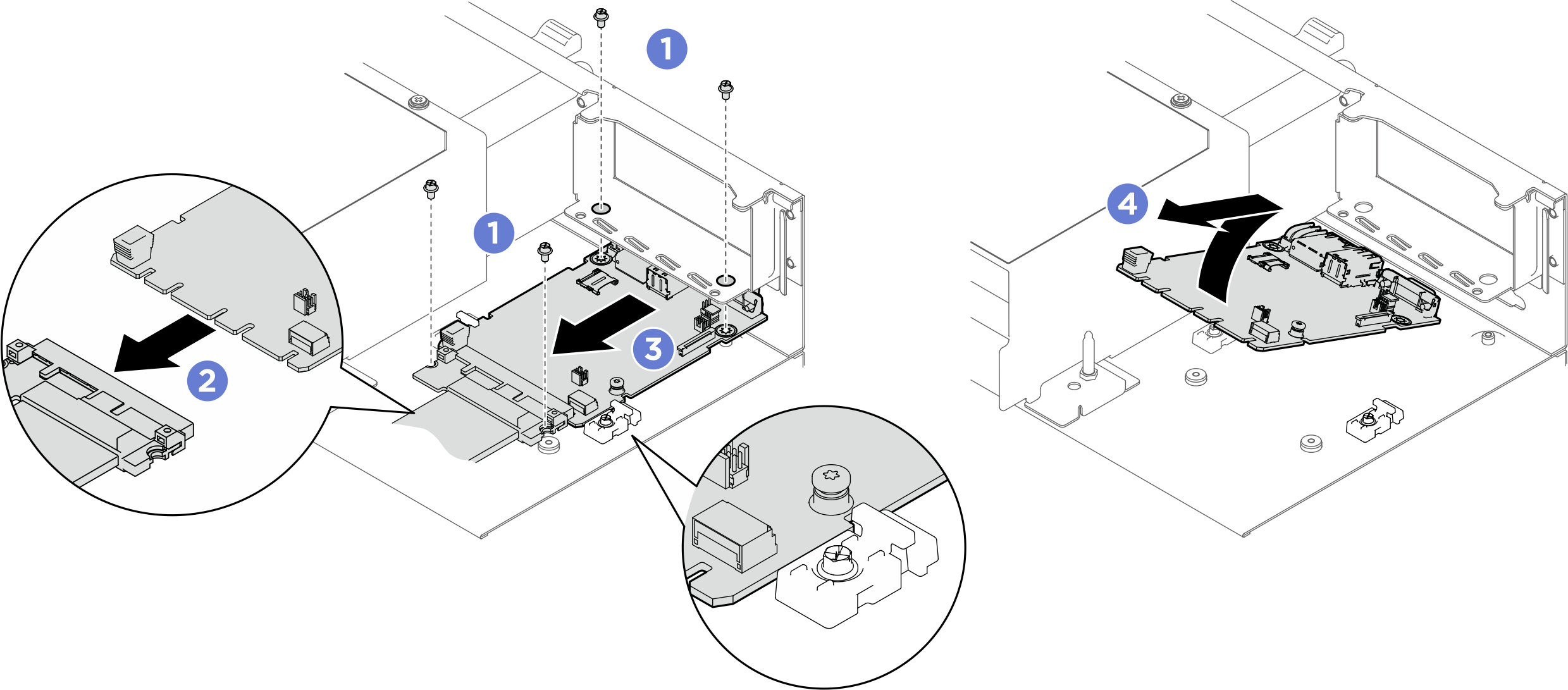

      Figure 2. Removing the system I/O board
      Removing the system I/O board

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
