Remove the foolproof module

Use this information to remove the foolproof module.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Turn off the corresponding DWC tray that you are going to perform the task on.

  • Disconnect the power cords and all external cables from the enclosure.

  • Disconnect the power cords from the enclosure.

Watch the procedure
  • A video of this procedure is available at YouTube.

Procedure

  1. Make preparations for this task.
    1. Remove the tray from the enclosure. See Remove a tray from the enclosure.
    2. Remove the tray cover. See Remove the tray cover.
  2. Remove the rear cross brace.
    Figure 1. Removing the rear cross brace

  3. Place the front drive cable on top of the water loop.

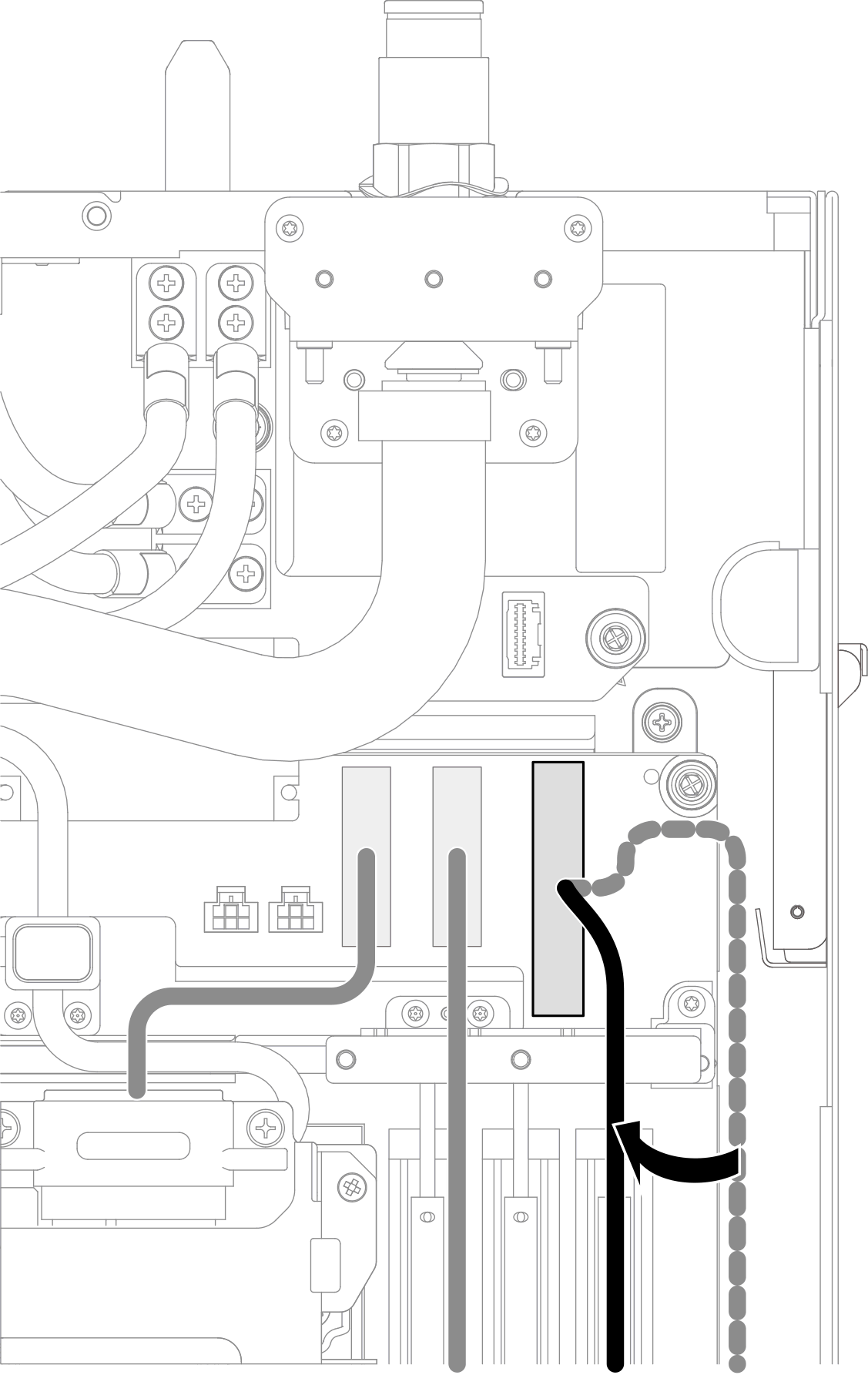

    Figure 2. Placing the cable on top of the water loop.

  4. Remove the foolproof module from the tray.
    1. From outside of the tray, remove two screws from the tray.
    2. Remove the foolproof module from the tray.

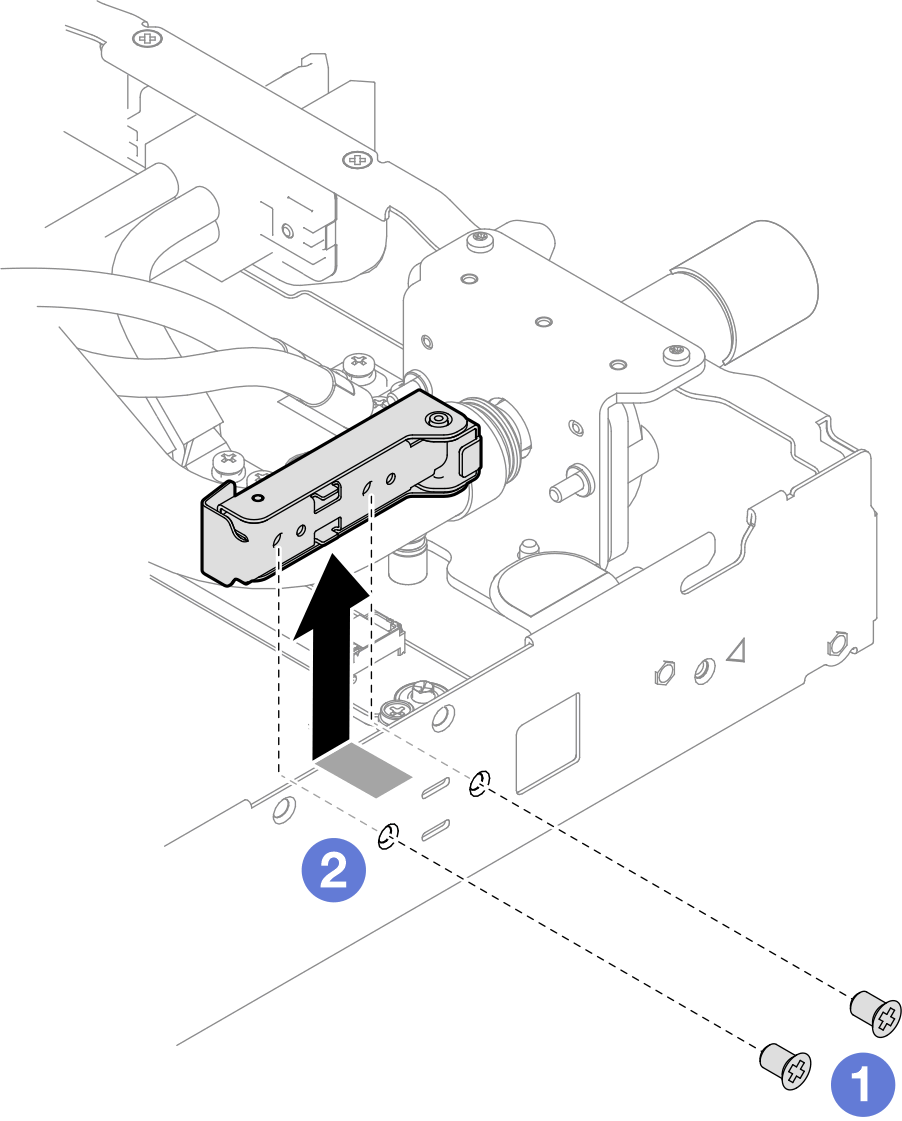

      Figure 3. Removing the foolproof module

After you finish

If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
