Drive backplane connectors

See this section to locate the connectors on the drive backplanes.

8 x 2.5-inch SAS/SATA front backplane​

1 SAS connector

2 Power connector

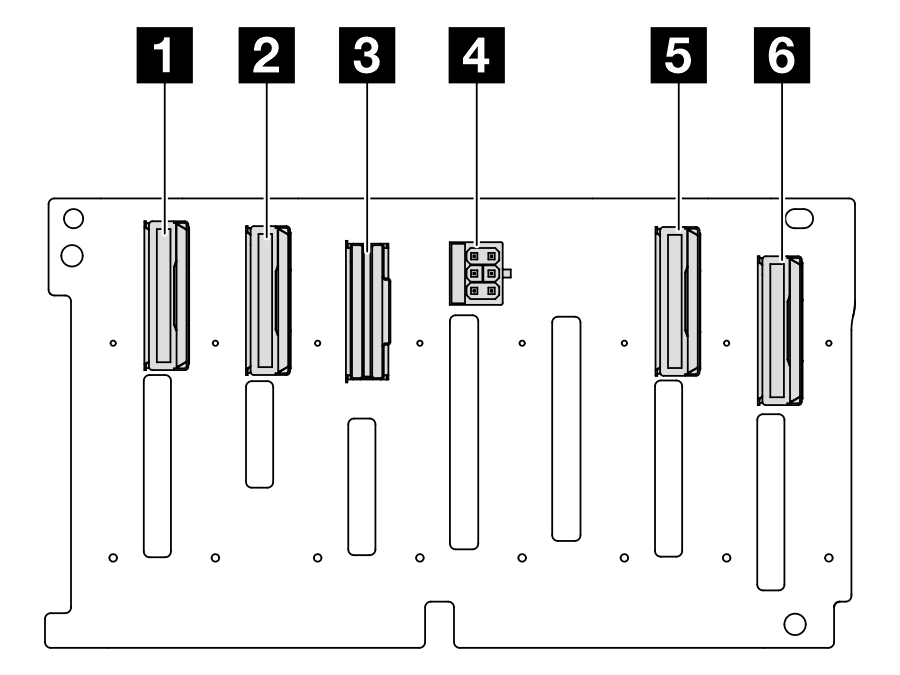

8 x 2.5-inch AnyBay front backplane​

1 NVMe 6-7 connector	2 NVMe 4-5 connector
3 SAS connector	4 Power connector
5 NVMe 2-3 connector	6 NVMe 0-1 connector

E3.S drive backplane​

1 Bay 0	2 Bay 1
3 Bay 2	4 Bay 3
5 Power connector

Rear M.2 backplane​

1 Signal connector

2 Power connector
